22983 (TRX-250) - Toro Trencher (SN: 405700000 - 407739999) Oil Cooler Assembly Parts Diagram

Trencher

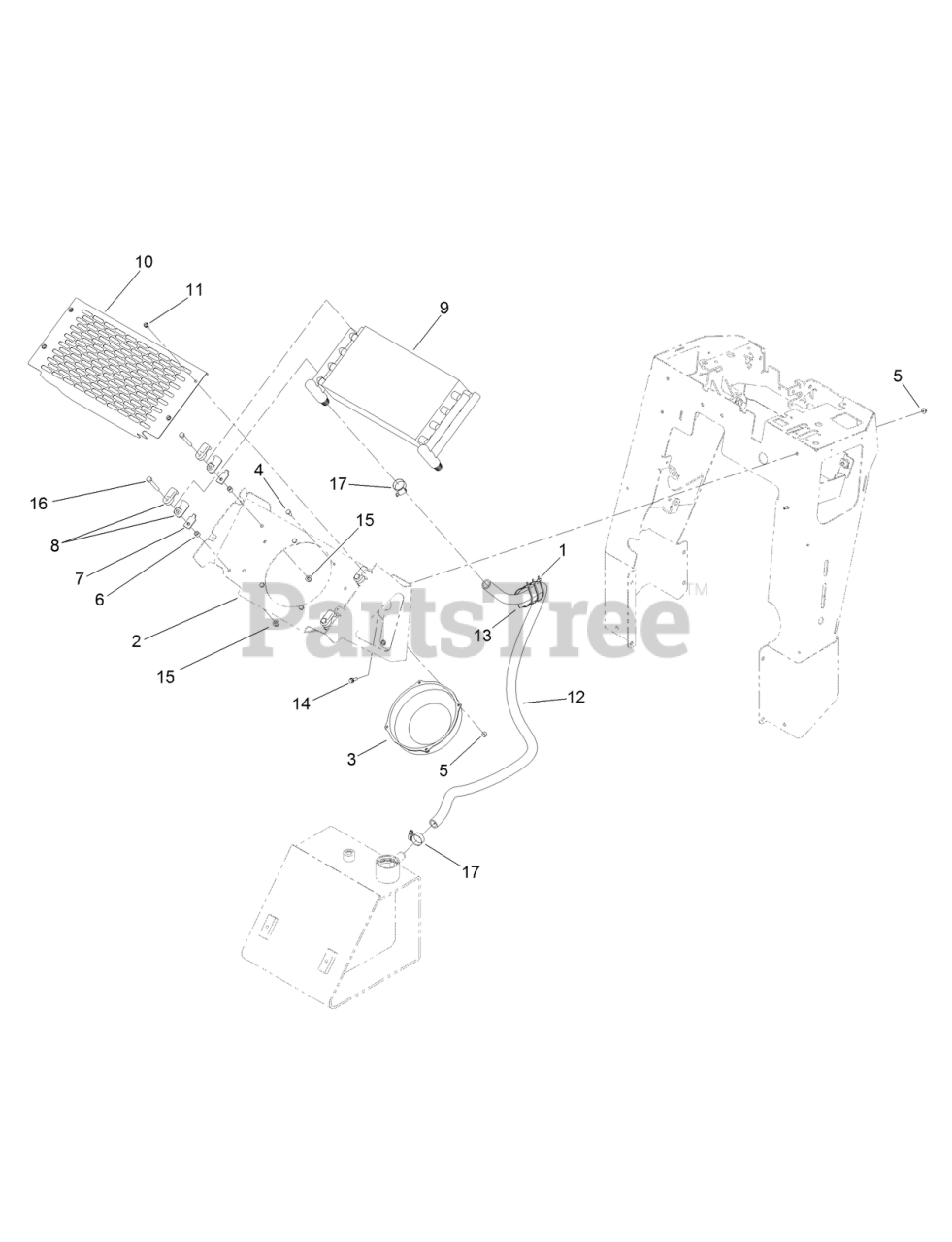

Oil Cooler Assembly Parts Diagram

  • Title

1

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

2

Toro 138-3194-01

MOUNT-COOLER

$346.99

$

Usually ships in 3-6 days

0

3

Toro 104-2809

FAN

$510.99

$

Usually ships in 3-6 days

0

4

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

Toro 105-5723

Spacer-Tube

$5.49

$

Usually ships in 3-6 days

0

7

Toro 131-0642

PLATE-SUPPORT, CLAMP

$12.99

$

Usually ships in 3-6 days

0

8

Toro 131-0733

CLAMP

$5.99

$

Usually ships in 3-6 days

0

9

Toro 117-6320

COOLER-OIL

$1146.99

$

Usually ships in 3-6 days

0

10

Toro 119-4633-01

COVER-COOLER

$173.99

$

Usually ships in 3-6 days

0

11

Toro 32104-95

SCREW-HWH

$0.99

$

Usually ships in 3-6 days

0

12

Toro 138-3198

HOSE-COOLER

$78.99

$

Usually ships in 3-6 days

0

13

Toro AU112950

PROTECTOR-HOSE

$29.99

$

Usually ships in 3-6 days

0

14

Toro 115-5103

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

15

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

16

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

17

Toro 2412-129

CLAMP-HOSE

$4.99

$

In Stock, Qty 7

0
