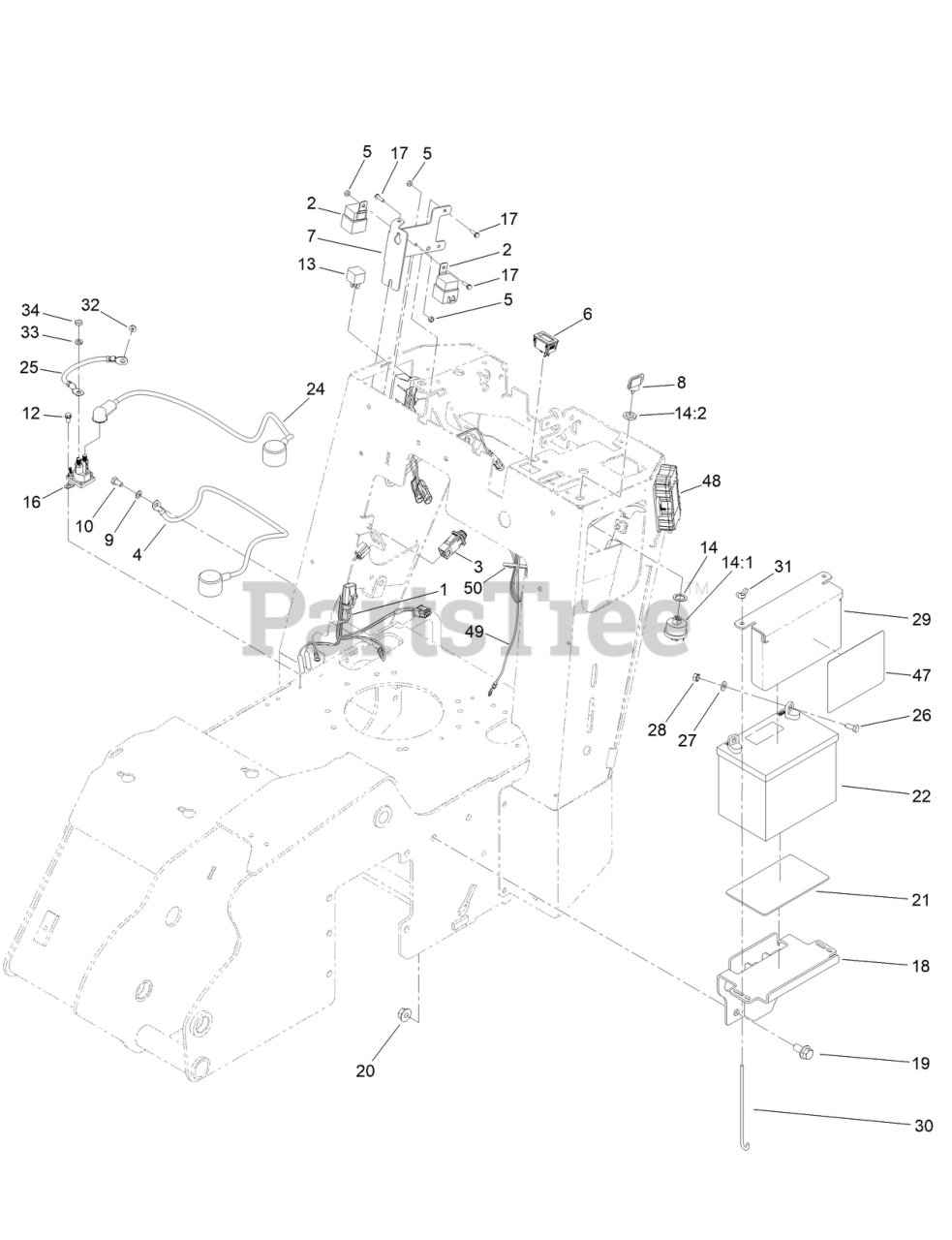

22983 G (TRX-250) - Toro Trencher (SN: 417000000 - 999999999) Electrical Assembly Parts Diagram

Trencher

Electrical Assembly Parts Diagram

  • Title

1

Toro 138-7153

HARNESS-WIRE

$346.99

$

Usually ships in 3-6 days

0

2

Toro 99-7430

RELAY-MINI

$25.99

$

In Stock, only 3 left!

0

3

Toro 100-1268

SWITCH-PLUNGER

$60.99

$

Usually ships in 3-6 days

0

4

Toro 138-3133

CABLE-BATTERY, NEGATIVE

$35.99

$

Usually ships in 3-6 days

0

5

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 120-2244

HOURMETER

$69.99

$

In Stock, only 2 left!

0

7

Toro 138-3104-05

BRACKET-ELECTRICAL

$

$

Currently unavailable

8

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

9

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

10

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

13

Toro 98-7249

RELAY

$22.99

$

In Stock, Qty 7

0

14

Toro 88-9830

See Supercession: 104-2541
(Superseded to 104-2541)

$39.99

$

In Stock, Qty 20+

0

14:1

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

14:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 8

0

16

Toro 117-1197

SOLENOID

$45.99

$

In Stock, Qty 20+

0

17

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, only 2 left!

0

18

Toro 138-3114-05

TRAY-BATTERY [BLK-TXT]

$

$

Currently unavailable

19

Toro 3234-6

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

20

Toro 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

21

Toro 62-4300

PAD-SKID, ANTI

$19.99

$

Usually ships in 3-6 days

0

22

Toro 104-8162

BATTERY-DRY

$

$

Not available

24

Toro 138-3134

CABLE-BATTERY, POSITIVE ASM

$35.99

$

Usually ships in 3-6 days

0

25

Toro 138-3132

CABLE-BATTERY, POSITIVE

$13.99

$

Usually ships in 3-6 days

0

26

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 8

0

29

Toro 115-6621-05

PLATE-HOLD DOWN,BATTERY

$

$

Currently unavailable

30

Toro 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 8

0

31

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 12

0

32

Toro 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

33

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

34

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

47

Toro 137-3882

DECAL-SERVICE

$15.99

$

Usually ships in 3-6 days

0

48

Toro 140-7684

M7L-LITE ZTR KIT ASM

$1031.99

$

Usually ships in 3-6 days

0

49

Toro 122-2112

HARNESS-WIRE, MACHINE ZTR

$124.99

$

Usually ships in 3-6 days

0

50

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0
