22978 - Toro Bore Drive Attachment for TRX Trencher (SN: 313000001 - 313999999) (2013) BORE DRIVE ASSEMBLY Parts Diagram

Bore Drive Attachment for TRX Trencher

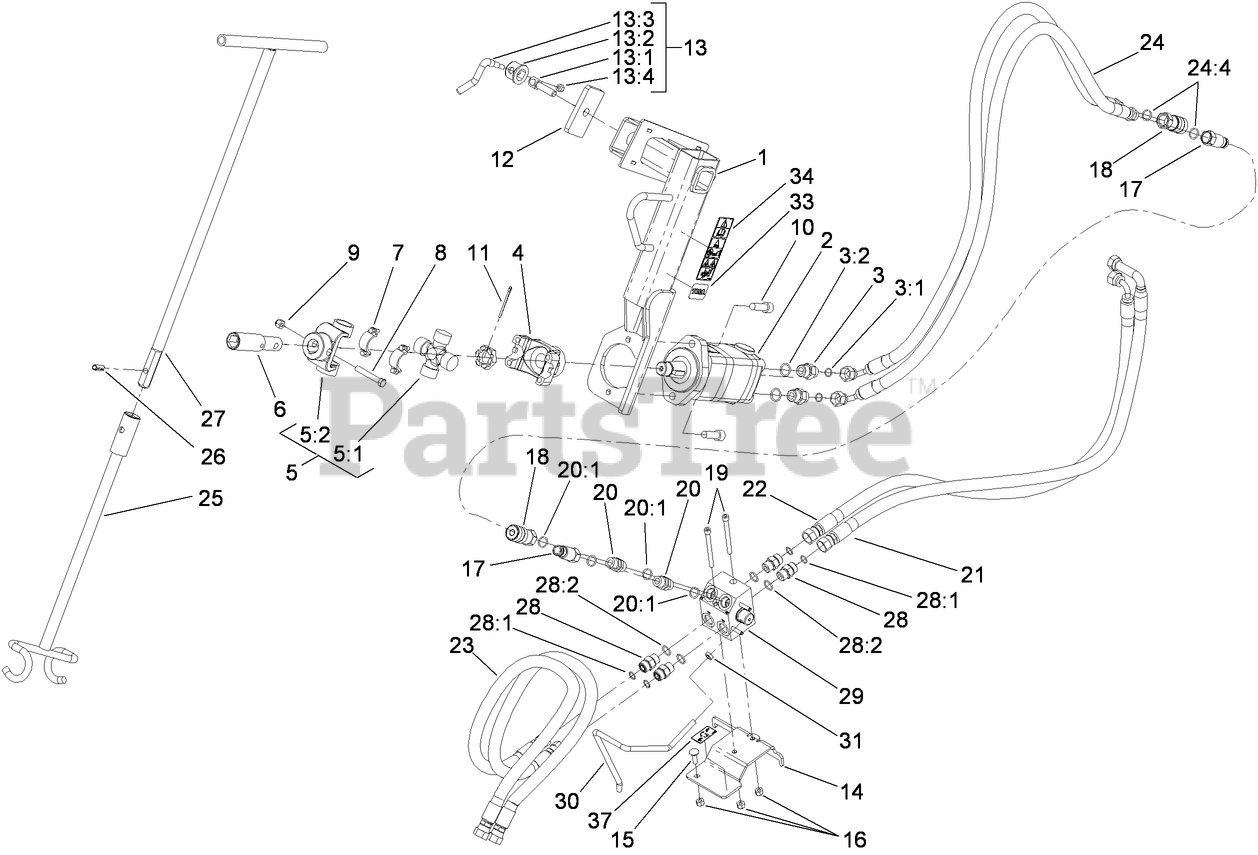

BORE DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 117-4019-03

BORE ASM

$423.99

$

Usually ships in 3-6 days

0

2

Toro 117-4037

MOTOR-HYD

$1856.99

$

Usually ships in 3-6 days

0

3

Toro 340-6

FITTING-STRAIGHT

$20.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

3:2

Toro 237-80

O-RING

$6.99

$

In Stock, only 4 left!

0

4

Toro 104-5917

YOKE-U-BOLT

$

$

Not available

5

Toro 104-5989

YOKE ASM
(Superseded to 121-4560)

$413.99

$

Usually ships in 3-6 days

0

5:1

Toro 99-4300

U-JOINT

$131.99

$

Usually ships in 3-6 days

0

5:2

Toro 104-6105

YOKE-U-JOINT
(Superseded to 121-4560)

$413.99

$

Usually ships in 3-6 days

0

6

Toro 115-3897

COUPLER

$368.99

$

Usually ships in 3-6 days

0

7

Toro 104-5995

Bearing Strap Kit

$45.99

$

Usually ships in 3-6 days

0

8

Toro 323-47

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 3274-4

SCREW-HSH

$2.99

$

In Stock, Qty 10

0

11

Toro 3272-15

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

12

Toro 117-4017-03

PLATE-CLAMP

$12.99

$

Usually ships in 3-6 days

0

13

Toro 107-1664

LEVER ASM

$75.99

$

Usually ships in 3-6 days

0

13:1

Toro 106-3239

Screw-Lock

$52.99

$

Usually ships in 3-6 days

0

13:2

Toro 107-1644

CAP-LOCK

$38.99

$

In Stock, only 2 left!

0

13:3

Toro 106-3241

Lever-Lock
(Superseded to 107-1664)

$75.99

$

Usually ships in 3-6 days

0

13:4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 117-4049-01

PLATE-MANIFOLD

$42.99

$

Usually ships in 3-6 days

0

15

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 104-6114

NIPPLE-CONNECTOR

$142.99

$

Usually ships in 3-6 days

0

17:1

Toro 107-9301

SEAL KIT

Note: Not illustrated

$97.99

$

Usually ships in 3-6 days

0

18

Toro 104-6115

COUPLER-FEMALE

$285.99

$

Usually ships in 3-6 days

0

19

Toro 117-9935

SCREW-HSH

$6.99

$

Usually ships in 3-6 days

0

20

Toro 95-3209

FITTING-THREAD, STRAIGHT

$27.99

$

Usually ships in 3-6 days

0

20:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

21

Toro 117-9936

HYD HOSE ASM

$215.99

$

Usually ships in 3-6 days

0

22

Toro 117-9937

HYD HOSE ASM

$198.99

$

Usually ships in 3-6 days

0

23

Toro 117-9938

HYD HOSE ASM

$

$

Not available

24

Toro 117-9939

HYD HOSE ASM

$

$

Not available

24:4

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

25

Toro 104-5988-03

TOOL-GUIDE, ROD

$366.99

$

Usually ships in 3-6 days

0

26

Toro 32121-41

PIN-ROLL

$7.99

$

Usually ships in 3-6 days

0

27

Toro 106-7740-03

HANDLE-TOOL, GUIDE

$381.99

$

Usually ships in 3-6 days

0

28

Toro 340-4

FITTING-STRAIGHT

$12.99

$

In Stock, only 3 left!

0

28:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

28:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

29

Toro 117-9909

HYD MANIFOLD ASM

$895.99

$

Usually ships in 3-6 days

0

30

Toro 117-9934

HANDLE-MANIFOLD

$169.99

$

Usually ships in 3-6 days

0

31

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

33

Toro 95-7896

DECAL

$21.99

$

Usually ships in 3-6 days

0

34

Toro 117-9952

DECAL-DANGER

$16.99

$

Usually ships in 3-6 days

0

37

Toro 117-8855

DECAL-INSTRUCTIONAL

$16.99

$

Usually ships in 3-6 days

0
