22976 - Toro 3ft Trencher Boom and Bar for Dingo and Dingo TX TRENCHER BOOM ASSEMBLY Parts Diagram

3ft Trencher Boom and Bar for Dingo and Dingo TX

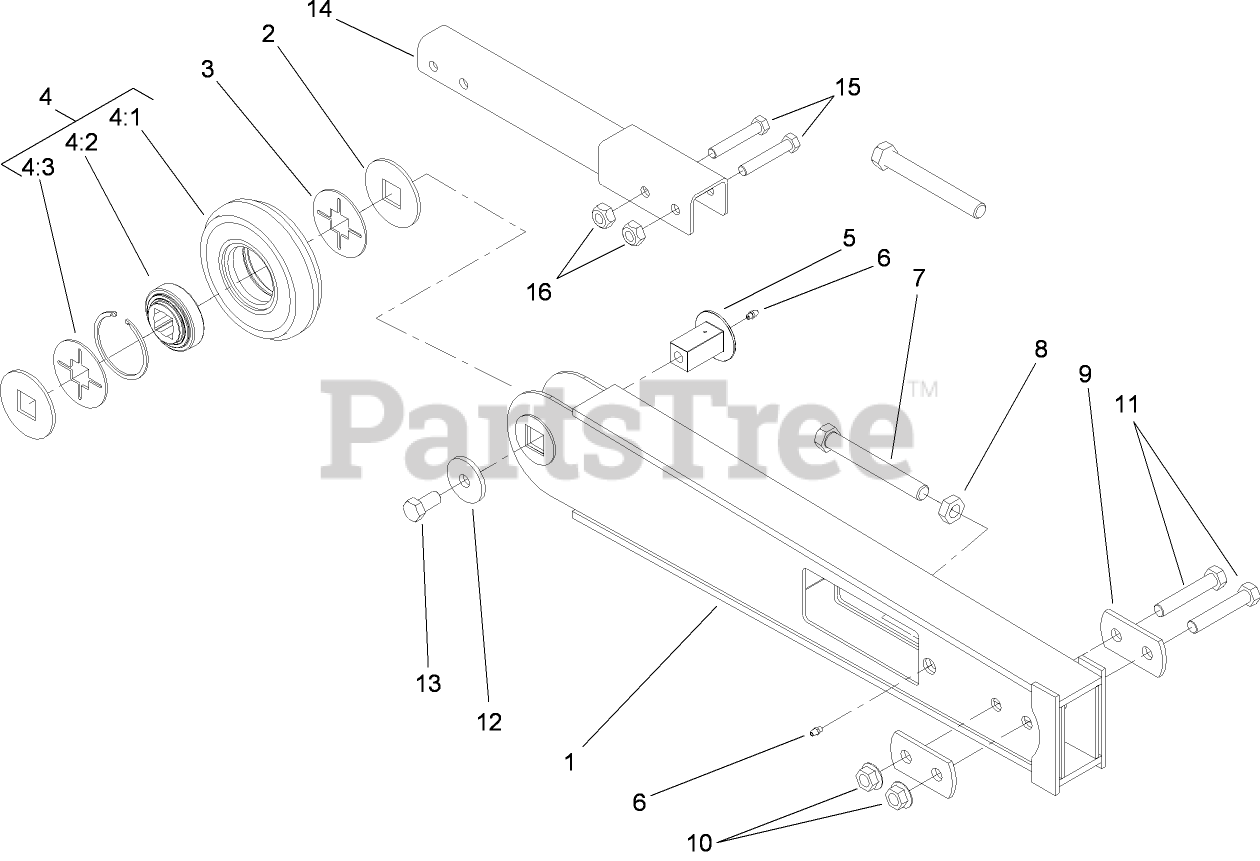

TRENCHER BOOM ASSEMBLY Parts Diagram

  • Title

1

Toro 115-0781-03

BOOM ASM

$1162.99

$

Usually ships in 3-6 days

0

2

Toro 104-1942

CAP-ROLLER

$59.99

$

In Stock, only 2 left!

0

3

Toro 104-1943

SPACER-ROLLER

$76.99

$

In Stock, only 2 left!

0

4

Toro 107-9325

TRENCHER ROLLER ASM

$571.99

$

In Stock, only 1 left!

0

4:1

Toro 104-1951

ROLLER-NOSE

$307.99

$

Usually ships in 3-6 days

0

4:2

Toro 104-1995

BEARING

$323.99

$

In Stock, only 1 left!

0

4:3

Toro 104-1945

RING-RETAINING

$22.99

$

In Stock, only 2 left!

0

5

Toro 108-5549

AXLE-ROLLER

$108.99

$

In Stock, only 1 left!

0

6

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

7

Toro 104-1941

BOLT-ADJUSTMENT

$84.99

$

In Stock, only 1 left!

0

8

Toro 104-1944

NUT-JAM

$13.99

$

In Stock, only 1 left!

0

9

Toro 104-1983-03

PLATE-SUPPORT

$47.99

$

Usually ships in 3-6 days

0

10

Toro 32128-50

NUT-FLANGE

$5.49

$

In Stock, only 4 left!

0

11

Toro 327-14

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

12

Toro 104-5901

WASHER

$19.99

$

In Stock, only 1 left!

0

13

Toro 327-3

SCREW-HH

$2.49

$

In Stock, only 1 left!

0

14

Toro 114-3005-03

SAFETY BAR EXTENSION ASM
(Superseded to 117-3443-03)

$251.99

$

Usually ships in 3-6 days

0

15

Toro 325-12

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

16

Toro 32146-13

NUT-HEX

$4.49

$

In Stock, only 4 left!

0
