22974 (TRX-26) - Toro Trencher (SN: 402000000 - 404709999) Engine, Muffler and Fuel Line Assembly Parts Diagram

Trencher

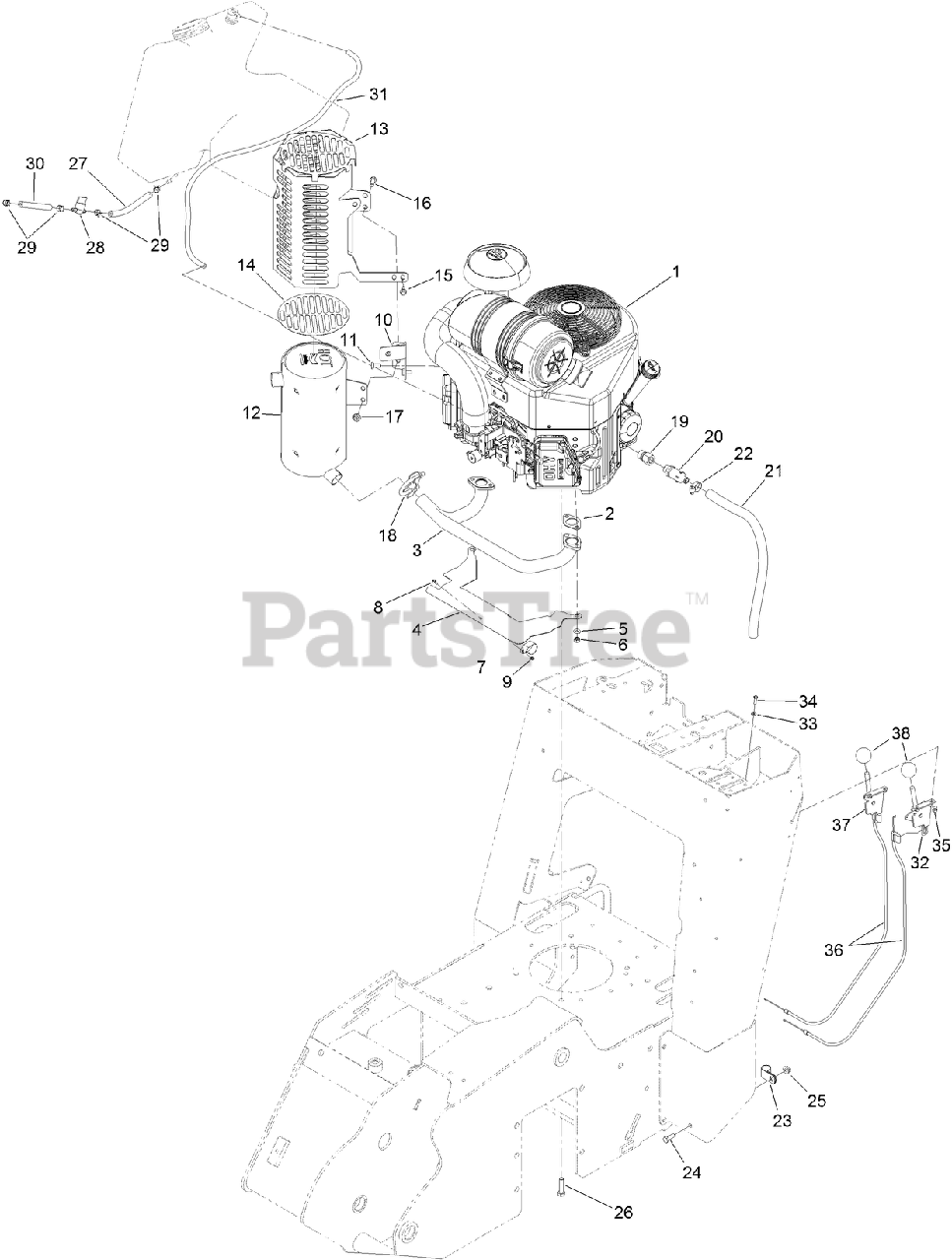

Engine, Muffler and Fuel Line Assembly Parts Diagram

  • Title

1

Toro 117-6305

ENGINE-KAWASAKI, FX730V
(Superseded to 133-8077)

$

$

Not available

2

Toro 1-653313

GASKET-EXHAUST

$5.49

$

Usually ships in 3-6 days

0

3

Toro 120-7535

MANIFOLD, MUFFLER

$116.99

$

Usually ships in 3-6 days

0

4

Toro 115-9227

PLATE-SHIELD, HEAT

$107.99

$

Usually ships in 3-6 days

0

5

Toro 115-6496

WASHER-SPRING
(Superseded to 114-3550)

$1.49

$

In Stock, Qty 17

0

6

Toro 115-6611

NUT-HEX

$4.99

$

Usually ships in 3-6 days

0

7

Toro 115-6488

CLAMP

$5.99

$

Usually ships in 3-6 days

0

8

Toro 115-6494

SCREW-PAN

$1.49

$

Usually ships in 3-6 days

0

9

Toro 115-6495

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

10

Toro 115-9233-03

BRACKET-MOUNT, MUFFLER

$25.99

$

Usually ships in 3-6 days

0

11

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, Qty 10

0

12

Toro 120-7536

MUFFLER

$234.99

$

Usually ships in 3-6 days

0

13

Toro 131-0602-03

GUARD-MUFFLER
(Superseded to 137-4879-03)

$

$

Not available

14

Toro 131-0604

FOIL-GUARD

$11.99

$

Usually ships in 3-6 days

0

15

Toro 33103-016

SCREW-HHF

$6.49

$

In Stock, Qty 8

0

16

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

17

Toro 112-2844

NUT-HF

$1.49

$

In Stock, Qty 9

0

18

Toro 2112-11

CLAMP-MUFFLER

$8.49

$

In Stock, only 2 left!

0

19

Toro 103-1966

ADAPTER

$19.99

$

In Stock, Qty 5

0

20

Toro 92-6877

VALVE-DRAIN, OIL

$43.99

$

In Stock, only 3 left!

0

21

Toro 106-5709

HOSE-VENT

$29.99

$

Usually ships in 3-6 days

0

22

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

23

Toro 2412-81

CLAMP-R

$4.99

$

Usually ships in 3-6 days

0

24

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

26

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 109-0306

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

28

Toro 1-603770

VALVE-FUEL

$8.99

$

In Stock, Qty 7

0

29

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

30

Toro 109-0295

HOSE-FUEL

$3.49

$

Usually ships in 3-6 days

0

31

Toro 117-6396

HOSE-VENT, TANK

$13.99

$

Usually ships in 3-6 days

0

32

Toro 110-5547

LEVER-CONTROL

$42.99

$

In Stock, Qty 5

0

33

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

34

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 20+

0

35

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

36

Toro 115-1211

CABLE-CONTROL

$29.99

$

In Stock, only 2 left!

0

37

Toro 108-9730

LEVER-CONTROL

$44.99

$

In Stock, Qty 7

0

38

Toro 233-42

KNOB

$14.99

$

In Stock, Qty 5

0
