22974 (TRX-26) - Toro Trencher (SN: 315000001 - 315999999) (2015) TRENCHER HEAD AND AUGER ASSEMBLY Parts Diagram

Trencher

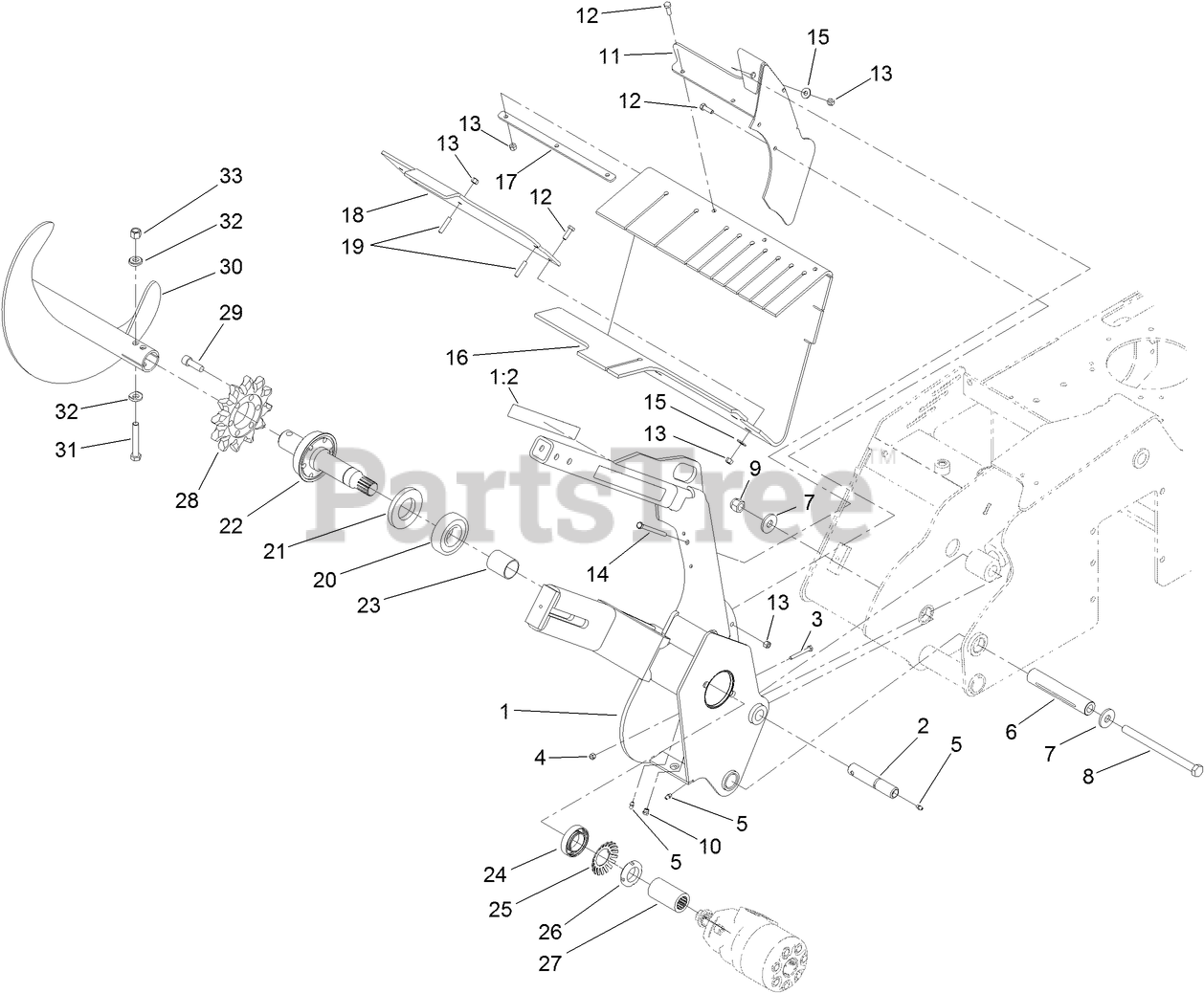

TRENCHER HEAD AND AUGER ASSEMBLY Parts Diagram

  • Title

1

Toro 117-6423

TRENCHER HEAD ASM

$2801.99

$

Usually ships in 3-6 days

0

1:2

Toro 99-9952

DECAL-DANGER

$24.99

$

Usually ships in 3-6 days

0

2

Toro 120-7352

PIN-PIVOT

$86.99

$

In Stock, only 1 left!

0

3

Toro 321-18

SCREW-HH

$2.49

$

In Stock, only 3 left!

0

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 18

0

5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

6

Toro 121-4571

SPACER-PIVOT

$257.99

$

Usually ships in 3-6 days

0

7

Toro 104-9216

WASHER-HARDENED

$6.99

$

In Stock, only 2 left!

0

8

Toro 117-6327

BOLT-HH

$47.99

$

In Stock, only 1 left!

0

9

Toro 3296-53

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 302-34

FITTING-LUBE

$11.99

$

Usually ships in 3-6 days

0

11

Toro 115-1279-03

BRACKET-SHIELD

$221.99

$

Usually ships in 3-6 days

0

12

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 322-23

SCREW-HH
(Superseded to 321-9)

$4.99

$

In Stock, only 2 left!

0

15

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 117-6317

SHIELD-DIRT

$451.99

$

Usually ships in 3-6 days

0

17

Toro 115-4001-03

PLATE-STRAP, SHIELD

$26.99

$

Usually ships in 3-6 days

0

18

Toro 117-6316-03

BAR-CLAMP

$93.99

$

Usually ships in 3-6 days

0

19

Toro 115-4049

SCREW-HSH

$6.49

$

In Stock, only 1 left!

0

20

Toro 106-8871

BEARING-BALL

$37.99

$

In Stock, only 1 left!

0

21

Toro 114-2955

SEAL-GREASE

$93.99

$

In Stock, only 1 left!

0

22

Toro 117-6308

SHAFT-TRENCHER

$799.99

$

Usually ships in 3-6 days

0

23

Toro 112-4979

SPACER

$16.99

$

In Stock, only 1 left!

0

24

Toro 111199

BEARING-BALL

$125.99

$

In Stock, only 3 left!

0

25

Toro 114-2956

LOCKWASHER-BEARING

$39.99

$

In Stock, only 1 left!

0

26

Toro 88-1450

LOCKNUT-BEARING

$48.99

$

In Stock, only 1 left!

0

27

Toro 117-6315

COLLAR-SPLINED

$191.99

$

In Stock, only 1 left!

0

28

Toro 104-1964

SPROCKET-TRENCHER

$307.99

$

In Stock, only 1 left!

0

29

Toro 3274-4

SCREW-HSH

$2.99

$

In Stock, Qty 10

0

30

Toro 117-8852-03

AUGER-TRENCHER
(Superseded to 137-3737-03)

$430.99

$

Usually ships in 3-6 days

0

31

Toro 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0

32

Toro 117-3479

WASHER-SADDLE

$17.99

$

In Stock, only 4 left!

0

33

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0
