22974 (TRX-26) - Toro Trencher (SN: 315000001 - 315999999) (2015) OIL COOLER ASSEMBLY Parts Diagram

Trencher

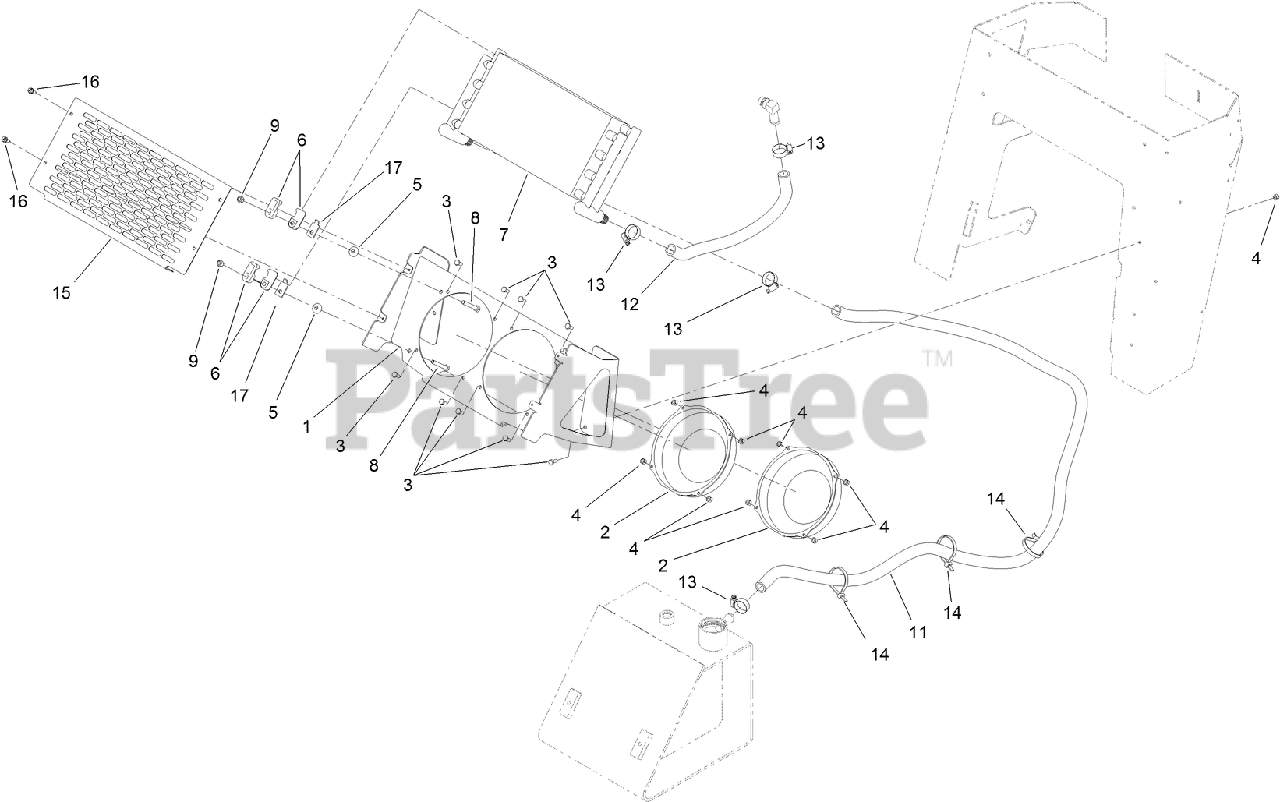

OIL COOLER ASSEMBLY Parts Diagram

  • Title

1

Toro 115-9240-01

MOUNT-COOLER

$271.99

$

Usually ships in 3-6 days

0

2

Toro 120-7390

FAN

$398.99

$

Usually ships in 3-6 days

0

3

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 115-5118

WASHER

$35.99

$

Usually ships in 3-6 days

0

6

Toro 131-0733

CLAMP

$5.99

$

Usually ships in 3-6 days

0

7

Toro 117-6320

COOLER-OIL

$1146.99

$

Usually ships in 3-6 days

0

8

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 115-1207

HOSE-RETURN

$185.99

$

Usually ships in 3-6 days

0

12

Toro 117-3966

HOSE-COOLER

$32.99

$

Usually ships in 3-6 days

0

13

Toro 2412-129

CLAMP-HOSE

$5.49

$

In Stock, Qty 7

0

14

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

15

Toro 119-4633-01

COVER-COOLER

$173.99

$

Usually ships in 3-6 days

0

16

Toro 32104-95

SCREW-HWH

$0.99

$

Usually ships in 3-6 days

0

17

Toro 131-0642

PLATE-SUPPORT, CLAMP

$12.99

$

Usually ships in 3-6 days

0
