22974 (TRX-26) - Toro Trencher (SN: 315000001 - 315999999) (2015) CARBURETOR ASSEMBLY Parts Diagram

Trencher

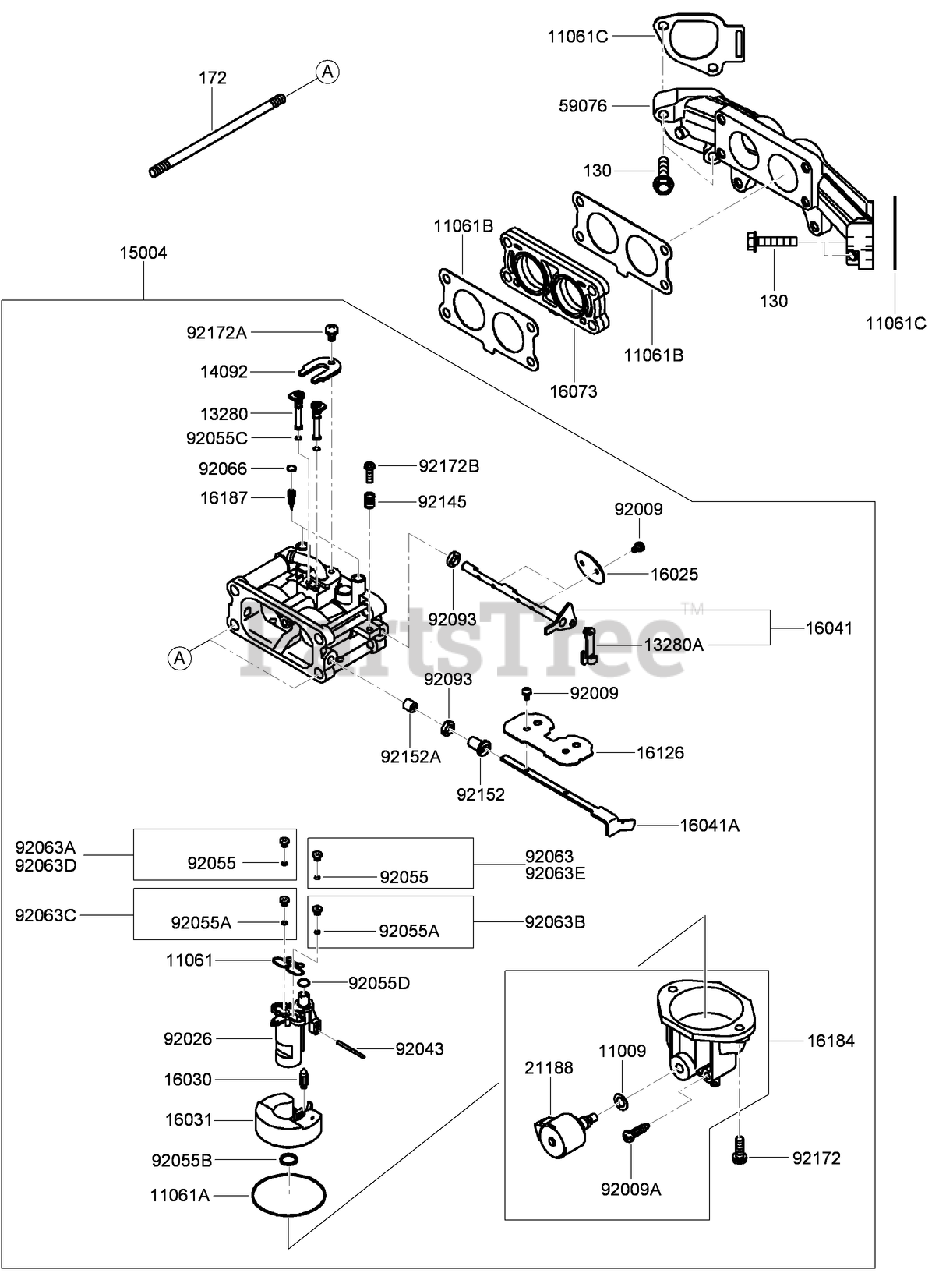

CARBURETOR ASSEMBLY Parts Diagram

  • Title

130

Toro 119-5940

BOLT-FLANGED (6X30)

$2.99

$

Usually ships in 3-6 days

0

172

Toro 119-5941

BOLT-STUD (6X115)

$6.49

$

Usually ships in 3-6 days

0

11009

Toro 119-5895

GASKET

$3.49

$

Usually ships in 3-6 days

0

11061

Toro 119-5896

GASKET

$19.99

$

Usually ships in 3-6 days

0

11061A

Toro 119-5897

GASKET

$6.49

$

Usually ships in 3-6 days

0

11061B

Toro 119-5898

GASKET-CARBURETOR/MANIFOLD

$5.49

$

In Stock, only 3 left!

0

11061C

Toro 119-5899

GASKET-MANIFOLD

$4.49

$

Usually ships in 3-6 days

0

13280

Toro 119-5901

HOLDER

$21.99

$

Usually ships in 3-6 days

0

13280A

Toro 119-5902

HOLDER

$21.99

$

Usually ships in 3-6 days

0

14092

Toro 119-5903

COVER

$16.99

$

Usually ships in 3-6 days

0

15004

Toro 119-5904

CARBURETOR ASM

$1113.99

$

Usually ships in 3-6 days

0

16025

Toro 119-5905

VALVE-THROTTLE

$67.99

$

Usually ships in 3-6 days

0

16030

Toro 119-5906

VALVE-FLOAT

$67.99

$

Usually ships in 3-6 days

0

16031

Toro 119-5907

FLOAT

$77.99

$

Usually ships in 3-6 days

0

16041

Toro 119-5908

CARBURETOR THROTTLE SHAFT ASM

$97.99

$

Usually ships in 3-6 days

0

16041A

Toro 119-5909

SHAFT-CHOKE, CARBURETOR

$101.99

$

Usually ships in 3-6 days

0

16073

Toro 119-5910

INSULATOR

$23.99

$

Usually ships in 3-6 days

0

16126

Toro 119-5911

VALVE

$13.99

$

Usually ships in 3-6 days

0

16184

Toro 119-5912

FLOAT CHAMBER ASM

$539.99

$

Usually ships in 3-6 days

0

16187

Toro 119-5913

NEEDLE-JET

$35.99

$

Usually ships in 3-6 days

0

21188

Toro 119-5914

SOLENOID

$463.99

$

Usually ships in 3-6 days

0

59076

Toro 119-5915

MANIFOLD-INTAKE

$311.99

$

Usually ships in 3-6 days

0

92009

Toro 119-5916

SCREW

$1.99

$

Usually ships in 3-6 days

0

92009A

Toro 119-5917

SCREW-DRAIN

$4.49

$

Usually ships in 3-6 days

0

92026

Toro 119-5918

SPACER

$23.99

$

Usually ships in 3-6 days

0

92043

Toro 119-5919

PIN-FLOAT

$5.49

$

Usually ships in 3-6 days

0

92055

Toro 119-5920

O-RING

$3.49

$

Usually ships in 3-6 days

0

92055A

Toro 119-5921

O-RING

$3.49

$

Usually ships in 3-6 days

0

92055B

Toro 119-5921

O-RING

$3.49

$

Usually ships in 3-6 days

0

92055C

Toro 119-5923

O-RING

$52.99

$

Usually ships in 3-6 days

0

92055D

Toro 119-5924

O-RING

$6.49

$

Usually ships in 3-6 days

0

92063

Toro 119-5926

JET-MAIN (NO. 108)

$82.99

$

Usually ships in 3-6 days

0

92063A

Toro 119-5927

JET-MAIN (NO. 104)

$82.99

$

Usually ships in 3-6 days

0

92063B

Toro 119-5928

JET-MAIN (NO. 114)

$53.99

$

Usually ships in 3-6 days

0

92063C

Toro 119-5929

JET-MAIN (NO. 110)

$23.99

$

Usually ships in 3-6 days

0

92063D

Toro 119-5930

JET-MAIN (NO. 107)

$23.99

$

Usually ships in 3-6 days

0

92063E

Toro 119-5931

JET-MAIN (NO. 111)

$23.99

$

Usually ships in 3-6 days

0

92066

Toro 119-5932

PLUG-EXPANSION

$21.99

$

Usually ships in 3-6 days

0

92093

Toro 119-5933

SEAL (6.9)

$6.49

$

Usually ships in 3-6 days

0

92145

Toro 119-5934

SPRING

$4.49

$

Usually ships in 3-6 days

0

92152

Toro 119-5935

COLLAR

$7.99

$

Usually ships in 3-6 days

0

92152A

Toro 119-5936

COLLAR

$5.49

$

Usually ships in 3-6 days

0

92172

Toro 119-5937

SCREW (M5)

$4.49

$

Usually ships in 3-6 days

0

92172A

Toro 119-5938

SCREW (M4)

$4.49

$

Usually ships in 3-6 days

0

92172B

Toro 119-5939

SCREW-ADJUST, THROTTLE

$4.49

$

Usually ships in 3-6 days

0
