22974 (TRX-26) - Toro Trencher (SN: 315000001 - 315999999) (2015) AIR FILTER AND MUFFLER ASSEMBLY Parts Diagram

Trencher

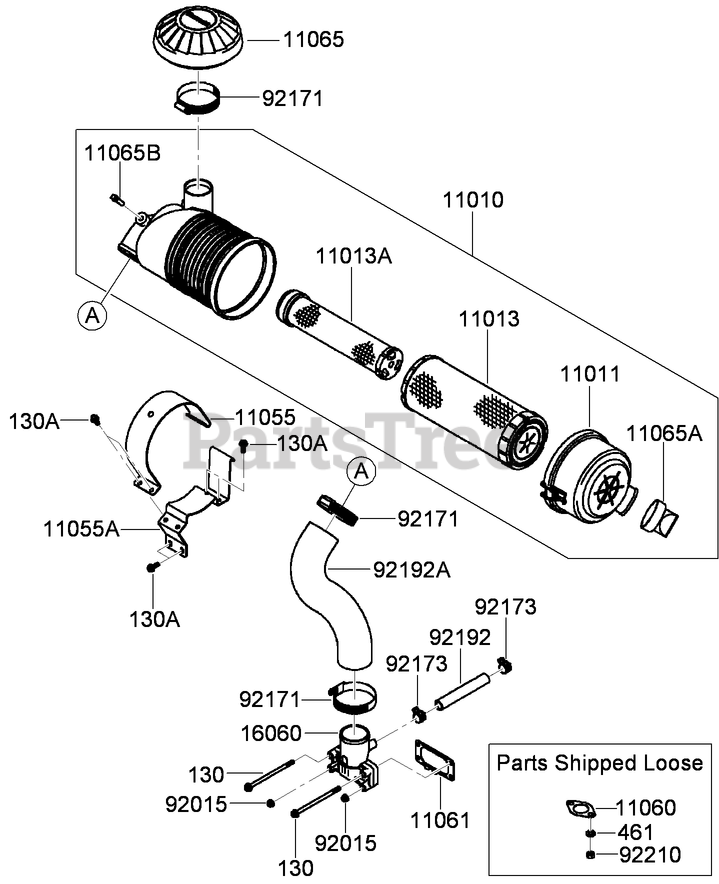

AIR FILTER AND MUFFLER ASSEMBLY Parts Diagram

  • Title

130

Toro 119-5960

BOLT-FLANGED (6X110)

$9.49

$

Usually ships in 3-6 days

0

130A

Toro 119-5961

BOLT-FLANGED (6X16)

$2.99

$

Usually ships in 3-6 days

0

461

Toro 119-5962

WASHER-SPRING (8MM)

$3.49

$

Usually ships in 3-6 days

0

11010

Toro 119-5942

AIR FILTER ASM

$336.99

$

Usually ships in 3-6 days

0

11011

Toro 119-5943

CASE-FILTER, AIR

$125.99

$

Usually ships in 3-6 days

0

11013

Toro 119-5944

ELEMENT-FILTER, AIR (OUTER)

$47.99

$

Usually ships in 3-6 days

0

11013A

Toro 119-5945

ELEMENT-FILTER, AIR (INNER)

$53.99

$

In Stock, Qty 8

0

11055

Toro 119-5946

BRACKET

$27.99

$

Usually ships in 3-6 days

0

11055A

Toro 119-5947

BRACKET

$46.99

$

In Stock, only 1 left!

0

11060

Toro 119-5948

GASKET-MUFFLER
(Superseded to 117-8858)

$4.99

$

Usually ships in 3-6 days

0

11061

Toro 119-5949

GASKET

$9.49

$

Usually ships in 3-6 days

0

11065

Toro 119-5950

CAP

$87.99

$

Usually ships in 3-6 days

0

11065A

Toro 119-5951

CAP

$39.99

$

Usually ships in 3-6 days

0

11065B

Toro 119-5952

CAP

$12.99

$

Usually ships in 3-6 days

0

16060

Toro 119-5953

PIPE-INTAKE

$101.99

$

In Stock, only 1 left!

0

92015

Toro 119-5954

NUT

$12.99

$

In Stock, only 1 left!

0

92171

Toro 119-5955

CLAMP

$13.99

$

In Stock, only 1 left!

0

92173

Toro 119-5956

CLAMP

$5.49

$

Usually ships in 3-6 days

0

92192

Toro 119-5957

TUBE (12.6X18.6X118)

$4.99

$

Usually ships in 3-6 days

0

92192A

Toro 119-5958

TUBE

$156.99

$

In Stock, only 1 left!

0

92210

Toro 119-5959

NUT (M8)

$4.99

$

Usually ships in 3-6 days

0
