22974 (TRX-26) - Toro Trencher (SN: 314000001 - 314999999) (2014) ENGINE ASSEMBLY Parts Diagram

Trencher

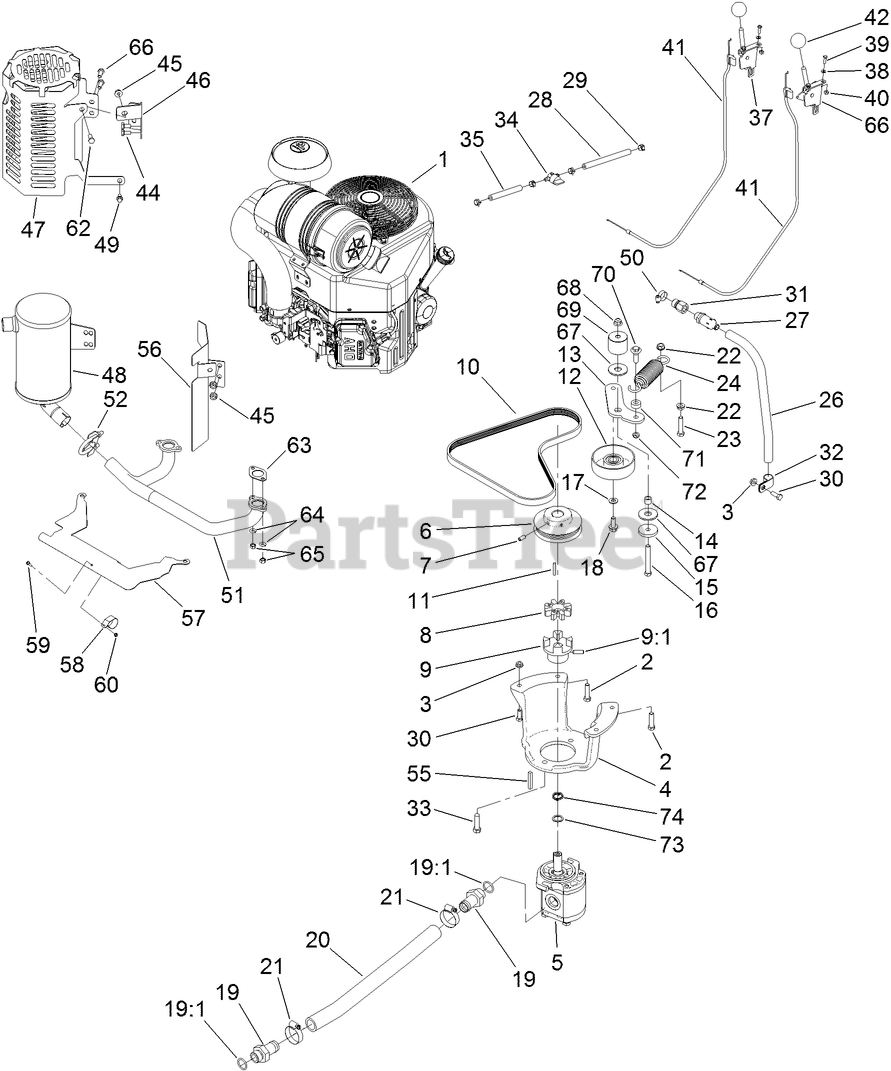

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 117-6305

ENGINE-KAWASAKI, FX730V
(Superseded to 133-8077)

$

$

Not available

2

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

4

Toro 115-1480-03

MOUNT-PUMP

$225.99

$

Usually ships in 3-6 days

0

5

Toro 117-6307

GEAR PUMP ASM

$1216.99

$

Usually ships in 3-6 days

0

6

Toro 114-8559-03

PULLEY-ENGINE
(Superseded to 145-3291)

$59.99

$

Usually ships in 0 days

0

7

Toro 3246-6

SCREW-SET, HSH

$7.49

$

In Stock, only 2 left!

0

8

Toro 93-8827

COUPLER-SPIDER

$48.99

$

Usually ships in 3-6 days

0

9

Toro 114-2933

COUPLER-FLEX

$123.99

$

Usually ships in 3-6 days

0

9:1

Toro 100-7594

SCREW-SET

$2.99

$

Usually ships in 3-6 days

0

10

Toro 114-2991

BELT-V

$60.99

$

In Stock, only 1 left!

0

11

Toro 608006

KEY-SQUARE

$5.49

$

Usually ships in 3-6 days

0

12

Toro 95-8802

PULLEY-IDLER

$77.99

$

In Stock, only 1 left!

0

13

Toro 125-0252

ARM-IDLER

$79.99

$

Usually ships in 3-6 days

0

14

Toro 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

15

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, only 2 left!

0

16

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

18

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

19

Toro 99-3017

FITTING

$91.99

$

In Stock, only 1 left!

0

19:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

20

Toro 114-2917

HOSE-SUCTION

$96.99

$

In Stock, only 1 left!

0

21

Toro 2412-111

CLAMP

$4.99

$

Usually ships in 3-6 days

0

22

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 121-4523

SPRING-EXTENSION

$42.99

$

In Stock, only 2 left!

0

26

Toro 106-5709

HOSE-VENT

$27.99

$

Usually ships in 3-6 days

0

27

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 1 left!

0

28

Toro 109-0306

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

29

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

30

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

31

Toro 103-1966

Adapter

$18.99

$

In Stock, only 1 left!

0

32

Toro 2412-81

CLAMP-R

$4.49

$

Usually ships in 3-6 days

0

33

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

34

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

35

Toro 109-0295

HOSE-FUEL

$3.49

$

Usually ships in 3-6 days

0

37

Toro 108-9730

LEVER-CONTROL

$42.99

$

In Stock, only 1 left!

0

38

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

39

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 10

0

40

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

41

Toro 115-1211

CABLE-CONTROL

$27.99

$

In Stock, only 2 left!

0

42

Toro 233-42

KNOB

$13.99

$

In Stock, only 4 left!

0

44

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

45

Toro 112-2844

NUT-HF

$1.49

$

In Stock, Qty 9

0

46

Toro 115-9233-03

BRACKET-MOUNT, MUFFLER

$23.99

$

Usually ships in 3-6 days

0

47

Toro 115-9234-03

SHIELD-MUFFLER

$277.99

$

Usually ships in 3-6 days

0

48

Toro 117-6319

MUFFLER

$451.99

$

Usually ships in 3-6 days

0

49

Toro 33103-016

SCREW-HHF

$5.99

$

In Stock, Qty 13

0

50

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

51

Toro 117-6318

MANIFOLD

$277.99

$

Usually ships in 3-6 days

0

52

Toro 2112-11

CLAMP-MUFFLER

$7.99

$

In Stock, only 2 left!

0

55

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

56

Toro 117-6337

BRACKET-SHIELD, HEAT

$100.99

$

Usually ships in 3-6 days

0

57

Toro 115-9227

PLATE-SHIELD, HEAT

$101.99

$

Usually ships in 3-6 days

0

58

Toro 115-6488

CLAMP

$5.49

$

Usually ships in 3-6 days

0

59

Toro 115-6494

SCREW-PAN

$1.49

$

Usually ships in 3-6 days

0

60

Toro 115-6495

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

62

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

63

Toro 1-653313

GASKET-EXHAUST

$4.99

$

Usually ships in 3-6 days

0

64

Toro 115-6496

WASHER-SPRING
(Superseded to 114-3550)

$1.49

$

In Stock, Qty 6

0

65

Toro 115-6611

NUT-HEX

$4.49

$

Usually ships in 3-6 days

0

66

Toro 110-5547

LEVER-CONTROL

$40.99

$

In Stock, only 1 left!

0

67

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, only 1 left!

0

68

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

69

Toro 125-0251

SPACER-IDLER

$61.99

$

Usually ships in 3-6 days

0

70

Toro 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, Qty 6

0

71

Toro 104-8426

SPACER

$10.99

$

In Stock, only 3 left!

0

72

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

73

Toro 115-7210

WASHER-THRUST

$5.99

$

Usually ships in 3-6 days

0

74

Toro 121-4517

WASHER-WAVE

$4.49

$

Usually ships in 3-6 days
