22974 (TRX-26) - Toro Trencher (SN: 310000301 - 310999999) (2010) TRACK AND DRIVE ASSEMBLY Parts Diagram

Trencher

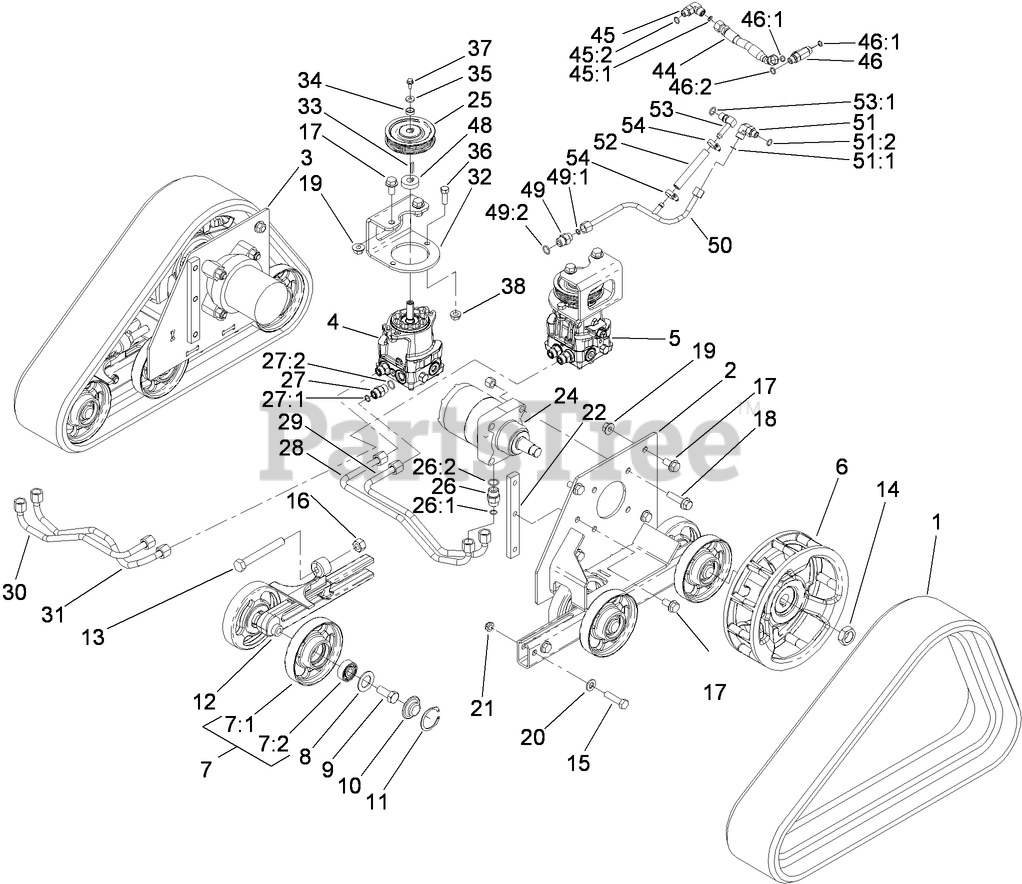

TRACK AND DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 112-4816

TRACK-RUBBER

$844.99

$

Usually ships in 3-6 days

0

2

Toro 114-2992-03

FRAME-TRACK, LH

$

$

Not available

3

Toro 114-2993-03

FRAME-TRACK, RH

$709.99

$

Usually ships in 3-6 days

0

4

Toro 117-6409

RH HYD PUMP ASM

$1546.99

$

Usually ships in 3-6 days

0

5

Toro 117-6410

LH HYD PUMP ASM

$1546.99

$

Usually ships in 3-6 days

0

6

Toro 117-6426-03

WHEEL-DRIVE

$1077.99

$

Usually ships in 3-6 days

0

7

Toro 112-4817

WHEEL-TENSIONER
(Superseded to 138-3139)

$162.99

$

In Stock, only 1 left!

0

7:1

Toro 114-3014-03

WHEEL-TRACK

$120.99

$

Usually ships in 3-6 days

0

7:2

Toro 93-4237

BEARING
(Superseded to 120-5378)

$16.99

$

In Stock, only 4 left!

0

8

Toro 106-7585

Gasket-Bogie

$2.49

$

In Stock, Qty 20+

0

9

Toro 327-4

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

10

Toro 106-7557

CAP-WHEEL, BEARING

$5.49

$

In Stock, Qty 12

0

11

Toro 106-7595

RING-SNAP, INTERNAL

$5.49

$

In Stock, Qty 7

0

12

Toro 114-3077-03

TENSIONER-TRACK

$252.99

$

In Stock, only 1 left!

0

13

Toro 112-4874

SCREW-HH, TAP

$12.99

$

In Stock, only 2 left!

0

14

Toro 106-8159

NUT-LOCK

$28.99

$

In Stock, only 1 left!

0

15

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 7

0

16

Toro 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 15

0

17

Toro 3234-6

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

18

Toro 3234-27

SCREW-HHF

$7.49

$

Usually ships in 3-6 days

0

19

Toro 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

20

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

22

Toro 114-3091

BAR-THREAD

$60.99

$

Usually ships in 3-6 days

0

24

Toro 104-8470

HYD WHEEL MOTOR ASM

$2767.99

$

Usually ships in 3-6 days

0

25

Toro 115-1298

SHEAVE

$274.99

$

In Stock, only 1 left!

0

26

Toro 340-6

FITTING-STRAIGHT

$20.99

$

In Stock, only 2 left!

0

26:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

26:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

27

Toro 340-4

FITTING-STRAIGHT

$12.99

$

In Stock, only 3 left!

0

27:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

27:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 8

0

28

Toro 115-1285

TUBE-HYD

$137.99

$

Usually ships in 3-6 days

0

29

Toro 115-1286

TUBE-HYD

$131.99

$

Usually ships in 3-6 days

0

30

Toro 115-1287

TUBE-HYD

$135.99

$

Usually ships in 3-6 days

0

31

Toro 115-1288

TUBE-HYD

$146.99

$

Usually ships in 3-6 days

0

32

Toro 115-1289-01

BRACKET-MOUNT, PUMP

$83.99

$

Usually ships in 3-6 days

0

33

Toro 80-6090

KEY-PUMP

$9.99

$

Usually ships in 3-6 days

0

34

Toro 108-4211

BUSHING

$1.49

$

In Stock, only 1 left!

0

35

Toro 73-3580

WASHER

$4.49

$

In Stock, Qty 7

0

36

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

37

Toro 33103-016

SCREW-HHF

$5.99

$

In Stock, Qty 13

0

38

Toro 32128-42

NUT-HF

$1.49

$

In Stock, only 3 left!

0

44

Toro 115-1297

HOSE-HYD

$72.99

$

Usually ships in 3-6 days

0

45

Toro 340-77

FITTING-ELBOW, 90 DEG

$26.99

$

Usually ships in 3-6 days

0

45:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

45:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

46

Toro 340-86

FITTING-TEE

$47.99

$

Usually ships in 3-6 days

0

46:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

46:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

48

Toro 115-4002

SPACER

$42.99

$

Usually ships in 3-6 days

0

49

Toro 340-3

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

49:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

49:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 8

0

50

Toro 117-1305

TUBE-HYD

$140.99

$

Usually ships in 3-6 days

0

51

Toro 340-77

FITTING-ELBOW, 90 DEG

$26.99

$

Usually ships in 3-6 days

0

51:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

51:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

52

Toro 115-4083

HOSE

$13.99

$

Usually ships in 3-6 days

0

53

Toro 100-4887

FITTING-ELBOW, 90

$29.99

$

In Stock, only 1 left!

0

53:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

54

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0
