22974 (TRX-26) - Toro Trencher (SN: 310000001 - 310000300) (2010) TRENCHER ASSEMBLY Parts Diagram

Trencher

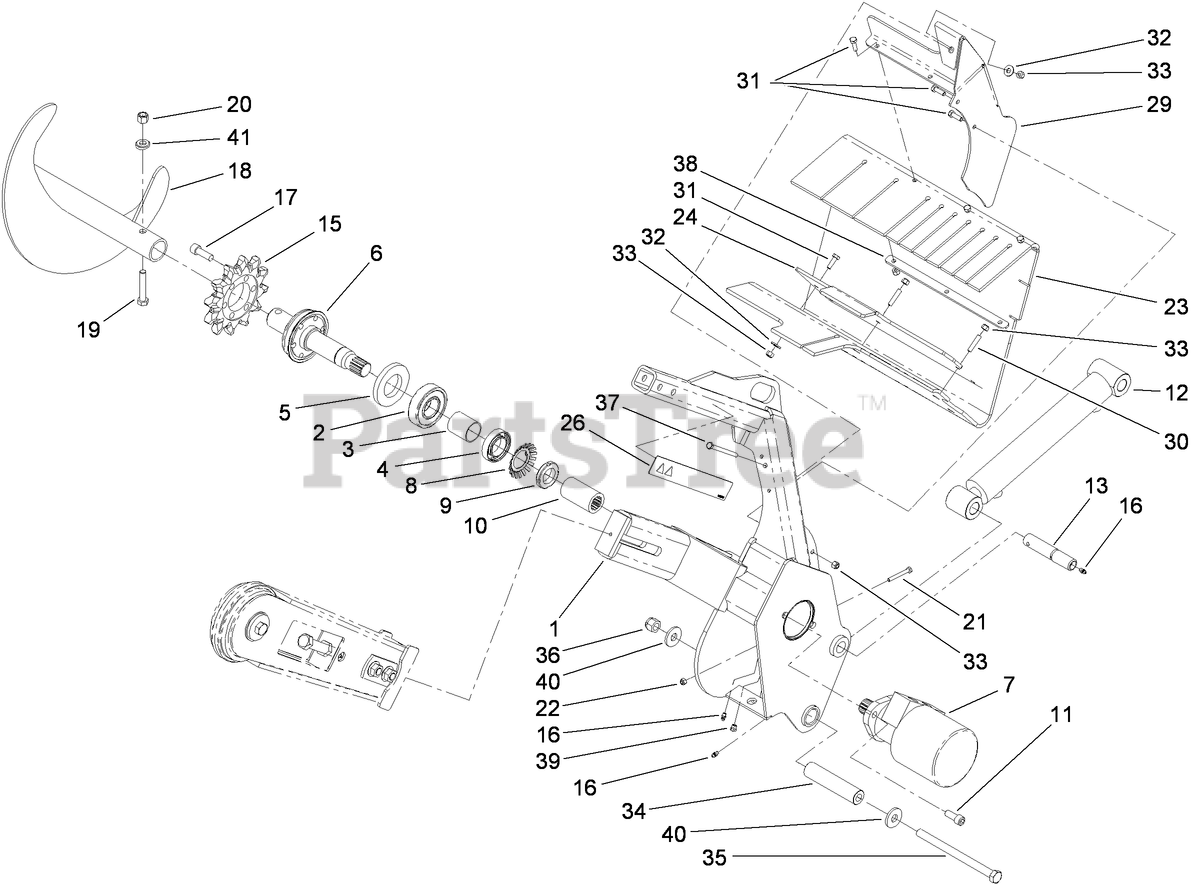

TRENCHER ASSEMBLY Parts Diagram

  • Title

1

Toro 117-6423

TRENCHER HEAD ASM

$2801.99

$

Usually ships in 3-6 days

0

2

Toro 106-8871

BEARING-BALL

$37.99

$

In Stock, only 1 left!

0

3

Toro 112-4979

SPACER

$16.99

$

In Stock, only 1 left!

0

4

Toro 111199

BEARING-BALL

$125.99

$

In Stock, only 3 left!

0

5

Toro 114-2955

SEAL-GREASE

$93.99

$

In Stock, only 1 left!

0

6

Toro 117-6308

SHAFT-TRENCHER

$799.99

$

Usually ships in 3-6 days

0

7

Toro 117-6306

HYDRAULIC MOTOR ASM

$1737.99

$

Usually ships in 3-6 days

0

8

Toro 114-2956

LOCKWASHER-BEARING

$39.99

$

In Stock, only 1 left!

0

9

Toro 88-1450

LOCKNUT-BEARING

$48.99

$

In Stock, only 1 left!

0

10

Toro 117-6315

COLLAR-SPLINED

$191.99

$

In Stock, only 1 left!

0

11

Toro 3274-89

SCREW-HSH

$10.99

$

Usually ships in 3-6 days

0

12

Toro 112-2602

HYD CYLINDER ASM

$1491.99

$

Usually ships in 3-6 days

0

13

Toro 114-2937

PIN-PIVOT
(Superseded to 120-7352)

$86.99

$

In Stock, only 1 left!

0

15

Toro 104-1964

SPROCKET-TRENCHER

$307.99

$

In Stock, only 1 left!

0

16

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

17

Toro 3274-4

SCREW-HSH

$2.99

$

In Stock, Qty 10

0

18

Toro 117-6330-03

TRENCHER AUGER ASM
(Superseded to 137-3737-03)

$430.99

$

Usually ships in 3-6 days

0

19

Toro 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0

20

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

21

Toro 321-18

SCREW-HH

$2.49

$

In Stock, only 3 left!

0

22

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

23

Toro 117-6317

SHIELD-DIRT

$451.99

$

Usually ships in 3-6 days

0

24

Toro 117-6316-03

BAR-CLAMP

$93.99

$

Usually ships in 3-6 days

0

26

Toro 99-9952

DECAL-DANGER

$24.99

$

Usually ships in 3-6 days

0

29

Toro 115-1279-03

BRACKET-SHIELD

$221.99

$

Usually ships in 3-6 days

0

30

Toro 115-4049

SCREW-HSH

$6.49

$

In Stock, only 1 left!

0

31

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Toro 114-8573

SPACER-PIVOT

$71.99

$

Usually ships in 3-6 days

0

35

Toro 117-6327

BOLT-HH

$47.99

$

In Stock, only 1 left!

0

36

Toro 3296-53

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

37

Toro 322-23

SCREW-HH
(Superseded to 321-9)

$4.99

$

In Stock, only 2 left!

0

38

Toro 115-4001-03

PLATE-STRAP, SHIELD

$26.99

$

Usually ships in 3-6 days

0

39

Toro 302-34

FITTING-LUBE

$11.99

$

Usually ships in 3-6 days

0

40

Toro 104-9216

WASHER-HARDENED

$6.99

$

In Stock, only 2 left!

0

41

Toro 117-3479

WASHER-SADDLE

$17.99

$

In Stock, only 4 left!

0
