22973 (TRX-20) - Toro Trencher (SN: 313000001 - 313999999) (2013) CYLINDER AND CRANKCASE ASSEMBLY Parts Diagram

Trencher

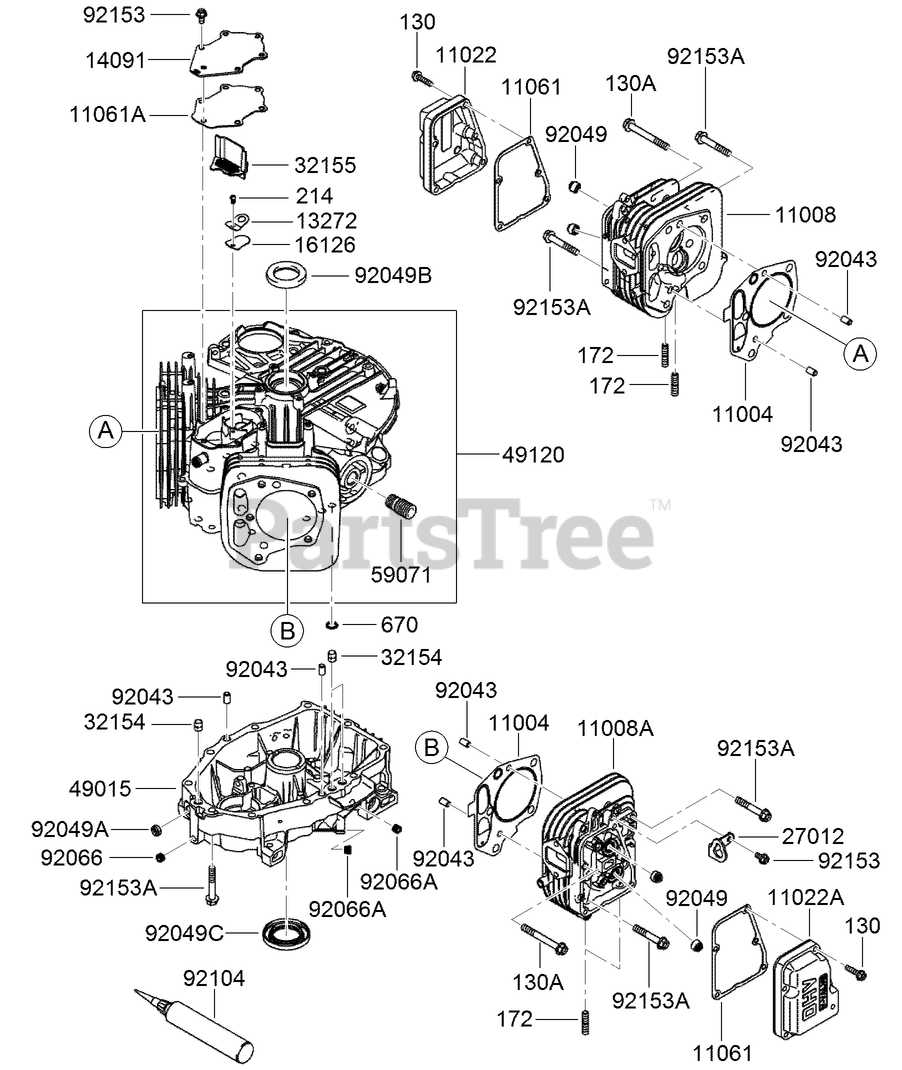

CYLINDER AND CRANKCASE ASSEMBLY Parts Diagram

  • Title
130

Toro 93-8548

BOLT-FLANGED (6X25)
(Superseded to 100-2610)

$2.99

$

Usually ships in 3-6 days

0

130A

Toro 120-7406

BOLT-FLANGED (8X70)

$4.49

$

Usually ships in 3-6 days

0

172

Toro 114-8658

BOLT-STUD (8X18)

$5.49

$

Usually ships in 3-6 days

0

214

Toro 115-6422

SCREW-PAN (4X8)

$0.99

$

Usually ships in 3-6 days

0

670

Toro 95-9771

O-RING (11mm)

$2.99

$

Usually ships in 3-6 days

0

11004

Toro 120-7400

GASKET-HEAD

$68.99

$

Usually ships in 3-6 days

0

11008

Toro 120-7478

CYLINDER HEAD NO.1 ASM
(Superseded to 120-7401)

$409.99

$

Usually ships in 3-6 days

0

11008A

Toro 120-7479

CYLINDER HEAD NO.2 ASM
(Superseded to 120-7402)

$409.99

$

Usually ships in 3-6 days

0

11022

Toro 119-5803

CASE-ROCKER (No.1)

$38.99

$

Usually ships in 3-6 days

0

11022A

Toro 119-5804

CASE-ROCKER (No.2)

$38.99

$

Usually ships in 3-6 days

0

11061

Toro 119-5805

GASKET-CASE, ROCKER

$14.99

$

Usually ships in 3-6 days

0

11061A

Toro 119-5806

GASKET-BREATHER

$20.99

$

Usually ships in 3-6 days

0

13272

Toro 119-5808

PLATE-BREATHER

$8.49

$

Usually ships in 3-6 days

0

14091

Toro 119-5809

COVER-BREATHER

$5.49

$

Usually ships in 3-6 days

0

16126

Toro 119-5810

VALVE-BREATHER

$13.99

$

Usually ships in 3-6 days

0

27012

Toro 120-7480

HOOK-LIFT
(Superseded to 120-7403)

$5.99

$

Usually ships in 3-6 days

0

32154

$6.99

$

Usually ships in 3-6 days

0

32155

Toro 119-5812

PIPE-BREATHER

$6.99

$

Usually ships in 3-6 days

0

49015

Toro 120-7481

COVER-CRANKCASE

$356.99

$

Usually ships in 3-6 days

0

49120

Toro 120-7482

CRANKCASE ASM

$1227.99

$

Usually ships in 3-6 days

0

59071

Toro 95-9715

JOINT

$19.99

$

Usually ships in 3-6 days

0

92043

$0.99

$

Usually ships in 3-6 days

0

92049

Toro 114-8650

SEAL-OIL, RV C2 (6X11X10.2)

$13.99

$

Usually ships in 3-6 days

0

92049A

Toro 119-5816

SEAL-OIL, SO (8X14X5) HS

$4.99

$

Usually ships in 3-6 days

0

92049B

Toro 119-5817

SEAL-OIL, SD (35X48X8) R HS

$6.99

$

Usually ships in 3-6 days

0

92049C

Toro 119-5818

SEAL-OIL (38X62X8) MTCLV

$39.99

$

Usually ships in 3-6 days

0

92066

$10.99

$

Usually ships in 3-6 days

0

92066A

$10.99

$

Usually ships in 3-6 days

0

92104

Toro 119-5821

GASKET-LIQUID (TB1217H)

$154.99

$

Usually ships in 3-6 days

0

92153

Toro 114-8655

BOLT (6X12)

$1.49

$

In Stock, Qty 5

0

92153A

Toro 114-8656

BOLT (8X50)

$3.99

$

Usually ships in 3-6 days

0
