22973 G (TRX-20) - Toro Trencher (SN: 402000000 - 404709999) Main Frame Assembly Parts Diagram

Trencher

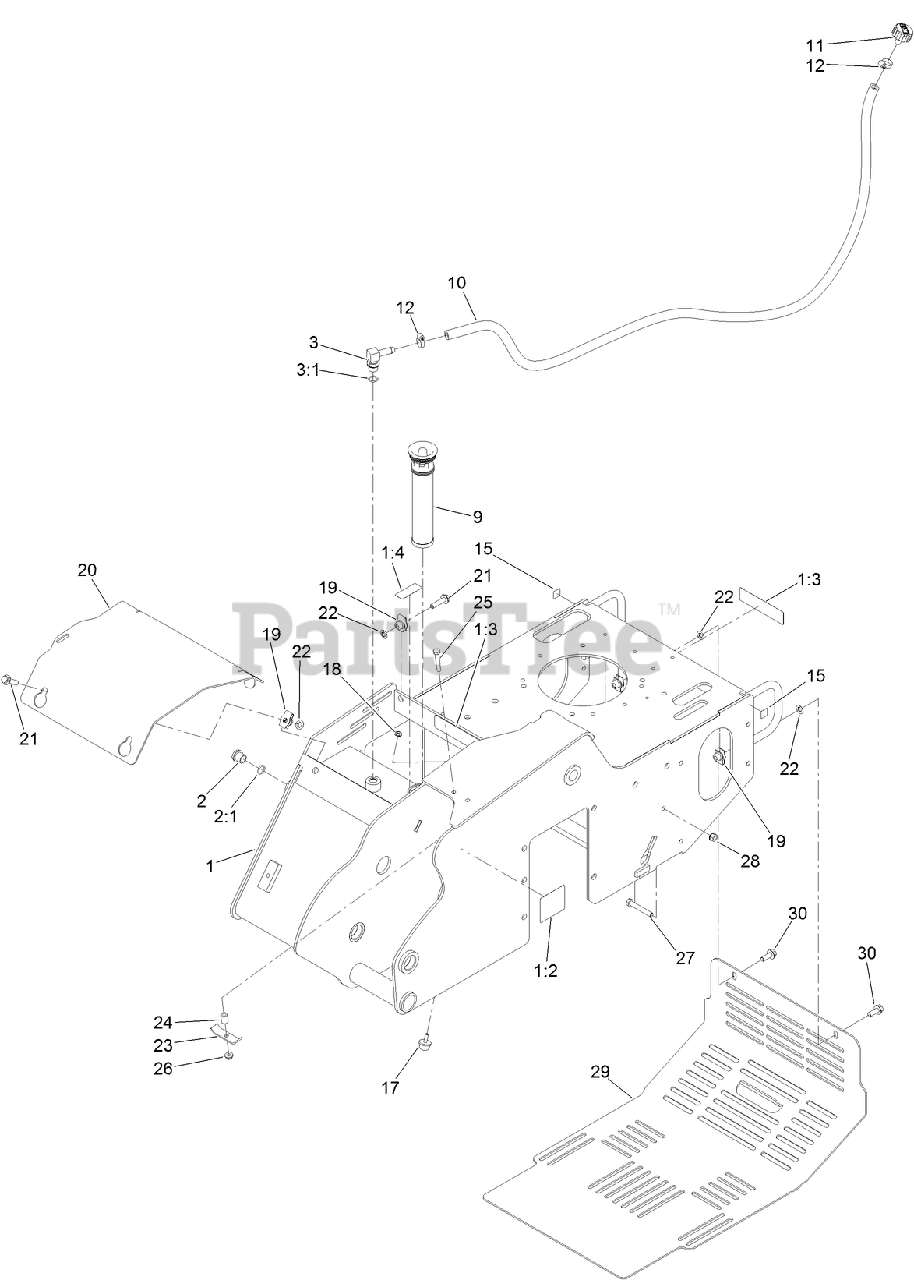

Main Frame Assembly Parts Diagram

  • Title

1

Toro 127-9602

MAIN FRAME ASM

$3456.99

$

Usually ships in 3-6 days

0

1:2

Toro 100-4650

DECAL-WARNING

$26.99

$

Usually ships in 3-6 days

0

1:3

Toro 93-7814

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

1:4

Toro 93-6686

DECAL-OIL, HYD

$9.49

$

Usually ships in 3-6 days

0

2

Toro 114-3075

SIGHT GLASS ASM

$28.99

$

In Stock, only 1 left!

0

2:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

3

Toro 354-120

FITTING-ELBOW, 90

$33.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

9

Toro 114-3039

IN-TANK FILTER ASM

$252.99

$

In Stock, only 1 left!

0

10

Toro 114-3042

HOSE-BREATHER

$53.99

$

Usually ships in 3-6 days

0

11

Toro 68-6150

BREATHER

$28.99

$

In Stock, only 1 left!

0

12

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

15

Toro 93-9084

DECAL-POINT, LIFT

$9.49

$

Usually ships in 3-6 days

0

17

Toro 1-523420

BUMPER

$14.99

$

Usually ships in 3-6 days

0

18

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

19

Toro 105-4886

NUT-TINNERMAN

$3.49

$

Usually ships in 3-6 days

0

20

Toro 119-4566-03

PLATE-COVER, FRONT

$129.99

$

Usually ships in 3-6 days

0

21

Toro 3234-18

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

22

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 6

0

23

Toro 100-4860

BRACKET-CLAMP

$41.99

$

Usually ships in 3-6 days

0

24

Toro 93-5023

SPACER

$14.99

$

Usually ships in 3-6 days

0

25

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

27

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

28

Toro 32128-40

NUT-FLANGE

$7.49

$

Usually ships in 3-6 days

0

29

Toro 115-6503-01

COVER-REAR

$461.99

$

Usually ships in 3-6 days

0

30

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0
