22973 G (TRX-20) - Toro Trencher (SN: 402000000 - 404709999) Electrical Assembly Parts Diagram

Trencher

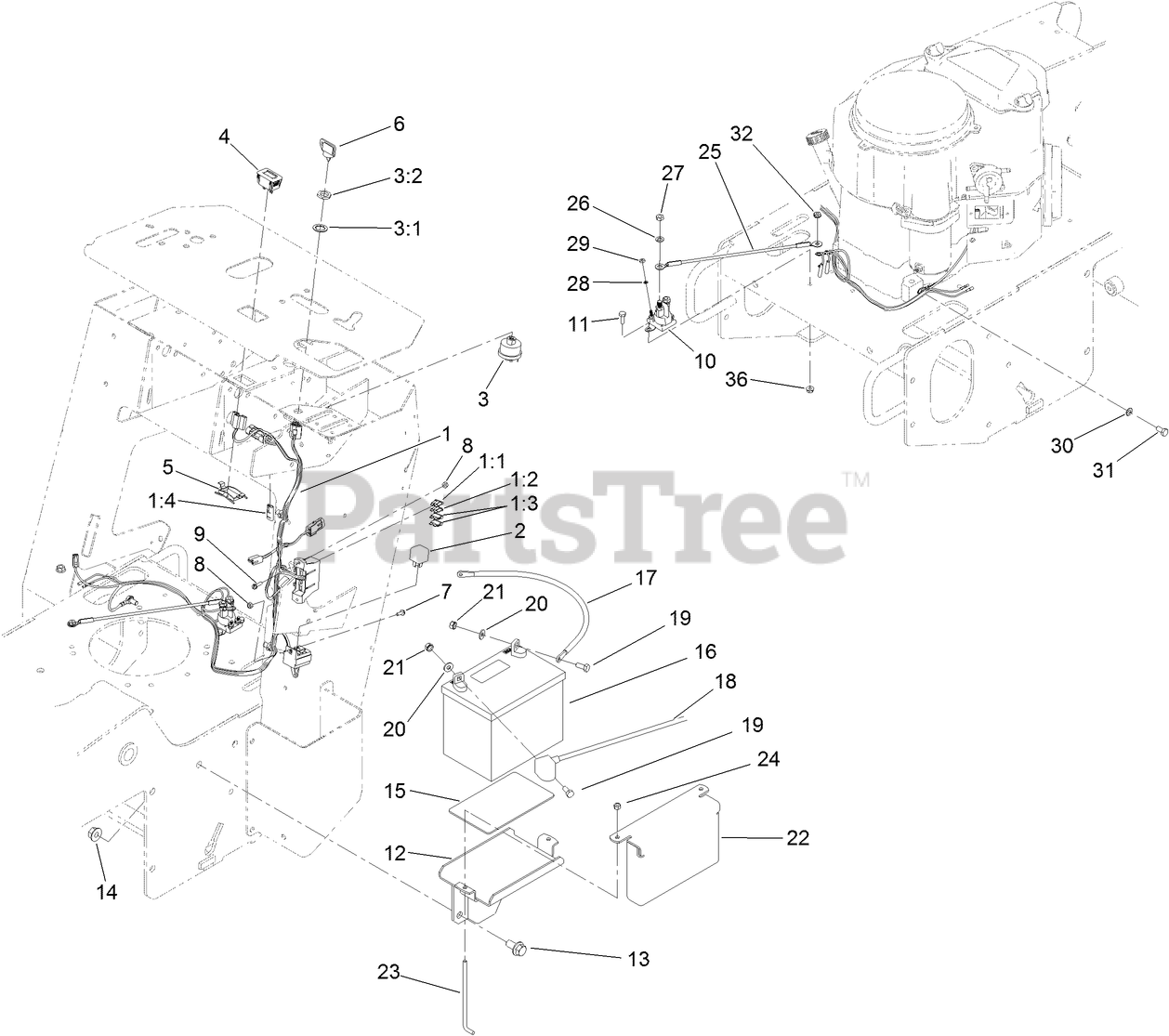

Electrical Assembly Parts Diagram

  • Title

1

Toro 117-6289

HARNESS-WIRE

$315.99

$

Usually ships in 3-6 days

0

1:1

Toro 109103

FUSE-BLADE, 30 AMP

$6.49

$

In Stock, Qty 6

0

1:2

Toro 109102

FUSE-BLADE, 25 AMP

$5.49

$

In Stock, Qty 9

0

1:3

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

1:4

Toro 116-0053

CAP-PLUG

$38.99

$

Usually ships in 3-6 days

0

2

Toro 98-7249

RELAY

$22.99

$

In Stock, only 2 left!

0

3

Toro 88-9830

See Supercession: 104-2541
(Superseded to 104-2541)

$37.99

$

In Stock, Qty 12

0

3:1

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, only 3 left!

0

3:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

4

Toro 120-2244

HOURMETER

$67.99

$

In Stock, only 1 left!

0

5

Toro 104-4234

CLIP-MOUNTING

$6.99

$

Usually ships in 3-6 days

0

6

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

7

Toro 32105-23

SCREW

$1.49

$

In Stock, only 3 left!

0

8

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

10

Toro 117-1197

SOLENOID

$45.99

$

In Stock, Qty 20+

0

11

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 105-3150-01

TRAY-BATTERY

$116.99

$

Usually ships in 3-6 days

0

13

Toro 323-46

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

14

Toro 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

15

Toro 62-4300

PAD-SKID, ANTI

$18.99

$

Usually ships in 3-6 days

0

16

Toro 104-8162

BATTERY-DRY

$

$

Not available

17

Toro 112-9708

CABLE-BATTERY, RED

$45.99

$

Usually ships in 3-6 days

0

18

Toro 117-6422

CABLE-BATTERY, BLACK

$32.99

$

Usually ships in 3-6 days

0

19

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 9

0

22

Toro 115-6621-03

PLATE-HOLD DOWN, BATTERY

$74.99

$

Usually ships in 3-6 days

0

23

Toro 104-8567

HOLDOWN-BATTERY

$27.99

$

Usually ships in 3-6 days

0

24

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

25

Toro 28-3891

WIRE-SOLENOID/STARTER

$27.99

$

Usually ships in 3-6 days

0

26

Toro 325-34

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

27

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

28

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

29

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

30

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

31

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

32

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

36

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0
