22973 G (TRX-20) - Toro Trencher (SN: 402000000 - 404709999) Air Filter and Muffler Assembly Parts Diagram

Trencher

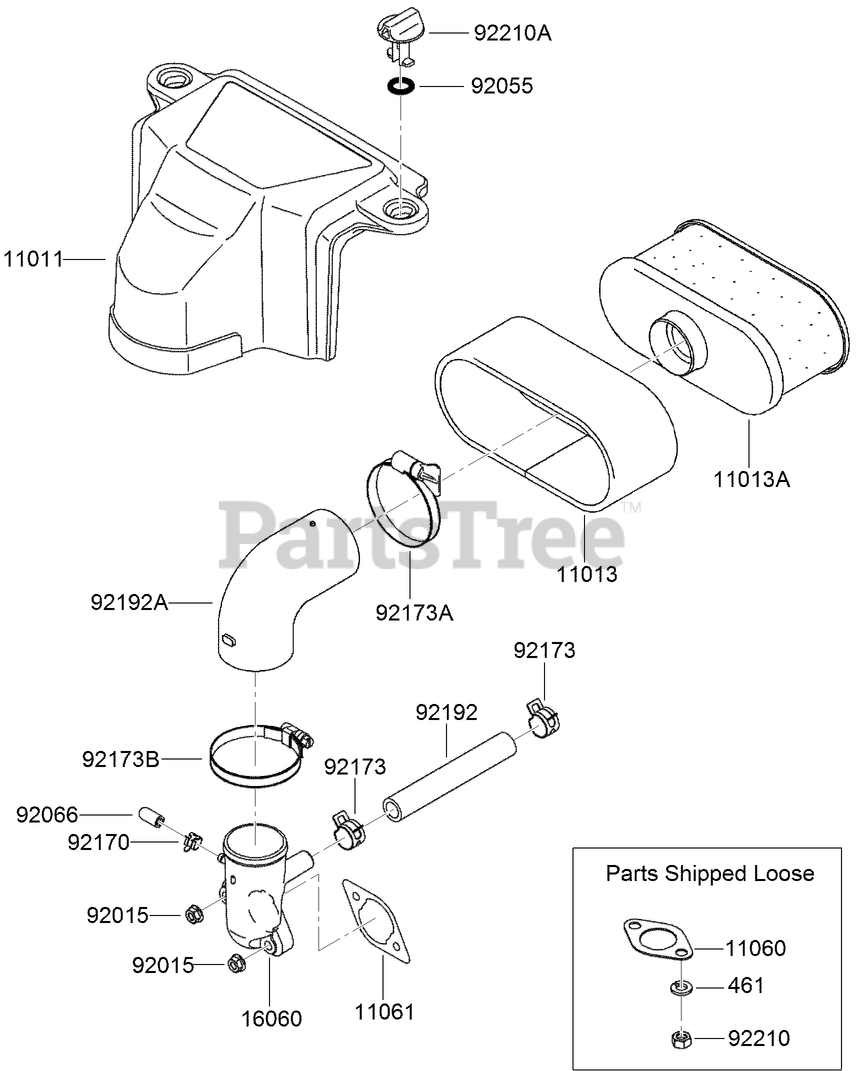

Air Filter and Muffler Assembly Parts Diagram

  • Title

461

Toro 119-5962

WASHER-SPRING (8MM)

$3.49

$

Usually ships in 3-6 days

0

11011

Toro 120-7477

CASE-FILTER, AIR

$

$

Not available

11013

Toro 120-7501

See Supercession: 120-7447
(Superseded to 120-7447)

$5.99

$

In Stock, Qty 20+

0

11013A

Toro 120-7502

See Supercession: 120-7448
(Superseded to 120-7448)

$50.99

$

In Stock, only 1 left!

0

11060

Toro 119-5948

GASKET-MUFFLER
(Superseded to 117-8858)

$4.49

$

Usually ships in 3-6 days

0

11061

Toro 115-6426

GASKET-CLEANER, AIR

$13.99

$

Usually ships in 3-6 days

0

16060

Toro 120-7450

PIPE-INTAKE

$30.99

$

Usually ships in 3-6 days

0

92015

Toro 119-5954

NUT

$11.99

$

In Stock, only 1 left!

0

92055

Toro 120-7451

O-RING

$3.49

$

Usually ships in 3-6 days

0

92066

Toro 120-7452

PLUG

$10.99

$

Usually ships in 3-6 days

0

92170

Toro 120-7453

CLAMP

$2.49

$

Usually ships in 3-6 days

0

92173

Toro 119-5956

CLAMP

$5.49

$

Usually ships in 3-6 days

0

92173A

Toro 120-7454

CLAMP

$9.49

$

Usually ships in 3-6 days

0

92173B

Toro 120-7455

CLAMP

$18.99

$

Usually ships in 3-6 days

0

92192

Toro 119-5957

TUBE (12.6X18.6X118)

$4.49

$

Usually ships in 3-6 days

0

92192A

Toro 120-7503

TUBE-A/C

$

$

Not available

92210

Toro 119-5959

NUT (M8)

$4.49

$

Usually ships in 3-6 days

0

92210A

Toro 120-7457

NUT

$2.99

$

Usually ships in 3-6 days

0
