22973 G (TRX-20) - Toro Trencher (SN: 400000000 - 401999999) GEAR PUMP, IDLER ARM AND PULLEY ASSEMBLY Parts Diagram

Trencher

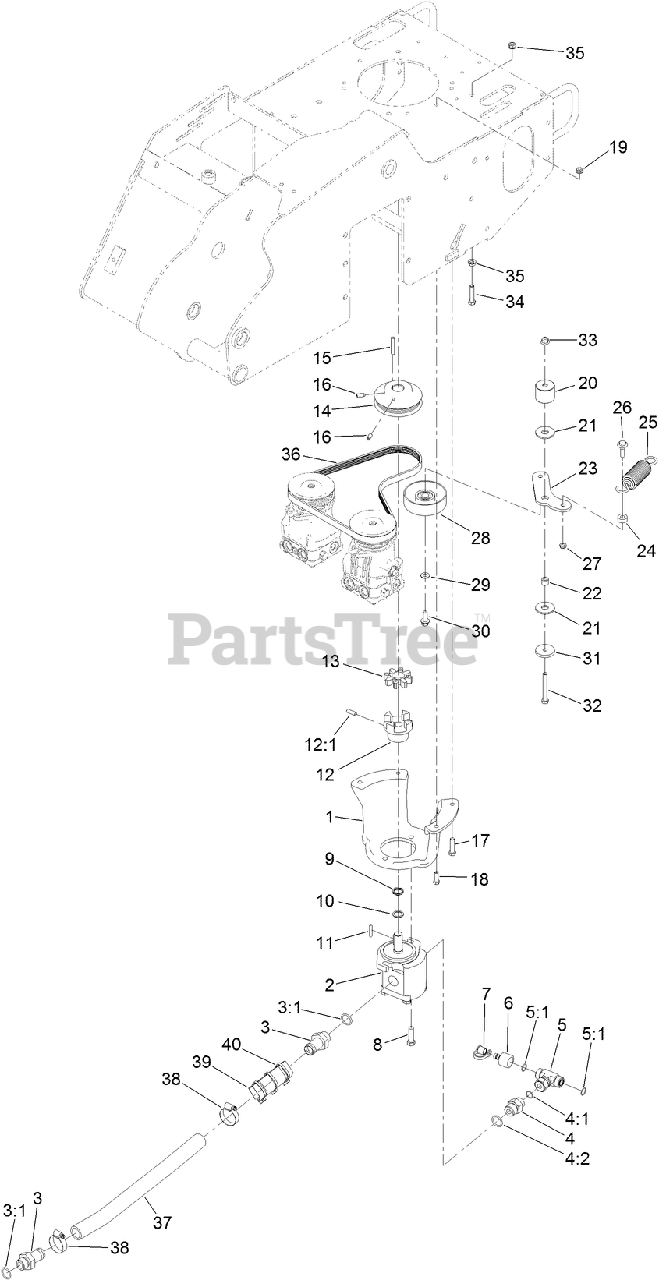

GEAR PUMP, IDLER ARM AND PULLEY ASSEMBLY Parts Diagram

  • Title

1

Toro 115-1480-03

MOUNT-PUMP

$225.99

$

Usually ships in 3-6 days

0

2

Toro 114-3072

GEAR PUMP ASM

$1220.99

$

Usually ships in 3-6 days

0

3

Toro 99-3017

FITTING

$91.99

$

In Stock, only 1 left!

0

3:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

4

Toro 340-8

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

4:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

5

Toro 340-167

FITTING-HYD, TEE

$126.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

6

Toro 86-5860

NIPPLE

$58.99

$

Usually ships in 3-6 days

0

7

Toro 354-79

CAP-DUST

$9.99

$

Usually ships in 3-6 days

0

8

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

9

Toro 121-4517

WASHER-WAVE

$4.49

$

Usually ships in 3-6 days

0

10

Toro 115-7210

WASHER-THRUST

$5.99

$

Usually ships in 3-6 days

0

11

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

12

Toro 114-2933

COUPLER-FLEX

$123.99

$

Usually ships in 3-6 days

0

12:1

Toro 100-7594

SCREW-SET

$2.99

$

Usually ships in 3-6 days

0

13

Toro 93-8827

COUPLER-SPIDER

$48.99

$

Usually ships in 3-6 days

0

14

Toro 114-8559-03

PULLEY-ENGINE
(Superseded to 145-3291)

$59.99

$

Usually ships in 3-6 days

0

15

Toro 608006

KEY-SQUARE

$5.49

$

In Stock, only 1 left!

0

16

Toro 3246-6

SCREW-SET, HSH

$7.99

$

In Stock, only 2 left!

0

17

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Toro 125-0251

SPACER-IDLER

$61.99

$

Usually ships in 3-6 days

0

21

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 20+

0

22

Toro 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 4 left!

0

23

Toro 125-0252

ARM-IDLER

$79.99

$

Usually ships in 3-6 days

0

24

Toro 104-8426

SPACER

$10.99

$

In Stock, only 1 left!

0

25

Toro 121-4523

SPRING-EXTENSION

$42.99

$

In Stock, only 2 left!

0

26

Toro 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, only 4 left!

0

27

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

28

Toro 95-8802

PULLEY-IDLER

$77.99

$

In Stock, Qty 5

0

29

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

31

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, Qty 11

0

32

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

33

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

34

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

35

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

36

Toro 114-2991

BELT-V

$60.99

$

In Stock, only 1 left!

0

37

Toro 114-2917

HOSE-SUCTION

$96.99

$

In Stock, only 1 left!

0

38

Toro 2412-111

CLAMP

$4.99

$

Usually ships in 3-6 days

0

39

Toro AU112950

PROTECTOR-HOSE

$29.99

$

Usually ships in 3-6 days

0

40

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
