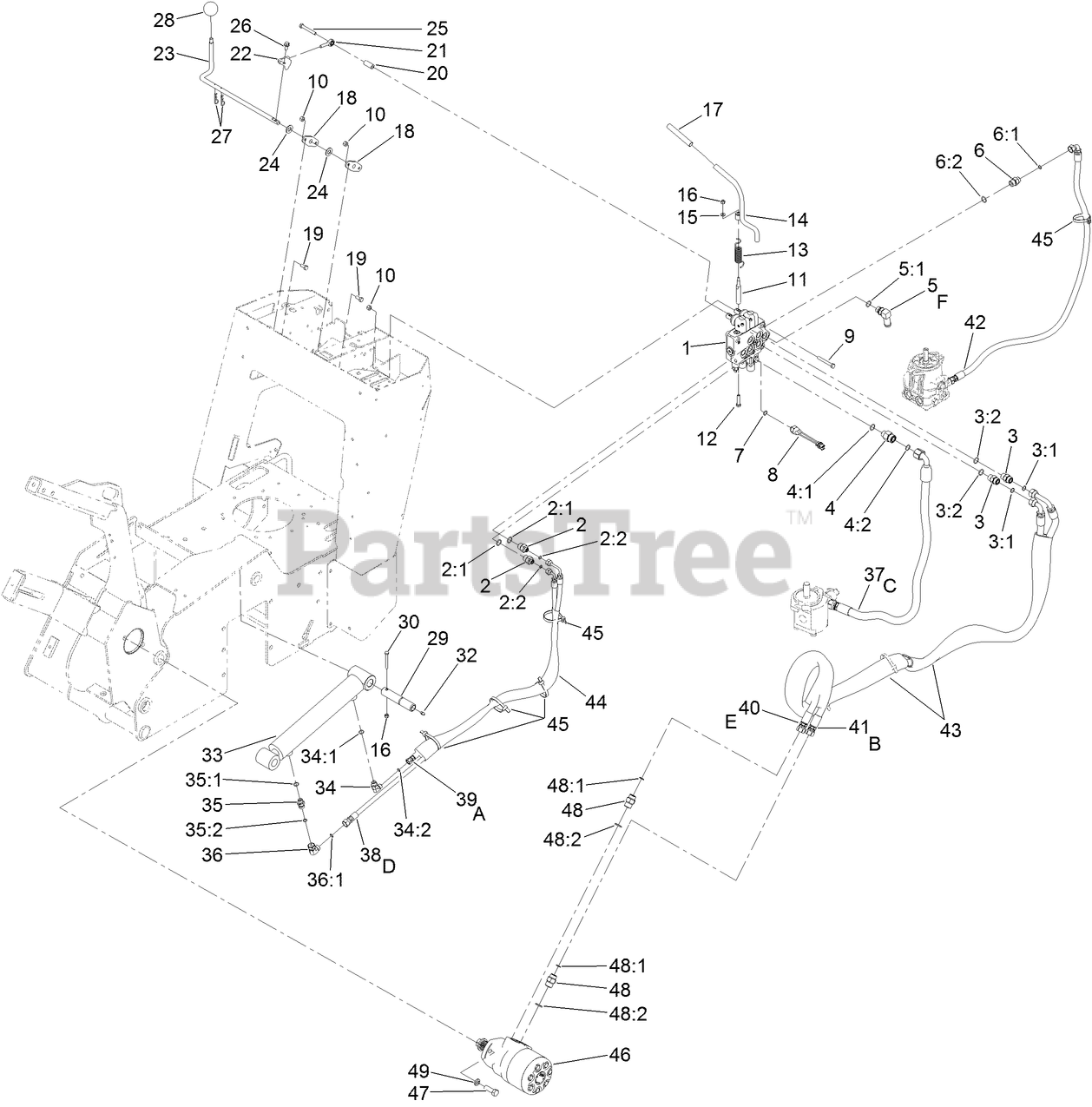

22972 (TRX-16) - Toro Trencher (SN: 402461470 - 404709999) Hydraulic Control Assembly Parts Diagram

Trencher

Hydraulic Control Assembly Parts Diagram

  • Title

1

Toro 115-4062

HYD VALVE ASM

$2668.99

$

Usually ships in 3-6 days

0

2

Toro 340-133

FITTING-STR

$50.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-79

O-RING

$6.49

$

In Stock, only 1 left!

0

2:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 5

0

3

Toro 340-4

FITTING-STRAIGHT

$13.99

$

In Stock, only 3 left!

0

3:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

3:2

Toro 237-79

O-RING

$6.49

$

In Stock, only 1 left!

0

4

Toro 340-155

FITTING-STRAIGHT

$32.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-79

O-RING

$6.49

$

In Stock, only 1 left!

0

4:2

Toro 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

0

5

Toro 353-954

FITTING-ELBOW, 90

$80.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-79

O-RING

$6.49

$

In Stock, only 1 left!

0

6

Toro 340-3

FITTING-STRAIGHT

$13.99

$

Usually ships in 3-6 days

0

6:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

6:2

Toro 237-79

O-RING

$6.49

$

In Stock, only 1 left!

0

7

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 19

0

8

Toro 72-4310

SWITCH-BALL

$108.99

$

Usually ships in 3-6 days

0

9

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 9

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 104-2827

SPACER-HIFLO

$174.99

$

Usually ships in 3-6 days

0

12

Toro 33114-035

SCREW-HH

$5.49

$

In Stock, only 1 left!

0

13

Toro 112-2738

SPRING-TORSION

$13.99

$

Usually ships in 3-6 days

0

14

Toro 112-2739

LEVER-AUXILIARY

$55.99

$

Usually ships in 3-6 days

0

15

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

16

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

17

Toro 112-2605

GRIP-RUBBER

$6.99

$

Usually ships in 3-6 days

0

18

Toro 20-1620

BEARING-WHEEL, FRICTION
(Superseded to 138-3142)

$41.99

$

In Stock, only 2 left!

0

19

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 103-0384

SPACER

$2.49

$

In Stock, only 4 left!

0

21

Toro 115-1273

BEARING-ROD END

$55.99

$

In Stock, only 2 left!

0

22

Toro 112-7210

BRACKET-CONTROL

$60.99

$

In Stock, only 2 left!

0

23

Toro 114-8598

ROD-LEVER, CYLINDER

$109.99

$

Usually ships in 3-6 days

0

24

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 33114-060

SCREW-HH

$1.49

$

In Stock, Qty 6

0

26

Toro 3234-14

SCREW-HHF

$1.99

$

In Stock, Qty 15

0

27

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, Qty 5

0

28

Toro 233-21

KNOB

$14.99

$

Usually ships in 3-6 days

0

29

Toro 120-7352

PIN-PIVOT

$91.99

$

Usually ships in 3-6 days

0

30

Toro 321-18

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

32

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

33

Toro 121-1955

HYD CYLINDER ASM

$1033.99

$

Usually ships in 3-6 days

0

34

Toro 340-82

FITTING-ELBOW, 90 DEG

$26.99

$

In Stock, only 2 left!

0

34:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 19

0

34:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 5

0

35

Toro 115-4081

VALVE-CHECK

$209.99

$

Usually ships in 3-6 days

0

35:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 19

0

35:2

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

36

Toro 340-159

FITTING-HYD, 90 DEG

$70.99

$

Usually ships in 3-6 days

0

36:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

37

Toro 114-3043

HOSE-HYD

$288.99

$

Usually ships in 3-6 days

0

38

Toro 114-3044

HOSE-HYD

$116.99

$

Usually ships in 3-6 days

0

39

Toro 114-3045

HOSE-HYD

$124.99

$

Usually ships in 3-6 days

0

40

Toro 114-3046

HOSE-HYD

$160.99

$

Usually ships in 3-6 days

0

41

Toro 114-3085

HOSE-HYD

$207.99

$

Usually ships in 3-6 days

0

42

Toro 117-4038

HOSE-HYD

$137.99

$

Usually ships in 3-6 days

0

43

Toro 99-5648

SLEEVE-PROTECTIVE

$99.99

$

Usually ships in 3-6 days

0

44

Toro 115-4064

SLEEVE-PROTECTIVE

$47.99

$

Usually ships in 3-6 days

0

45

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

46

Toro 131-0652

HYD MOTOR ASM

$1474.99

$

Usually ships in 3-6 days

0

47

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

48

Toro 340-6

FITTING-STRAIGHT

$21.99

$

Usually ships in 3-6 days

0

48:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

48:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0

49

Toro 325-37

SCREW-HH

$6.99

$

In Stock, Qty 20+

0
