22972 (TRX-16) - Toro Trencher (SN: 314000301 - 314999999) (2014) OIL COOLER ASSEMBLY Parts Diagram

Trencher

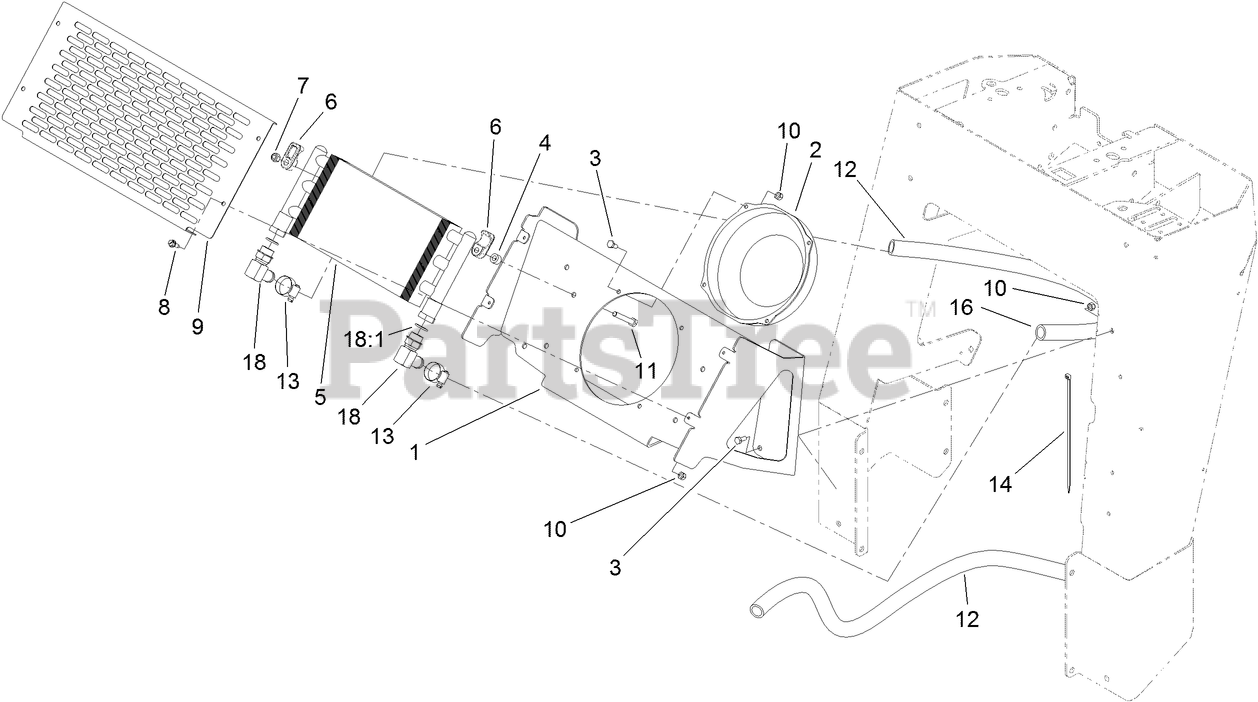

OIL COOLER ASSEMBLY Parts Diagram

  • Title

1

Toro 117-6296-01

MOUNT-COOLER

$283.99

$

Usually ships in 3-6 days

0

2

Toro 104-2809

FAN

$496.99

$

Usually ships in 3-6 days

0

3

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 98-4695

SPACER

$7.99

$

Usually ships in 3-6 days

0

5

Toro 105-0352

EXCHANGER-HEAT

$943.99

$

Usually ships in 3-6 days

0

6

Toro 105-3943

CLAMP-COOLER, OIL

$10.99

$

In Stock, only 3 left!

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

8

Toro 32104-95

SCREW-HWH

$0.99

$

Usually ships in 3-6 days

0

9

Toro 119-4633-01

COVER-COOLER

$168.99

$

Usually ships in 3-6 days

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

12

Toro 115-1207

HOSE-RETURN

$184.99

$

Usually ships in 3-6 days

0

13

Toro 2412-129

CLAMP-HOSE

$4.99

$

In Stock, Qty 7

0

14

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

16

Toro 117-3966

HOSE-COOLER

$31.99

$

Usually ships in 3-6 days

0

18

Toro 87-8170

FITTING

$47.99

$

Usually ships in 3-6 days

0

18:1

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 9

0
