22972 G (TRX-16) - Toro Trencher (SN: 402000000 - 404709999) Tower and Fuel Tank Assembly Parts Diagram

Trencher

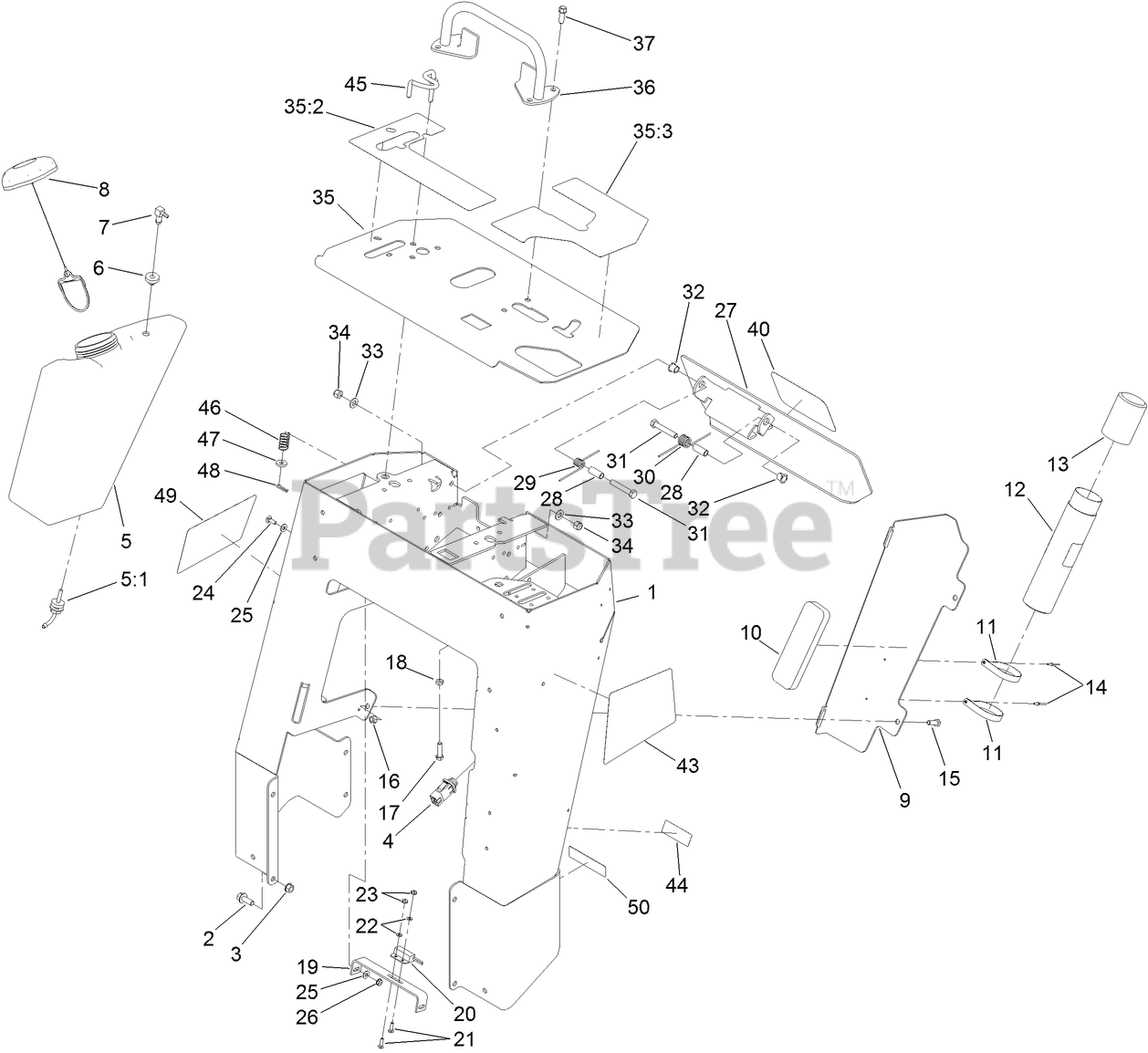

Tower and Fuel Tank Assembly Parts Diagram

  • Title

1

Toro 117-6419-01

TOWER

$1798.99

$

Usually ships in 3-6 days

0

2

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

3

Toro 32128-40

NUT-FLANGE

$7.49

$

Usually ships in 3-6 days

0

4

Toro 100-1268

SWITCH-PLUNGER

$60.99

$

Usually ships in 3-6 days

0

5

Toro 120-7357

TANK-FUEL

$329.99

$

Usually ships in 3-6 days

0

5:1

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 2 left!

0

6

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 12

0

7

Toro 104-5228

FITTING-ELBOW, 90 DEG

$18.99

$

Usually ships in 3-6 days

0

8

Toro 137-4119

CAP-FUEL, RATCHETING

$27.99

$

In Stock, only 1 left!

0

9

Toro 114-3065-01

BRACKET-COVER, TANK

$127.99

$

Usually ships in 3-6 days

0

10

Toro 107-7507

PAD-FOAM

$7.99

$

Usually ships in 3-6 days

0

11

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

12

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

13

Toro 104-7048

CAP-HOUSING

$5.49

$

Usually ships in 3-6 days

0

14

Toro 3269-17

RIVET-POP

$1.99

$

Usually ships in 3-6 days

0

15

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 3210-7

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

18

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

19

Toro 100-1263

PLATE-SWITCH

$39.99

$

Usually ships in 3-6 days

0

20

Toro 100-1270

SWITCH-PROXIMITY

$115.99

$

Usually ships in 3-6 days

0

21

Toro 3229-20

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

22

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

23

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, only 3 left!

0

24

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

25

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

27

Toro 114-3012-03

PLATE-REVERSE

$162.99

$

Usually ships in 3-6 days

0

28

Toro 114-1337

SPACER-SPRING

$6.99

$

Usually ships in 3-6 days

0

29

Toro 98-8425

SPRING-TORSION, LH

$30.99

$

Usually ships in 3-6 days

0

30

Toro 98-8424

SPRING-TORSION, RH

$30.99

$

Usually ships in 3-6 days

0

31

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

32

Toro 256-257

BUSHING-NYLINER

$3.99

$

In Stock, Qty 20+

0

33

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

34

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

35

Toro 117-6389

PANEL-CONTROL

$349.99

$

Usually ships in 3-6 days

0

35:2

Toro 115-1231

DECAL-CONSOLE, RH

$85.99

$

Usually ships in 3-6 days

0

35:3

Toro 115-1230

DECAL-CONSOLE, LH

$84.99

$

Usually ships in 3-6 days

0

36

Toro 106-7715

BAR-REFERENCE

$207.99

$

Usually ships in 3-6 days

0

37

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

40

Toro 105-1217

DECAL

$40.99

$

In Stock, Qty 8

0

43

Toro 117-6281

DECAL-SIDE, LH

$38.99

$

Usually ships in 3-6 days

0

44

Toro 120-7531

DECAL-INFO

$

$

Not available

45

Toro 114-8727

ROD-INTERLOCK

$82.99

$

Usually ships in 3-6 days

0

46

Toro 85-6750

SPRING-CONTROL

$10.99

$

Usually ships in 3-6 days

0

47

Toro 88-7200

WASHER-FLAT

$3.49

$

Usually ships in 3-6 days

0

48

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

49

Toro 117-6270

DECAL-SIDE, RH

$28.99

$

Usually ships in 3-6 days

0

50

Toro 133-5619

DECAL-ARRESTER, SPARK

$3.49

$

Usually ships in 3-6 days

0
