22971 (TRX-19) - Toro Trencher (SN: 310000001 - 310999999) (2010) ELECTRIC EQUIPMENT ASSEMBLY Parts Diagram

Trencher

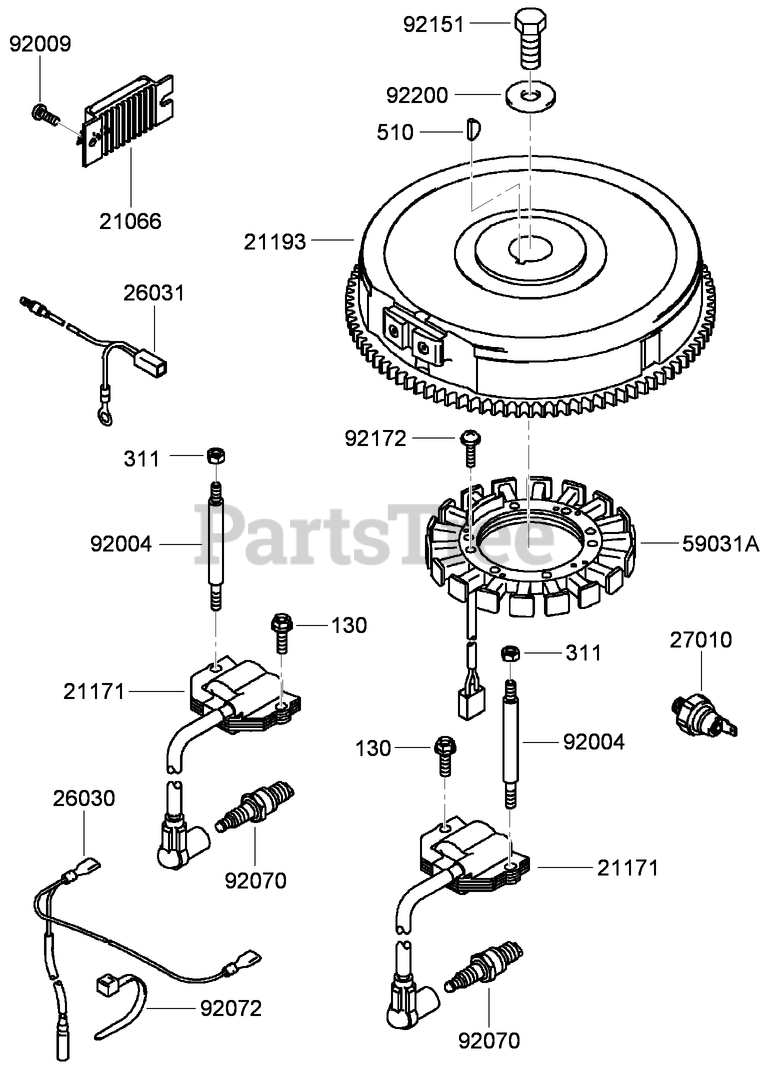

ELECTRIC EQUIPMENT ASSEMBLY Parts Diagram

  • Title

130

Toro 95-9893

BOLT-FLANGED (6X20)

$6.99

$

Usually ships in 3-6 days

0

311

Toro 114-8698

NUT-HEX (6MM)

$3.49

$

Usually ships in 3-6 days

0

510

Toro 114-8639

KEY-WOODRUFF

$7.49

$

Usually ships in 3-6 days

0

21066

Toro 115-6578

REGULATOR-VOLTAGE
(Superseded to 120-7356)

$77.99

$

In Stock, Qty 20+

0

21171

Toro 115-6579

IGNITION COIL ASM

$235.99

$

Usually ships in 3-6 days

0

21193

Toro 115-6580

FLYWHEEL ASM

$704.99

$

Usually ships in 3-6 days

0

26030

Toro 115-6402

HARNESS

$31.99

$

Usually ships in 3-6 days

0

26031

Toro 115-6581

HARNESS

$

$

Not available

27010

Toro 117-6262

SWITCH

$

$

Not available

59031A

Toro 119-5996

COIL-CHARGING

$

$

Not available

92004

Toro 115-6584

STUD

$

$

Not available

92009

Toro 95-9716

SCREW

$0.99

$

Usually ships in 3-6 days

0

92070

Toro 115-6407

SPARKPLUG

$13.99

$

Usually ships in 3-6 days

0

92072

Toro 115-6585

BAND

$3.99

$

Usually ships in 3-6 days

0

92151

Toro 115-6408

BOLT (12X30)

$10.99

$

Usually ships in 3-6 days

0

92172

Toro 115-4030

SCREW (5X20)

$0.99

$

Usually ships in 3-6 days

0

92200

Toro 115-4031

Washer (12.2X46X3)

$6.49

$

Usually ships in 3-6 days

0
