22971 (TRX-19) - Toro Trencher (SN: 310000001 - 310999999) (2010) CARBURETOR ASSEMBLY Parts Diagram

Trencher

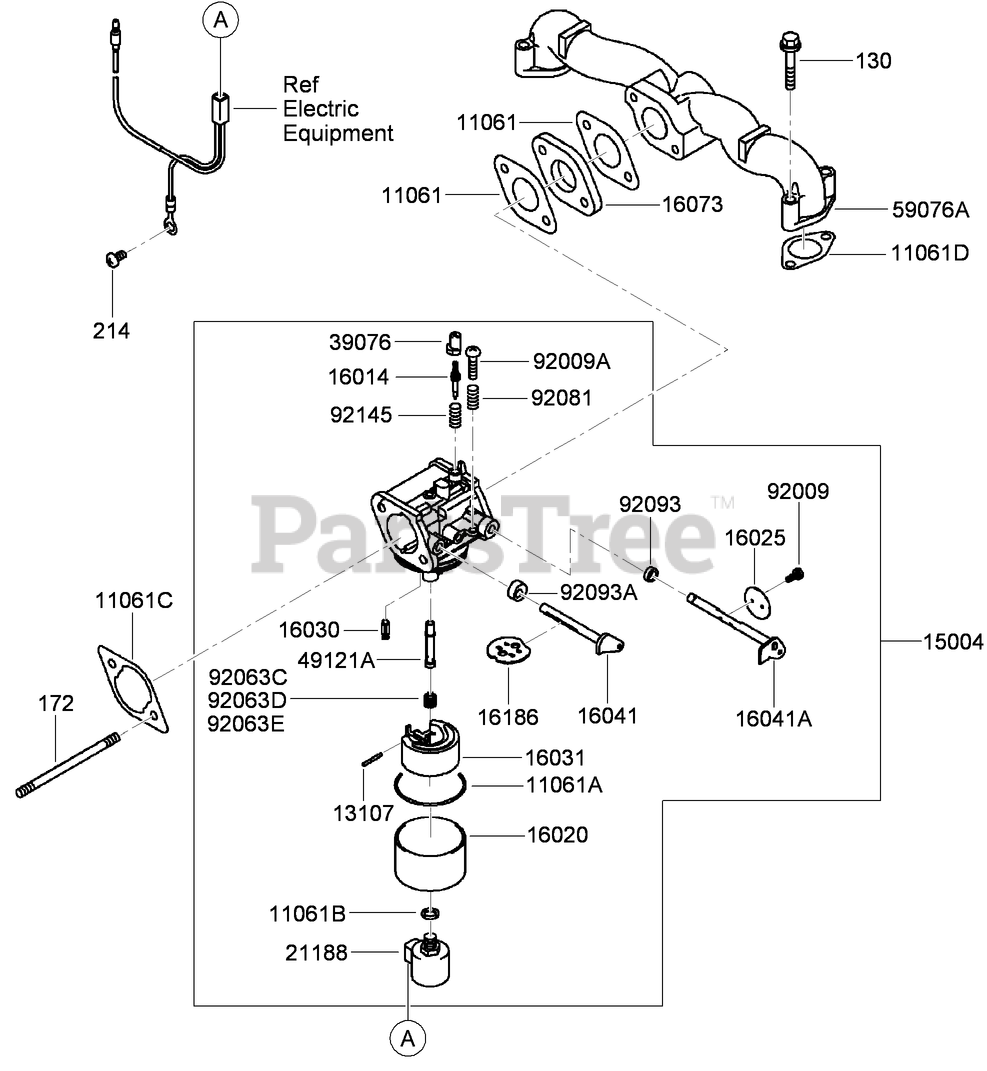

CARBURETOR ASSEMBLY Parts Diagram

  • Title

130

Toro 115-6591

BOLT-FLANGED (6X35)

$3.49

$

Usually ships in 3-6 days

0

172

Toro 115-6596

BOLT-STUD (6X90)

$7.99

$

In Stock, only 2 left!

0

214

Toro 115-6598

SCREW-PAN+- (5X10)

$

$

Not available

11061

Toro 115-6424

GASKET-INSULATOR

$5.49

$

Usually ships in 3-6 days

0

11061A

Toro 115-6425

GASKET-CHAMBER

$9.99

$

Usually ships in 3-6 days

0

11061B

Toro 108-2580

GASKET-SCREW

$12.99

$

Usually ships in 3-6 days

0

11061C

Toro 115-6426

GASKET-CLEANER, AIR

$13.99

$

Usually ships in 3-6 days

0

11061D

Toro 115-6590

GASKET

$

$

Not available

13107

Toro 115-6427

SHAFT

$13.99

$

Usually ships in 3-6 days

0

15004

Toro 119-5998

CARBURETOR-ASM

$443.99

$

In Stock, only 2 left!

0

16014

Toro 115-6593

SCREW-AIR, PILOT

$

$

Not available

16020

Toro 115-6430

CHAMBER-FLOAT

$48.99

$

Usually ships in 3-6 days

0

16025

Toro 115-6431

VALVE-THROTTLE

$57.99

$

Usually ships in 3-6 days

0

16030

Toro 115-6432

VALVE-FLOAT

$68.99

$

Usually ships in 3-6 days

0

16031

Toro 115-6433

FLOAT

$93.99

$

Usually ships in 3-6 days

0

16041

Toro 115-6434

SHAFT-CHOKE, CARBURETOR

$

$

Not available

16041A

Toro 115-6435

SHAFT-THROTTLE, CARBURETOR

$75.99

$

Usually ships in 3-6 days

0

16073

Toro 115-6594

INSULATOR

$12.99

$

Usually ships in 3-6 days

0

16186

Toro 115-6595

CHOKE VALVE ASM

$

$

Not available

21188

Toro 115-6597

SOLENOID

$554.99

$

Usually ships in 3-6 days

0

39076

Toro 108-2593

LIMITER

$33.99

$

Usually ships in 3-6 days

0

49121A

Toro 119-5999

NOZZLE-MAIN

$

$

Not available

59076A

Toro 117-6258

MANIFOLD-INTAKE

$

$

Not available

92009

Toro 108-2595

SCREW

$8.49

$

Usually ships in 3-6 days

0

92009A

Toro 108-2596

SCREW

$12.99

$

Usually ships in 3-6 days

0

92063C

Toro 117-6259

JET-MAIN, #108

$

$

Not available

92063D

Toro 117-6260

JET-MAIN, #106, 3280FT

$

$

Not available

92063E

Toro 117-6261

JET-MAIN, #104, 6560FT

$

$

Not available

92081

Toro 108-2598

SPRING

$37.99

$

Usually ships in 3-6 days

0

92093

Toro 108-2599

SEAL

$11.99

$

Usually ships in 3-6 days

0

92093A

Toro 115-6443

SEAL

$

$

Not available

92145

Toro 108-2600

SPRING

$9.99

$

Usually ships in 3-6 days

0
