22971 (TRX-19) - Toro Trencher (SN: 290000001 - 290999999) (2009) ELECTRICAL ASSEMBLY Parts Diagram

Trencher

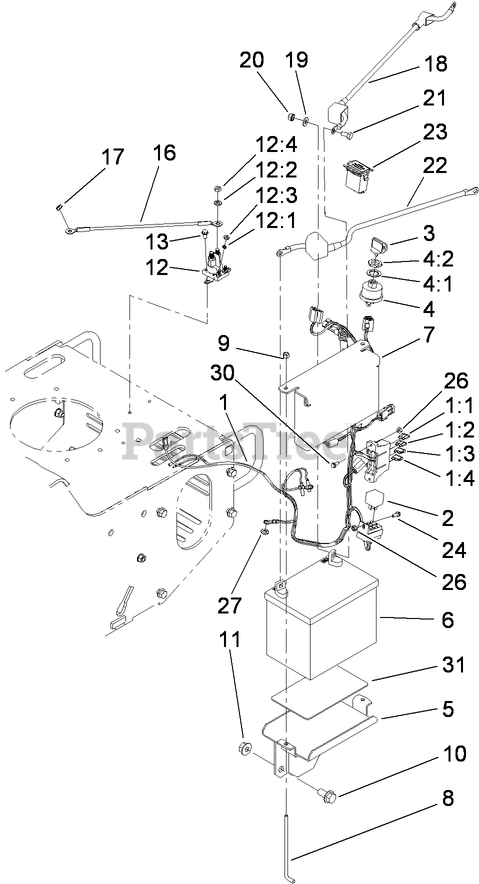

ELECTRICAL ASSEMBLY Parts Diagram

  • Title
1

Toro 114-3084

HARNESS-WIRE

$

$

Not available

1:1

Toro 109103

FUSE-BLADE, 30 AMP

$6.99

$

In Stock, Qty 6

0

1:2

Toro 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 8

0

1:3

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

1:4

Toro 116-0053

CAP-PLUG

$39.99

$

Usually ships in 3-6 days

0

2

Toro 98-7249

RELAY

$22.99

$

In Stock, only 3 left!

0

3

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

4

Toro 88-9830

Key Switch ASM
(Superseded to 104-2541)

$39.99

$

In Stock, Qty 6

0

4:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

4:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

5

Toro 105-3150-01

TRAY-BATTERY

$118.99

$

Usually ships in 3-6 days

0

6

Toro 104-8162

BATTERY-DRY

$

$

Not available

7

Toro 115-6621-03

PLATE-HOLD DOWN, BATTERY

$76.99

$

Usually ships in 3-6 days

0

8

Toro 104-8567

HOLDOWN-BATTERY

$28.99

$

Usually ships in 3-6 days

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

10

Toro 3234-6

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

11

Toro 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

12

Toro 1-513075

SWITCH-SOLENOID
(Superseded to 117-1197)

$45.99

$

In Stock, Qty 17

0

12:1

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

12:2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12:3

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

12:4

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

13

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

16

Toro 28-3891

WIRE-SOLENOID/STARTER

$28.99

$

Usually ships in 3-6 days

0

17

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

18

Toro 112-9708

CABLE-BATTERY, RED

$46.99

$

Usually ships in 3-6 days

0

19

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

21

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

22

Toro 115-4024

CABLE-BATTERY, BLACK

$

$

Not available

23

Toro 1-513374

METER-HOUR
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

24

$1.49

$

In Stock, only 4 left!

0

26

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

30

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

31

Toro 62-4300

PAD-SKID, ANTI

$19.99

$

Usually ships in 3-6 days

0
