22971 (TRX-19) - Toro Trencher (SN: 290000001 - 290999999) (2009) ELECTRIC EQUIPMENT ASSEMBLY Parts Diagram

Trencher

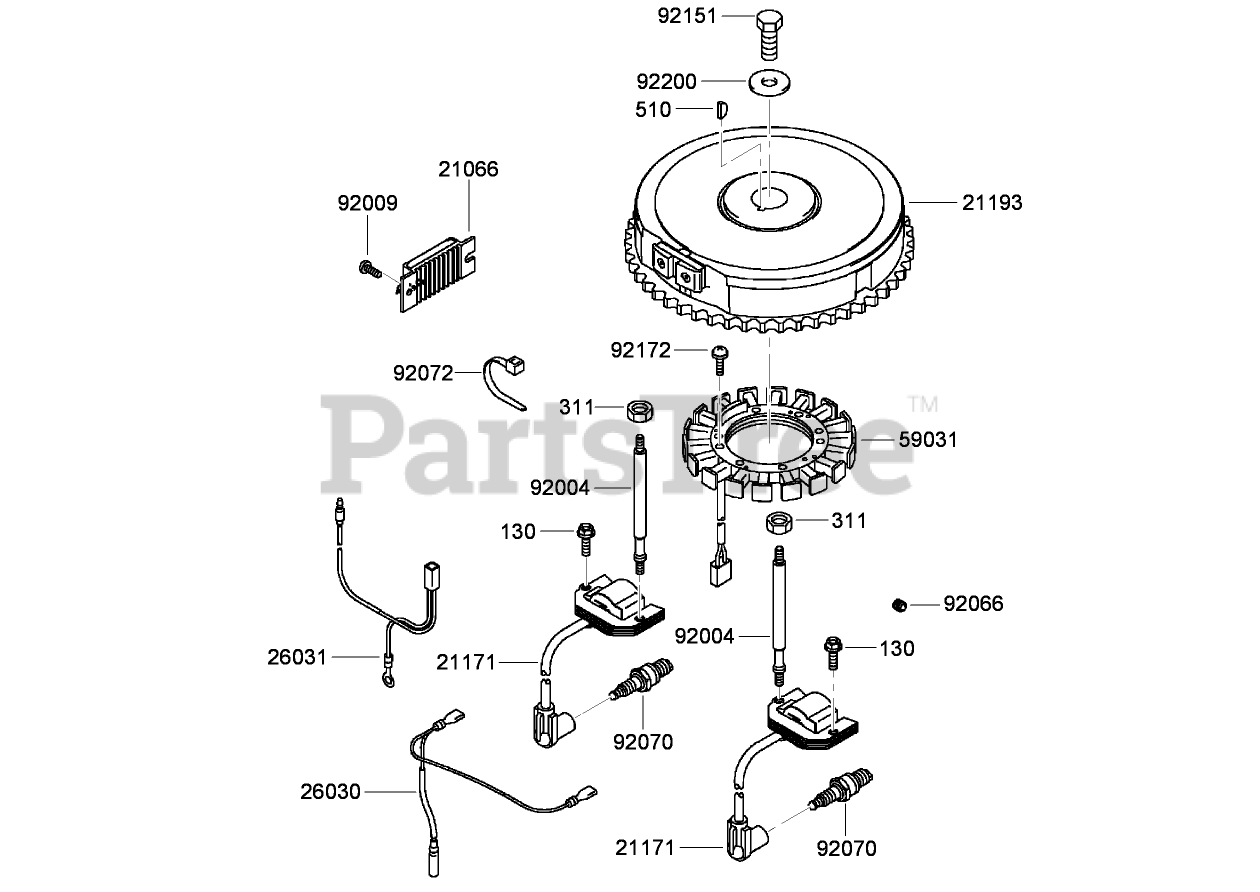

ELECTRIC EQUIPMENT ASSEMBLY Parts Diagram

  • Title

130

Toro 95-9893

BOLT-FLANGED (6X20)

$6.99

$

Usually ships in 3-6 days

0

311

Toro 114-8698

NUT-HEX (6MM)

$3.49

$

Usually ships in 3-6 days

0

510

Toro 114-8639

KEY-WOODRUFF

$7.49

$

Usually ships in 3-6 days

0

21066

Toro 115-6578

REGULATOR-VOLTAGE
(Superseded to 120-7356)

$77.99

$

In Stock, Qty 8

0

21171

Toro 115-6579

IGNITION COIL ASM

$228.99

$

Usually ships in 3-6 days

0

21193

Toro 115-6580

FLYWHEEL ASM

$704.99

$

Usually ships in 3-6 days

0

26030

Toro 115-6402

HARNESS

$30.99

$

Usually ships in 3-6 days

0

26031

Toro 115-6581

HARNESS

$

$

Not available

59031

Toro 115-6583

COIL-CHARGING

$128.99

$

In Stock, only 1 left!

0

92004

Toro 115-6584

STUD

$16.99

$

Usually ships in 3-6 days

0

92009

Toro 95-9716

SCREW

$0.99

$

Usually ships in 3-6 days

0

92066

Toro 115-6405

PLUG

$

$

Not available

92070

Toro 115-6407

SPARKPLUG

$13.99

$

Usually ships in 3-6 days

0

92072

Toro 115-6585

BAND

$3.99

$

Usually ships in 3-6 days

0

92151

Toro 115-6408

BOLT (12X30)

$10.99

$

Usually ships in 3-6 days

0

92172

Toro 115-4030

SCREW (5X20)

$0.99

$

Usually ships in 3-6 days

0

92200

Toro 115-4031

Washer (12.2X46X3)

$6.49

$

Usually ships in 3-6 days

0
