22971 G (TRX-19) - Toro Trencher (SN: 310000001 - 310999999) (2010) CYLINDER AND CRANKCASE ASSEMBLY Parts Diagram

Trencher

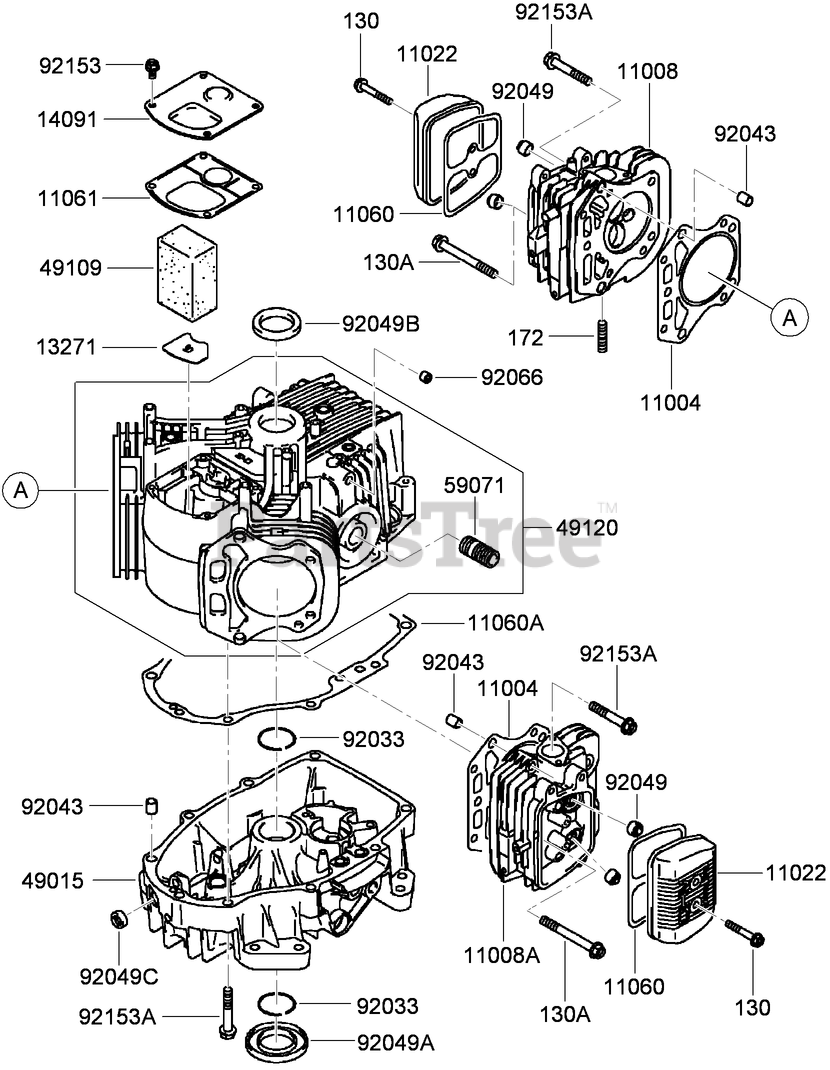

CYLINDER AND CRANKCASE ASSEMBLY Parts Diagram

  • Title

130

Toro 100-2805

BOLT-FLANGED (6X40)

$

$

Not available

130A

Toro 114-8657

BOLT-FLANGED (8X75)

$

$

Not available

172

Toro 114-8658

BOLT-STUD (8X18)

$5.49

$

Usually ships in 3-6 days

0

11004

Toro 115-6550

GASKET-HEAD

$29.99

$

Usually ships in 3-6 days

0

11008

Toro 115-6551

HEAD-CYLINDER, NO.1

$560.99

$

Usually ships in 3-6 days

0

11008A

Toro 115-6552

HEAD-CYLINDER, NO.2

$762.99

$

Usually ships in 3-6 days

0

11022

Toro 114-8643

CASE-ROCKER

$

$

Not available

11060

Toro 114-8644

GASKET-CASE, ROCKER

$13.99

$

Usually ships in 3-6 days

0

11060A

Toro 115-6553

GASKET-COVER, CRANKCASE

$18.99

$

Usually ships in 3-6 days

0

11061

Toro 115-6554

GASKET-BREATHER

$26.99

$

Usually ships in 3-6 days

0

13271

Toro 115-6555

PLATE

$7.49

$

Usually ships in 3-6 days

0

14091

Toro 115-6556

COVER

$23.99

$

Usually ships in 3-6 days

0

49015

Toro 115-6557

COVER-CRANKCASE

$470.99

$

Usually ships in 3-6 days

0

49109

Toro 115-6558

ELEMENT-BREATHER

$

$

Not available

49120

Toro 115-6559

CRANKCASE

$

$

Not available

59071

Toro 95-9715

JOINT

$19.99

$

Usually ships in 3-6 days

0

92033

Toro 115-6560

RING-SNAP

$3.49

$

Usually ships in 3-6 days

0

92043

Toro 108-2510

PIN

$

$

Not available

92049

Toro 114-8650

SEAL-OIL, RV C2 (6X11X10.2)

$13.99

$

Usually ships in 3-6 days

0

92049A

Toro 114-8651

SEAL-OIL, SD (35X62X8 L HSH)

$17.99

$

Usually ships in 3-6 days

0

92049B

Toro 114-8652

SEAL-OIL, S D (35X48X8 R HSH)

$12.99

$

Usually ships in 3-6 days

0

92049C

Toro 114-8653

SEAL-OIL, S O (8X14X5 HSH)

$3.99

$

Usually ships in 3-6 days

0

92066

Toro 115-6405

PLUG

$

$

Not available

92153

Toro 114-8655

BOLT (6X12)

$1.49

$

Usually ships in 3-6 days

0

92153A

Toro 114-8656

BOLT (8X50)

$3.99

$

Usually ships in 3-6 days

0
