22971 G (TRX-19) - Toro Trencher (SN: 310000001 - 310999999) (2010) COOLING EQUIPMENT ASSEMBLY Parts Diagram

Trencher

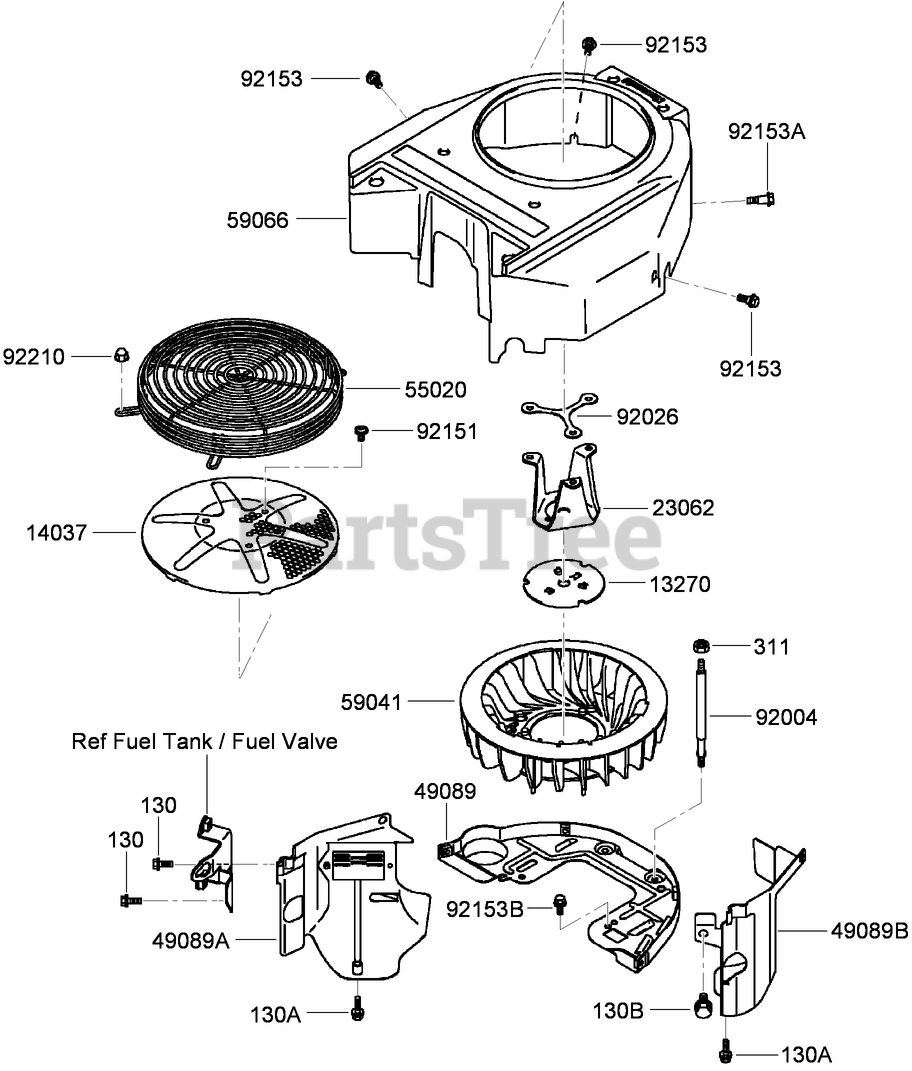

COOLING EQUIPMENT ASSEMBLY Parts Diagram

  • Title
130

Toro 95-9837

BOLT-FLANGED (6X16)

$

$

Not available

130A

Toro 93-8548

BOLT-FLANGED (6X25)
(Superseded to 100-2610)

$2.99

$

Usually ships in 3-6 days

0

130B

Toro 93-8679

BOLT-FLANGED

$

$

Not available

311

Toro 114-8698

NUT-HEX (6MM)

$3.49

$

Usually ships in 3-6 days

0

13270

$16.99

$

Usually ships in 3-6 days

0

14037

Toro 115-6568

SCREEN

$

$

Not available

23062

Toro 115-6569

BRACKET

$

$

Not available

49089

Toro 115-6570

SHROUD-ENGINE

$

$

Not available

49089A

Toro 115-6571

SHROUD-ENGINE

$

$

Not available

49089B

Toro 115-6572

SHROUD-ENGINE

$94.99

$

Usually ships in 3-6 days

0

55020

$

$

Not available

59041

$55.99

$

Usually ships in 3-6 days

0

59066

Toro 115-6574

HOUSING-FAN

$

$

Not available

92004

$

$

Not available

92026

Toro 115-6576

SPACER

$

$

Not available

92151

Toro 119-5995

BOLT, 6X12

$

$

Not available

92153

$

$

Not available

92153A

$1.99

$

Usually ships in 3-6 days

0

92153B

Toro 114-8655

BOLT (6X12)

$1.49

$

In Stock, Qty 5

0

92210

$3.49

$

Usually ships in 3-6 days

0
