22970 (TRX-15) - Toro Trencher (SN: 310000001 - 310999999) (2010) PISTON AND CRANKSHAFT ASSEMBLY Parts Diagram

Trencher

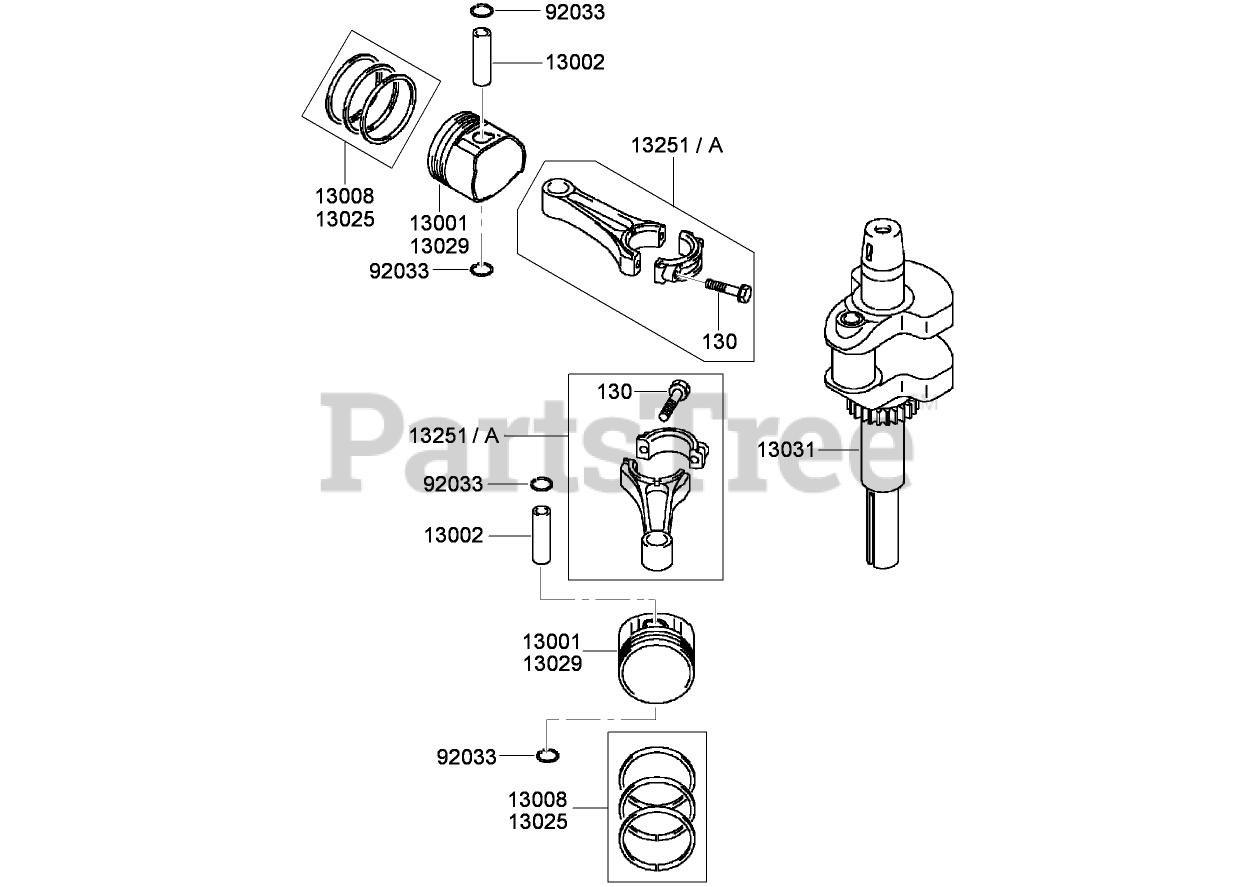

PISTON AND CRANKSHAFT ASSEMBLY Parts Diagram

  • Title
130

Toro 108-2522

BOLT-FLANGED (6X30)

$2.49

$

Usually ships in 3-6 days

0

13001

Toro 114-8659

PISTON-ENGINE

$

$

Not available

13002

Toro 108-2517

PIN-PISTON

$16.99

$

Usually ships in 3-6 days

0

13008

Toro 100-2674

SET-RING, PISTON

$

$

Not available

13025

Toro 114-8660

RING SET-PISTON (L 0.50)

$

$

Not available

13029

Toro 114-8661

PISTON-ENGINE (L 0.50)

$

$

Not available

13031

Toro 114-8662

CRANKSHAFT

$

$

Not available

13251

Toro 114-8663

CONNECTING ROD ASM

$

$

Not available

13251A

Toro 114-8664

CONNECTING ROD ASM (0.50)

$

$

Not available

92033

Toro 114-8665

RING-SNAP

$1.49

$

Usually ships in 3-6 days

0
