22970 (TRX-15) - Toro Trencher (SN: 310000001 - 310999999) (2010) PARKING BRAKE ASSEMBLY Parts Diagram

Trencher

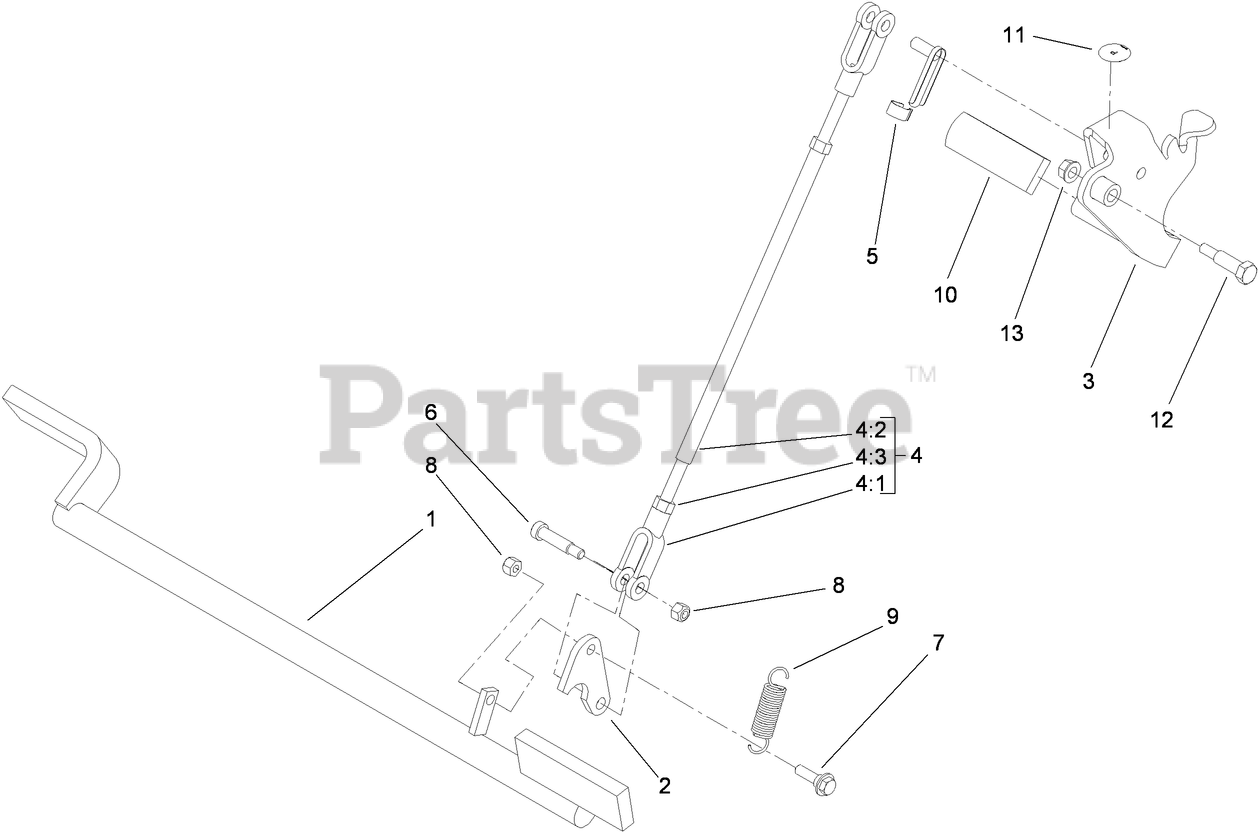

PARKING BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 114-2972-03

BAR-BRAKE

$216.99

$

Usually ships in 3-6 days

0

2

Toro 114-2975

LINK-MOUNTING

$22.99

$

Usually ships in 3-6 days

0

3

Toro 114-2957-03

BRAKE HANDLE ASM

$

$

Not available

4

Toro 103-4335

BRAKE ROD ASM

$47.99

$

Usually ships in 3-6 days

0

4:1

Toro 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 8

0

4:2

Toro 103-3907

LINKAGE-HANDLE, BRAKE

$43.99

$

Usually ships in 3-6 days

0

4:3

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

5

Toro 103-2399

Pin-Spring, Clevis

$6.49

$

In Stock, Qty 14

0

6

Toro 114-8629

BOLT-SHOULDER

$19.99

$

In Stock, only 1 left!

0

7

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

8

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 6

0

9

Toro 67-1450

SPRING-IDLER

$25.99

$

Usually ships in 3-6 days

0

10

Toro 62-9130

GRIP-HANDLE

$7.99

$

Usually ships in 3-6 days

0

11

Toro 107-8495

DECAL-PARKING BRAKE

$12.99

$

Usually ships in 3-6 days

0

12

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, only 2 left!

0

13

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0
