22970 (TRX-15) - Toro Trencher (SN: 310000001 - 310999999) (2010) CYLINDER AND CRANKCASE ASSEMBLY Parts Diagram

Trencher

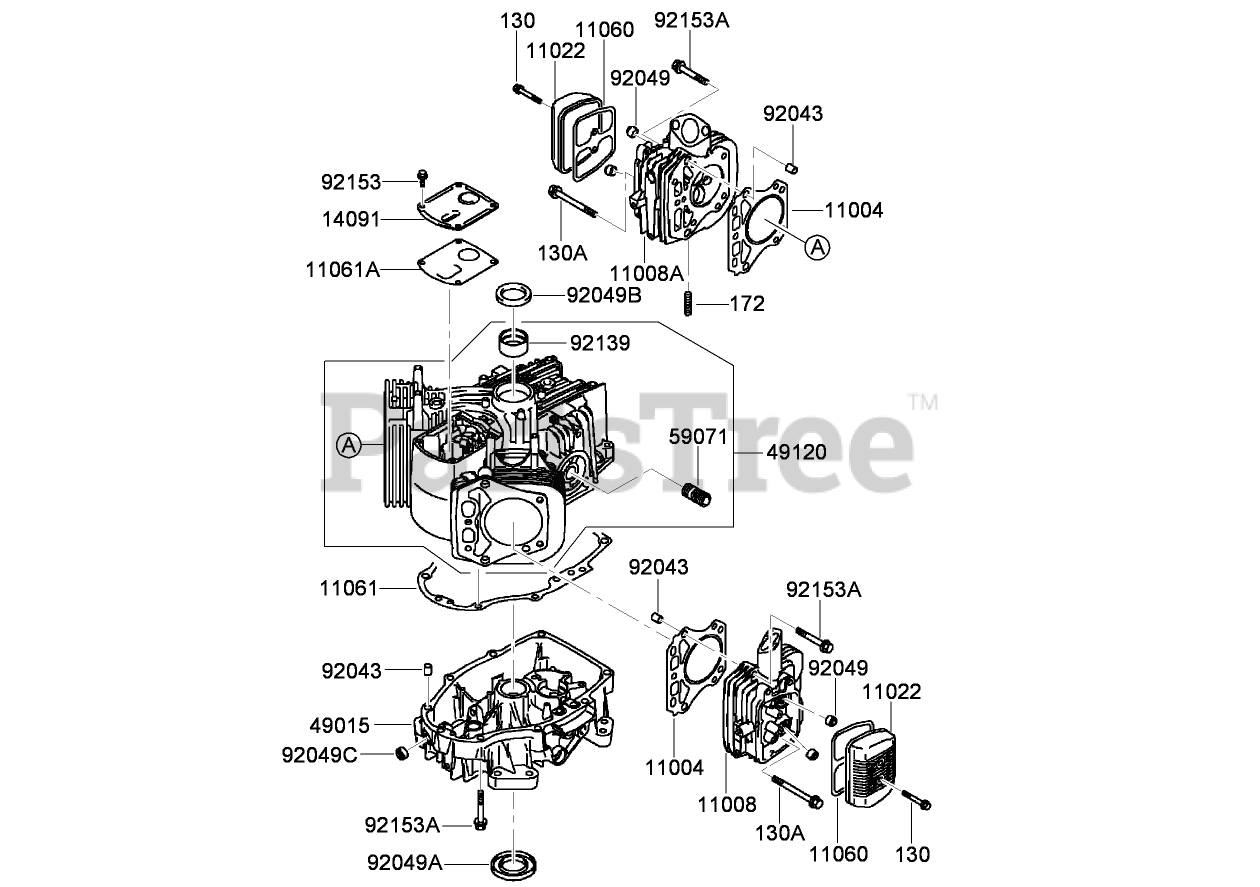

CYLINDER AND CRANKCASE ASSEMBLY Parts Diagram

  • Title

130

Toro 100-2805

BOLT-FLANGED (6X40)

$

$

Not available

130A

Toro 114-8657

BOLT-FLANGED (8X75)

$

$

Not available

172

Toro 114-8658

BOLT-STUD (8X18)

$5.49

$

Usually ships in 3-6 days

0

11004

Toro 114-8640

GASKET-HEAD

$21.99

$

Usually ships in 3-6 days

0

11008

Toro 114-8641

HEAD-CYLINDER, NO 2

$499.99

$

Usually ships in 3-6 days

0

11008A

Toro 114-8642

HEAD-CYLINDER, NO 1

$577.99

$

Usually ships in 3-6 days

0

11022

Toro 114-8643

CASE-ROCKER

$

$

Not available

11060

Toro 114-8644

GASKET-CASE, ROCKER

$13.99

$

Usually ships in 3-6 days

0

11061

Toro 114-8645

GASKET-BREATHER

$

$

Not available

11061A

Toro 114-8646

GASKET-BREATHER

$

$

Not available

14091

Toro 114-8647

COVER

$

$

Not available

49015

Toro 114-8648

COVER-CRANKCASE

$

$

Not available

49120

Toro 114-8649

CRANKCASE

$

$

Not available

59071

Toro 95-9715

JOINT

$19.99

$

Usually ships in 3-6 days

0

92043

Toro 108-2510

PIN

$

$

Not available

92049

Toro 114-8650

SEAL-OIL, RV C2 (6X11X10.2)

$13.99

$

Usually ships in 3-6 days

0

92049A

Toro 114-8651

SEAL-OIL, SD (35X62X8 L HSH)

$17.99

$

Usually ships in 3-6 days

0

92049B

Toro 114-8652

SEAL-OIL, S D (35X48X8 R HSH)

$12.99

$

Usually ships in 3-6 days

0

92049C

Toro 114-8653

SEAL-OIL, S O (8X14X5 HSH)

$3.99

$

Usually ships in 3-6 days

0

92139

Toro 114-8654

BUSHING

$44.99

$

Usually ships in 3-6 days

0

92153

Toro 114-8655

BOLT (6X12)

$1.49

$

Usually ships in 3-6 days

0

92153A

Toro 114-8656

BOLT (8X50)

$3.99

$

Usually ships in 3-6 days

0
