22970 (TRX-15) - Toro Trencher (SN: 310000001 - 310999999) (2010) CARBURETOR ASSEMBLY Parts Diagram

Trencher

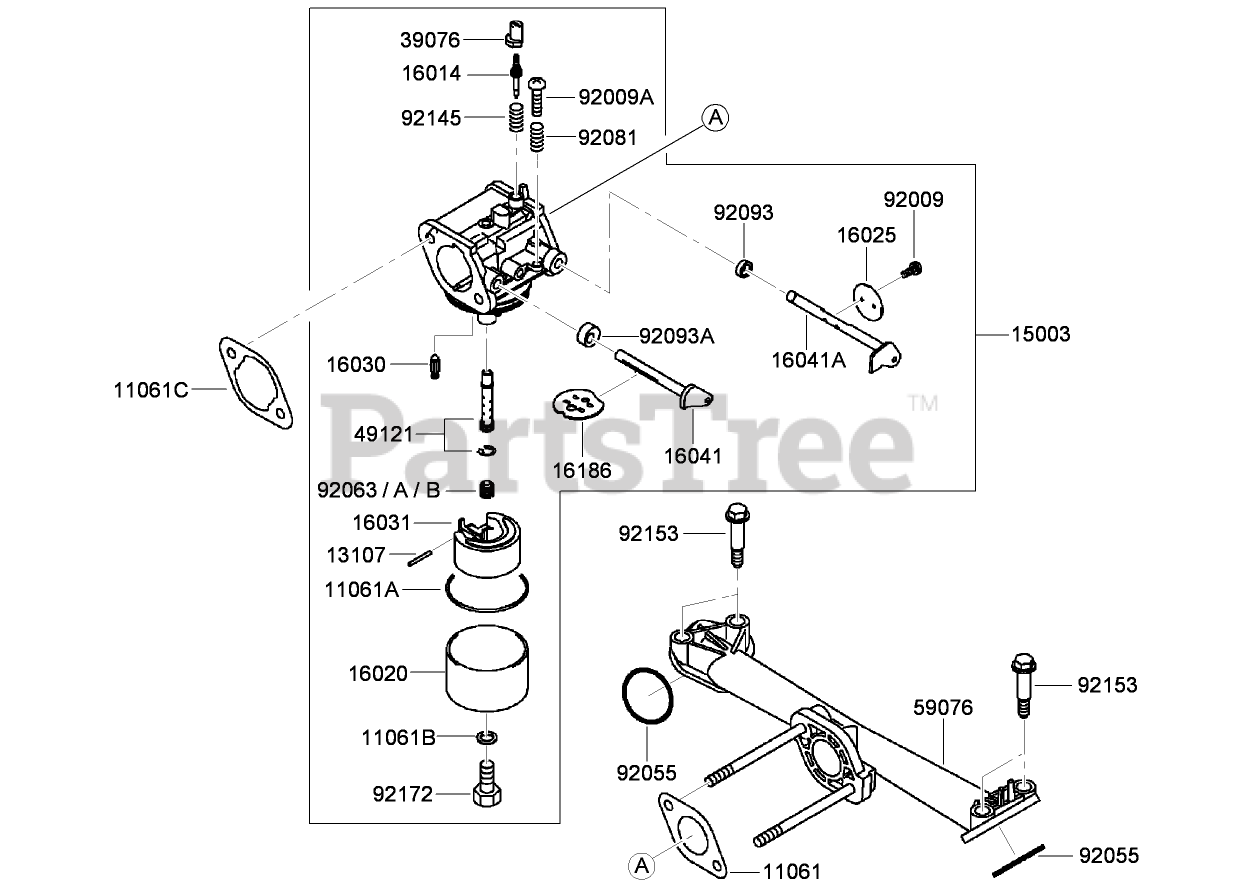

CARBURETOR ASSEMBLY Parts Diagram

  • Title

11061

Toro 115-6424

GASKET-INSULATOR

$5.49

$

Usually ships in 3-6 days

0

11061A

Toro 115-6425

GASKET-CHAMBER

$9.99

$

Usually ships in 3-6 days

0

11061B

Toro 108-2580

GASKET-SCREW

$12.99

$

Usually ships in 3-6 days

0

11061C

Toro 115-6426

GASKET-CLEANER, AIR

$13.99

$

Usually ships in 3-6 days

0

13107

Toro 115-6427

SHAFT

$13.99

$

Usually ships in 3-6 days

0

15003

Toro 115-6428

CARBURETOR ASM

$797.99

$

Usually ships in 3-6 days

0

16014

Toro 115-6429

SCREW-PILOT, AIR

$

$

Not available

16020

Toro 115-6430

CHAMBER-FLOAT

$48.99

$

Usually ships in 3-6 days

0

16025

Toro 115-6431

VALVE-THROTTLE

$57.99

$

Usually ships in 3-6 days

0

16030

Toro 115-6432

VALVE-FLOAT

$68.99

$

Usually ships in 3-6 days

0

16031

Toro 115-6433

FLOAT

$93.99

$

Usually ships in 3-6 days

0

16041

Toro 115-6434

SHAFT-CHOKE, CARBURETOR

$

$

Not available

16041A

Toro 115-6435

SHAFT-THROTTLE, CARBURETOR

$75.99

$

Usually ships in 3-6 days

0

16186

Toro 115-6436

CHOKE VALVE ASM

$

$

Not available

39076

Toro 108-2593

LIMITER

$33.99

$

Usually ships in 3-6 days

0

49121

Toro 115-6437

NOZZLE-MAIN

$

$

Not available

59076

Toro 115-6438

MANIFOLD-INTAKE

$235.99

$

Usually ships in 3-6 days

0

92009

Toro 108-2595

SCREW

$8.49

$

Usually ships in 3-6 days

0

92009A

Toro 108-2596

SCREW

$12.99

$

Usually ships in 3-6 days

0

92055

Toro 115-6439

O-RING (ID 31)

$1.99

$

Usually ships in 3-6 days

0

92063

Toro 115-6440

JET-MAIN, NO.88

$

$

Not available

92063A

Toro 115-6441

JET-MAIN, NO.85

$

$

Not available

92063B

Toro 115-6442

JET-MAIN, NO.82

$

$

Not available

92081

Toro 108-2598

SPRING

$37.99

$

Usually ships in 3-6 days

0

92093

Toro 108-2599

SEAL

$11.99

$

Usually ships in 3-6 days

0

92093A

Toro 115-6443

SEAL

$

$

Not available

92145

Toro 108-2600

SPRING

$9.99

$

Usually ships in 3-6 days

0

92153

Toro 115-6444

BOLT

$

$

Not available

92172

Toro 108-2601

SCREW

$28.99

$

Usually ships in 3-6 days

0
