22970 (TRX-15) - Toro Trencher (SN: 290000001 - 290999999) (2009) CONTROL TOWER ASSEMBLY Parts Diagram

Trencher

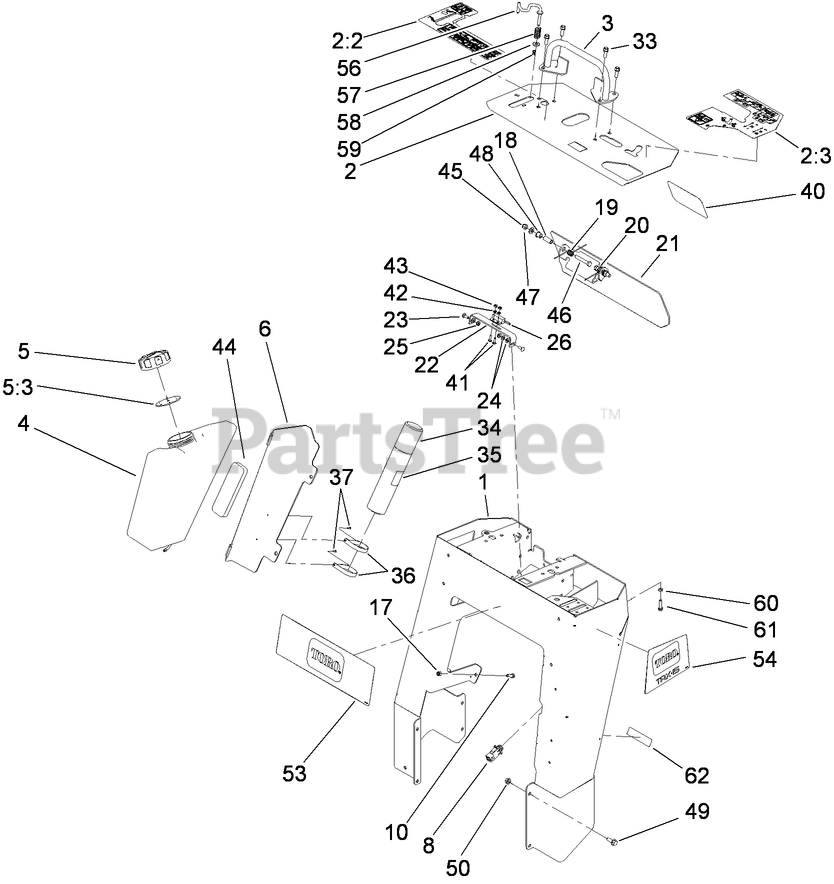

CONTROL TOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 115-4000-01

TOWER ASM
(Superseded to 117-6419-01)

$1798.99

$

Usually ships in 3-6 days

0

2

Toro 114-8633

PANEL-CONTROL

$

$

Not available

2:2

Toro 115-1231

DECAL-CONSOLE, RH

$85.99

$

Usually ships in 3-6 days

0

2:3

Toro 115-1230

DECAL-CONSOLE, LH

$84.99

$

Usually ships in 3-6 days

0

3

Toro 106-7715

BAR-REFERENCE

$207.99

$

Usually ships in 3-6 days

0

4

Toro 112-4972

TANK-FUEL

$

$

Not available

5

Toro 104-7418

CAP-FUEL, GAS

$52.99

$

In Stock, only 2 left!

0

5:3

Toro 104-7420

GASKET-VENTED

$34.99

$

Usually ships in 3-6 days

0

6

Toro 114-3065-01

BRACKET-COVER, TANK

$127.99

$

Usually ships in 3-6 days

0

8

Toro 100-1268

SWITCH-PLUNGER

$60.99

$

Usually ships in 3-6 days

0

10

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 114-1337

SPACER-SPRING

$6.99

$

Usually ships in 3-6 days

0

19

Toro 98-8425

SPRING-TORSION, LH

$30.99

$

Usually ships in 3-6 days

0

20

Toro 98-8424

SPRING-TORSION, RH

$30.99

$

Usually ships in 3-6 days

0

21

Toro 114-3012-03

PLATE-REVERSE

$162.99

$

Usually ships in 3-6 days

0

22

Toro 100-1263

PLATE-SWITCH

$39.99

$

Usually ships in 3-6 days

0

23

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

24

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

26

Toro 100-1270

SWITCH-PROXIMITY

$115.99

$

Usually ships in 3-6 days

0

33

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

34

Toro 104-7048

CAP-HOUSING

$5.49

$

Usually ships in 3-6 days

0

35

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

36

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

37

Toro 3269-17

RIVET-POP

$1.99

$

Usually ships in 3-6 days

0

40

Toro 105-1217

DECAL

$40.99

$

In Stock, Qty 8

0

41

Toro 3229-20

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

42

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

43

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, only 3 left!

0

44

Toro 107-7507

PAD-FOAM

$7.99

$

Usually ships in 3-6 days

0

45

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

46

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

47

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

48

Toro 256-257

BUSHING-NYLINER

$3.99

$

In Stock, Qty 20+

0

49

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

50

Toro 32128-40

NUT-FLANGE

$7.49

$

Usually ships in 3-6 days

0

53

Toro 115-4004

DECAL

$

$

Not available

54

Toro 115-4005

DECAL

$

$

Not available

56

Toro 114-8727

ROD-INTERLOCK

$82.99

$

Usually ships in 3-6 days

0

57

Toro 85-6750

SPRING-CONTROL

$10.99

$

Usually ships in 3-6 days

0

58

Toro 88-7200

WASHER-FLAT

$3.49

$

Usually ships in 3-6 days

0

59

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

60

Toro 3210-7

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

61

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

62

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0
