22970 (TRX-15) - Toro Trencher (SN: 280000201 - 280999999) (2008) CONTROL ASSEMBLY Parts Diagram

Trencher

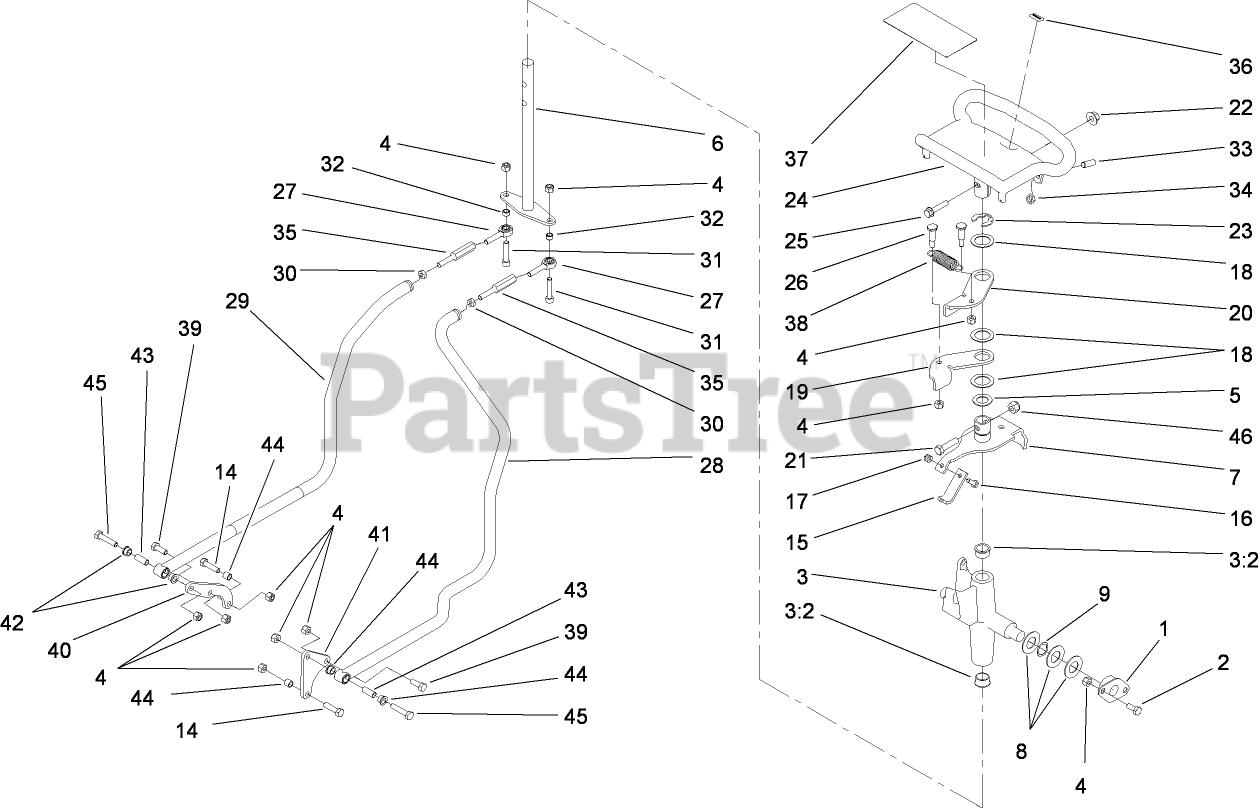

CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 68-2970

BUSHING

$28.99

$

Usually ships in 3-6 days

0

2

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 106-5737

CONTROL SUPPORT ASM

$234.99

$

Usually ships in 3-6 days

0

3:2

Toro 256-252

BEARING-FLANGE

$6.99

$

Usually ships in 3-6 days

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 257-8

WASHER-THRUST

$5.49

$

Usually ships in 3-6 days

0

6

Toro 106-5745

DRIVE ROD ASM

$88.99

$

Usually ships in 3-6 days

0

7

Toro 112-2783

LEVER-PIVOT

$170.99

$

Usually ships in 3-6 days

0

8

Toro 3256-39

WASHER-FLAT

$1.49

$

In Stock, only 3 left!

0

9

Toro 95-3703

WASHER-SPRING, WAVE

$4.49

$

Usually ships in 3-6 days

0

14

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

15

Toro 115-1204

PLATE-NEUTRAL

$25.99

$

Usually ships in 3-6 days

0

16

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

18

Toro 108-9743

WASHER-PLAIN

$4.49

$

Usually ships in 3-6 days

0

19

Toro 98-8407

LEVER-RETURN, RH

$76.99

$

Usually ships in 3-6 days

0

20

Toro 98-8408

LEVER-RETURN, LH

$87.99

$

Usually ships in 3-6 days

0

21

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

23

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

0

24

Toro 106-7614-03

HANDLE-CONTROL
(Superseded to 120-5380-03)

$268.99

$

In Stock, only 1 left!

0

25

Toro 3234-18

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

26

Toro 63-2650

SCREW-SHOULDER

$7.99

$

In Stock, only 2 left!

0

27

Toro 2411-53

BEARING-ROD END, LH

$37.99

$

In Stock, only 2 left!

0

28

Toro 114-2901

ROD-CONTROL, LH

$196.99

$

Usually ships in 3-6 days

0

29

Toro 114-2902

ROD-CONTROL, RH

$196.99

$

Usually ships in 3-6 days

0

30

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

31

Toro 3274-83

SCREW-HSH

$3.99

$

In Stock, only 2 left!

0

32

Toro 92-3133

SPACER-LEVER, TRACTION

$3.99

$

In Stock, Qty 5

0

33

Toro 3247-6

SCREW-SET

$1.49

$

Usually ships in 3-6 days

0

34

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

35

Toro 114-3095

LINK-CONTROL

$52.99

$

Usually ships in 3-6 days

0

36

Toro 98-1459

DECAL

$4.99

$

Usually ships in 3-6 days

0

37

Toro 115-4020

DECAL-TRACTION

$28.99

$

Usually ships in 3-6 days

0

38

Toro 108-4724

SPRING-EXTENSION

$13.99

$

In Stock, only 2 left!

0

39

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

40

Toro 115-1290

PLATE-ADAPTER, CONTROL, RH

$25.99

$

Usually ships in 3-6 days

0

41

Toro 115-1291

PLATE-ADAPTER, CONTROL, LH

$16.99

$

Usually ships in 3-6 days

0

42

Toro 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, only 4 left!

0

43

Toro 115-1293

SPACER
(Superseded to 114-8629)

$19.99

$

In Stock, only 1 left!

0

44

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

45

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

46

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0
