22970 (TRX-15) - Toro Trencher (SN: 280000001 - 280000200) (2008) TRENCHER ASSEMBLY Parts Diagram

Trencher

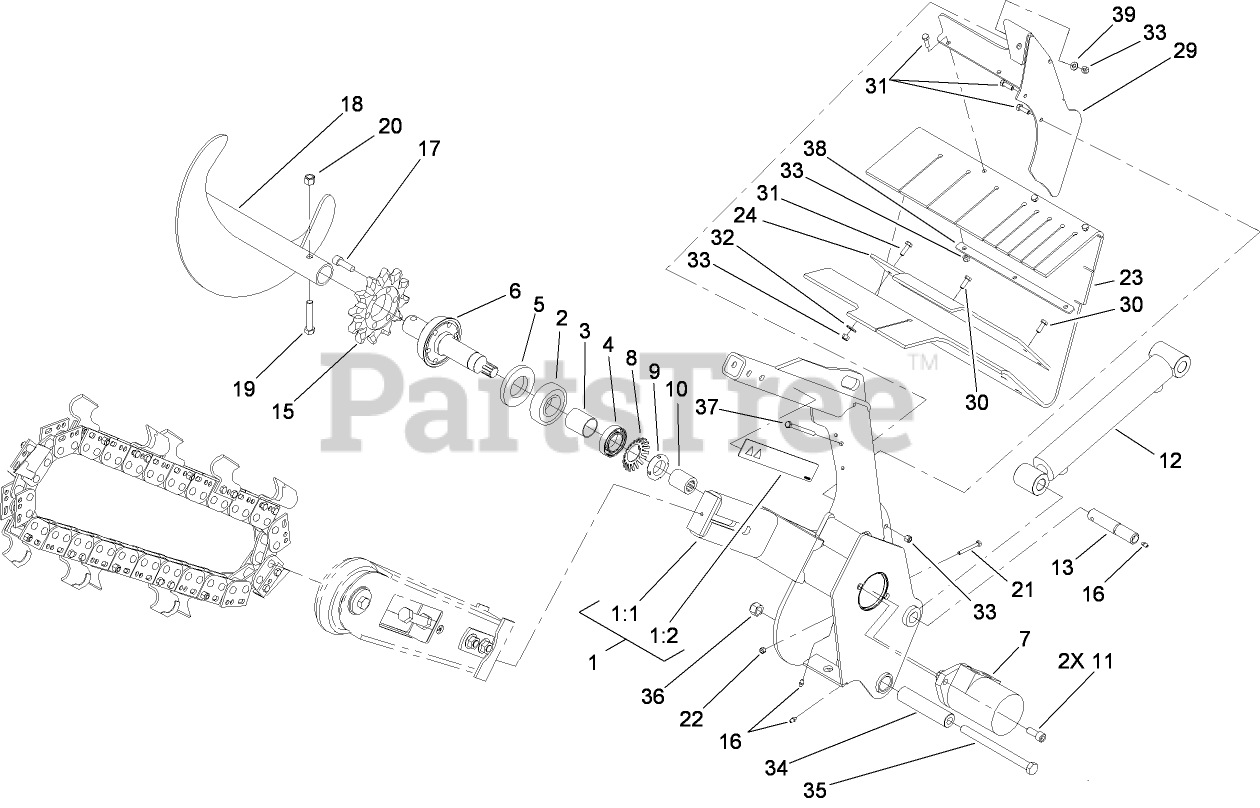

TRENCHER ASSEMBLY Parts Diagram

  • Title

1

Toro 114-8631

TRENCHER HEAD ASM

$

$

Not available

1:1

Toro 112-4980-03

HEAD-TRENCHER
(Superseded to 114-8631)

$

$

Not available

1:2

Toro 99-9952

DECAL-DANGER

$24.99

$

Usually ships in 3-6 days

0

2

Toro 106-8871

BEARING-BALL

$37.99

$

In Stock, only 1 left!

0

3

Toro 112-4979

SPACER

$16.99

$

In Stock, only 1 left!

0

4

Toro 111199

BEARING-BALL

$125.99

$

In Stock, only 3 left!

0

5

Toro 114-2955

SEAL-GREASE

$93.99

$

In Stock, only 1 left!

0

6

Toro 112-4993

SHAFT-TRENCHER

$809.99

$

Usually ships in 3-6 days

0

7

Toro 114-3053

MOTOR-HYD
(Superseded to 131-0667)

$1368.99

$

Usually ships in 3-6 days

0

7:1

Toro 106-1989

SEAL KIT

Note: Not illustrated

$175.99

$

Usually ships in 3-6 days

0

8

Toro 114-2956

LOCKWASHER-BEARING

$39.99

$

In Stock, only 1 left!

0

9

Toro 88-1450

LOCKNUT-BEARING

$48.99

$

In Stock, only 1 left!

0

10

Toro 114-2954

SPLINE-COLLAR

$71.99

$

Usually ships in 3-6 days

0

11

Toro 3274-89

SCREW-HSH

$10.99

$

Usually ships in 3-6 days

0

12

Toro 112-2602

HYD CYLINDER ASM

$1491.99

$

Usually ships in 3-6 days

0

12:1

Toro 107-1183

SEAL KIT

Note: Not illustrated

$219.99

$

Usually ships in 3-6 days

0

13

Toro 114-2937

PIN-PIVOT
(Superseded to 120-7352)

$86.99

$

In Stock, only 1 left!

0

15

Toro 104-1964

SPROCKET-TRENCHER

$307.99

$

Usually ships in 3-6 days

0

16

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

17

Toro 3274-4

SCREW-HSH

$2.99

$

In Stock, Qty 10

0

18

Toro 112-4996-03

TRENCHER AUGER ASM

$489.99

$

Usually ships in 3-6 days

0

19

Toro 325-11

SCREW-HH

$2.99

$

In Stock, Qty 7

0

20

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

21

Toro 321-18

SCREW-HH

$2.49

$

In Stock, only 3 left!

0

22

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

23

Toro 114-8569

SHIELD-DIRT

$451.99

$

Usually ships in 3-6 days

0

24

Toro 115-1220-03

BAR-CLAMP

$123.99

$

Usually ships in 3-6 days

0

29

Toro 115-1279-03

BRACKET-SHIELD

$221.99

$

Usually ships in 3-6 days

0

30

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

31

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Toro 114-8573

SPACER-PIVOT

$71.99

$

Usually ships in 3-6 days

0

35

Toro 1-800861

SCREW-CAP, HH

$19.99

$

In Stock, only 2 left!

0

36

Toro 3296-41

NUT-LOCK NI

$6.49

$

In Stock, Qty 9

0

37

Toro 322-23

SCREW-HH
(Superseded to 321-9)

$4.99

$

Usually ships in 3-6 days

0

38

Toro 115-4001-03

PLATE-STRAP, SHIELD

$26.99

$

Usually ships in 3-6 days

0

39

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
