22970 (TRX-15) - Toro Trencher (SN: 280000001 - 280000200) (2008) HYDRAULIC ROUTING ASSEMBLY Parts Diagram

Trencher

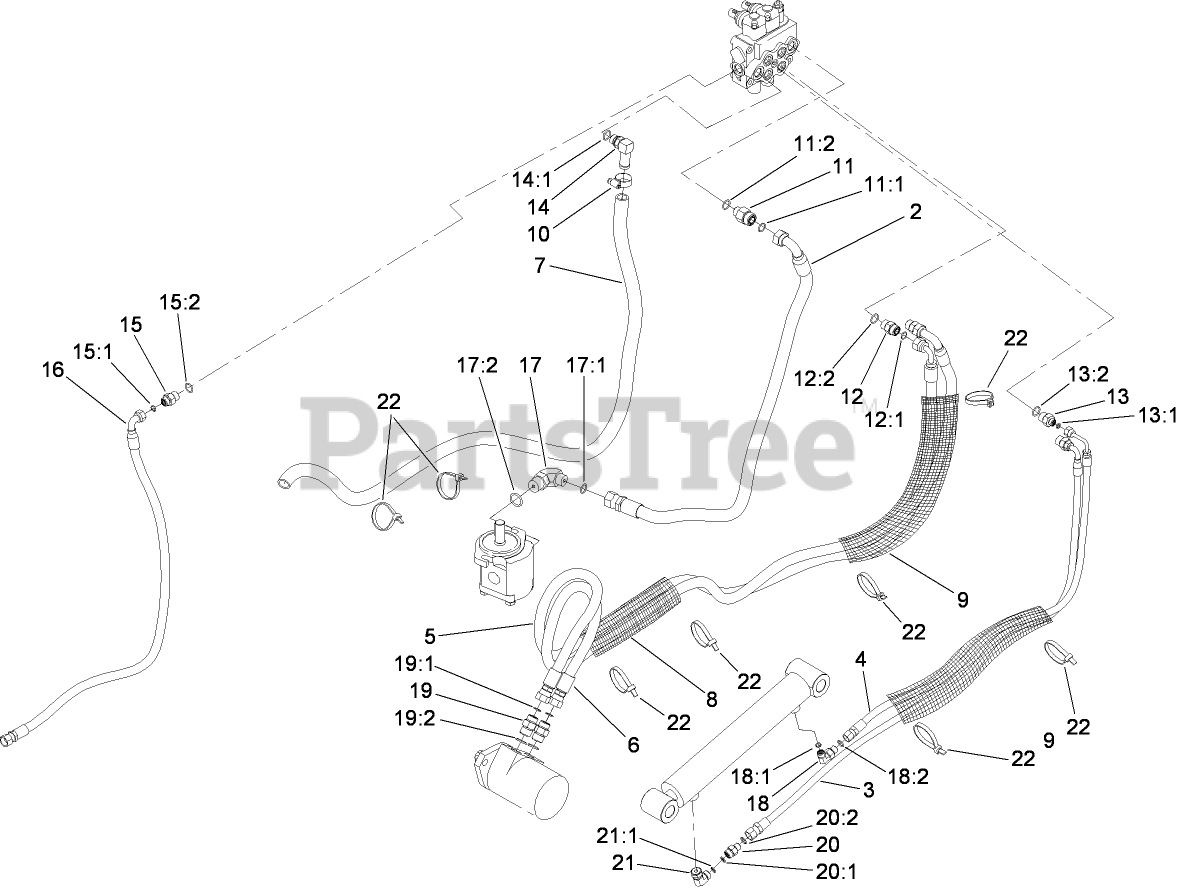

HYDRAULIC ROUTING ASSEMBLY Parts Diagram

  • Title

2

Toro 114-3043

HOSE-HYD

$271.99

$

Usually ships in 3-6 days

0

3

Toro 114-3044

HOSE-HYD

$109.99

$

Usually ships in 3-6 days

0

4

Toro 114-3045

HOSE-HYD

$117.99

$

Usually ships in 3-6 days

0

5

Toro 114-3046

HOSE-HYD

$151.99

$

Usually ships in 3-6 days

0

6

Toro 114-3085

HOSE-HYD

$195.99

$

Usually ships in 3-6 days

0

7

Toro 114-3047

HOSE-RETURN

$

$

Not available

8

Toro 99-5648

SLEEVE-PROTECTIVE

$93.99

$

Usually ships in 3-6 days

0

9

Toro 100-6128

SLEEVE-PROTECTIVE

$46.99

$

Usually ships in 3-6 days

0

10

Toro 2412-129

CLAMP-HOSE

$5.49

$

In Stock, Qty 7

0

11

Toro 340-155

FITTING-STR

$30.99

$

Usually ships in 3-6 days

0

11:1

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

11:2

Toro 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

0

12

Toro 340-4

FITTING-STRAIGHT

$12.99

$

In Stock, only 3 left!

0

12:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

12:2

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

13

Toro 340-133

FITTING-STR

$47.99

$

Usually ships in 3-6 days

0

13:1

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

13:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 9

0

14

Toro 353-954

FITTING-ELB 90

$75.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

15

Toro 340-3

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

15:2

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

16

Toro 115-1296

HYD HOSE ASM

$

$

Not available

17

Toro 340-139

FITTING-ELBOW 90

$170.99

$

Usually ships in 3-6 days

0

17:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

17:2

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 20+

0

18

Toro 340-82

FITTING-ELBOW 90

$24.99

$

In Stock, only 2 left!

0

18:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

18:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 9

0

19

Toro 340-6

FITTING-STRAIGHT

$20.99

$

Usually ships in 3-6 days

0

19:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

19:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0

20

Toro 114-7783

FITTING-STRAIGHT

$67.99

$

Usually ships in 3-6 days

0

20:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

20:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

21

Toro 340-159

FITTING-HYD, 90 DEG

$66.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

22

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0
