22970 G (TRX-15) - Toro Trencher (SN: 310000001 - 310999999) (2010) ENGINE ASSEMBLY Parts Diagram

Trencher

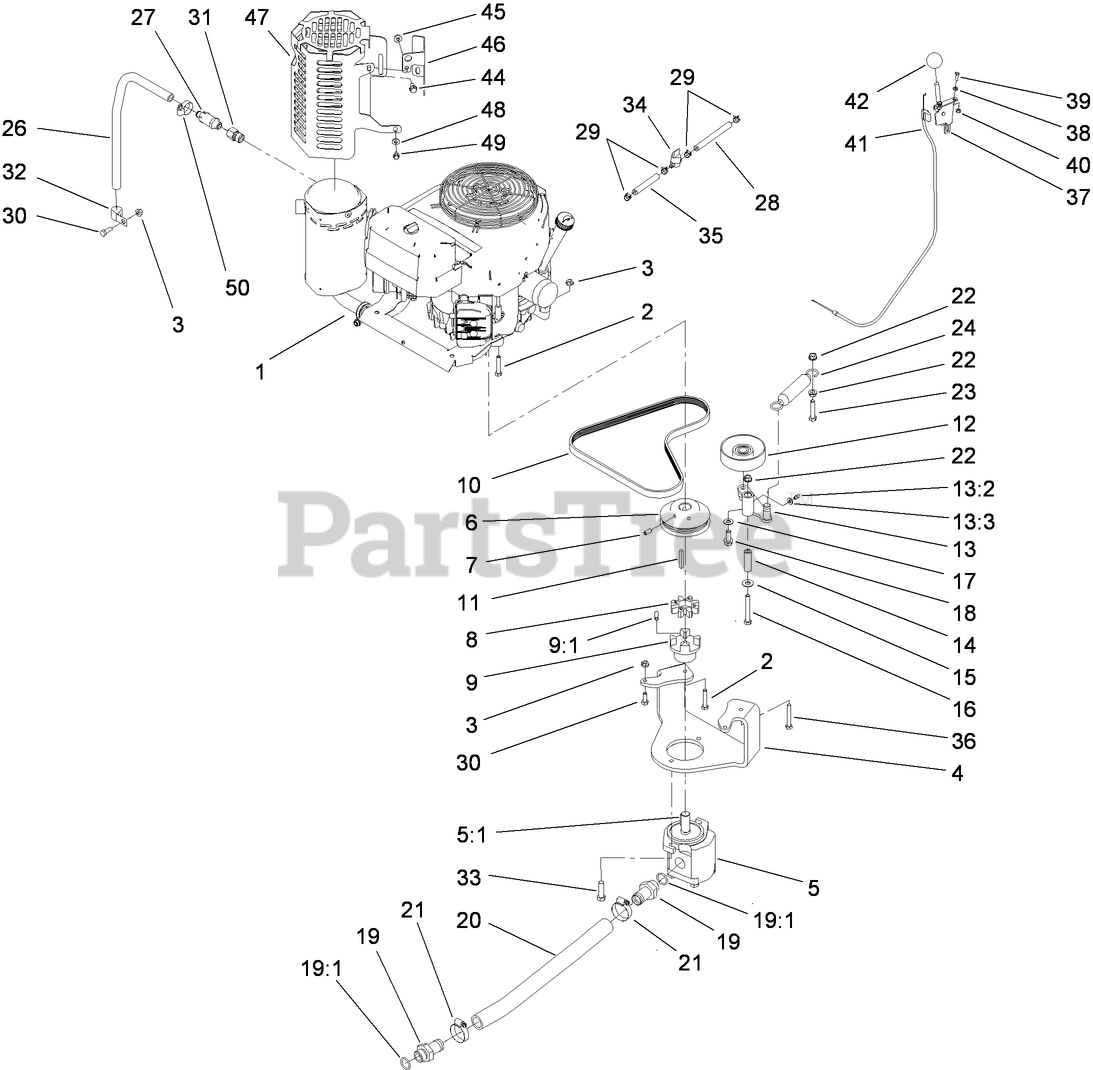

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 114-3070

ENGINE ASM

$

$

Not available

2

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

3

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

4

Toro 114-2912-01

MOUNT-PUMP

$455.99

$

Usually ships in 3-6 days

0

5

Toro 114-3072

GEAR PUMP ASM

$1184.99

$

Usually ships in 3-6 days

0

5:1

Toro 104-5839

KEY-SQUARE

$69.99

$

Usually ships in 3-6 days

0

5:2

Toro 115-1265

SEAL KIT

Note: Not illustrated

$119.99

$

Usually ships in 3-6 days

0

6

Toro 114-8559-03

PULLEY-ENGINE

$244.99

$

Usually ships in 3-6 days

0

7

Toro 3246-6

SCREW-SET, HSH

$7.49

$

Usually ships in 3-6 days

0

8

Toro 93-8827

COUPLER-SPIDER

$46.99

$

Usually ships in 3-6 days

0

9

Toro 114-2933

COUPLER-FLEX

$119.99

$

Usually ships in 3-6 days

0

9:1

Toro 100-7594

SCREW-SET

$2.99

$

Usually ships in 3-6 days

0

10

Toro 114-2991

BELT-V

$60.99

$

Usually ships in 3-6 days

0

11

Toro 608006

KEY-SQUARE

$5.49

$

Usually ships in 3-6 days

0

12

Toro 95-8802

PULLEY-IDLER

$74.99

$

Usually ships in 3-6 days

0

13

Toro 114-2915

IDLER ARM ASM

$212.99

$

Usually ships in 3-6 days

0

13:2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

13:3

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 114-2916

BUSHING-IDLER

$28.99

$

In Stock, only 1 left!

0

15

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

16

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

19

Toro 99-3017

FITTING

$88.99

$

In Stock, only 1 left!

0

19:1

Toro 237-81

O-RING

$2.99

$

In Stock, Qty 5

0

20

Toro 114-2917

HOSE-SUCTION

$96.99

$

In Stock, only 1 left!

0

21

Toro 2412-111

CLAMP

$4.99

$

Usually ships in 3-6 days

0

22

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 66-4270

Spring-Extension

$41.99

$

Usually ships in 3-6 days

0

26

Toro 106-5709

HOSE-VENT

$26.99

$

Usually ships in 3-6 days

0

27

Toro 92-6877

VALVE-DRAIN, OIL

$39.99

$

In Stock, only 1 left!

0

28

Toro 109-0306

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

29

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

30

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

31

Toro 103-1966

Adapter

$18.99

$

In Stock, only 1 left!

0

32

Toro 2412-81

CLAMP-R

$4.49

$

Usually ships in 3-6 days

0

33

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

34

Toro 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 14

0

35

Toro 109-0295

HOSE-FUEL

$2.99

$

Usually ships in 3-6 days

0

36

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

37

Toro 108-9730

LEVER-CONTROL

$40.99

$

Usually ships in 3-6 days

0

38

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

39

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 10

0

40

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

41

Toro 115-1211

CABLE-CONTROL

$26.99

$

In Stock, only 2 left!

0

42

Toro 233-42

KNOB

$13.99

$

In Stock, only 4 left!

0

44

Toro 3234-14

SCREW-HHF

$1.99

$

In Stock, Qty 20+

0

45

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

46

Toro 115-6633-03

BRACKET-GUARD, MUFFLER

$48.99

$

Usually ships in 3-6 days

0

47

Toro 114-8748-03

MUFFLER SHIELD ASM

$278.99

$

Usually ships in 3-6 days

0

48

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

49

Toro 33103-016

SCREW-HHF

$5.99

$

In Stock, Qty 13

0

50

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0
