22965x8B - Scotts 22" Walk-Behind Mower (2001) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

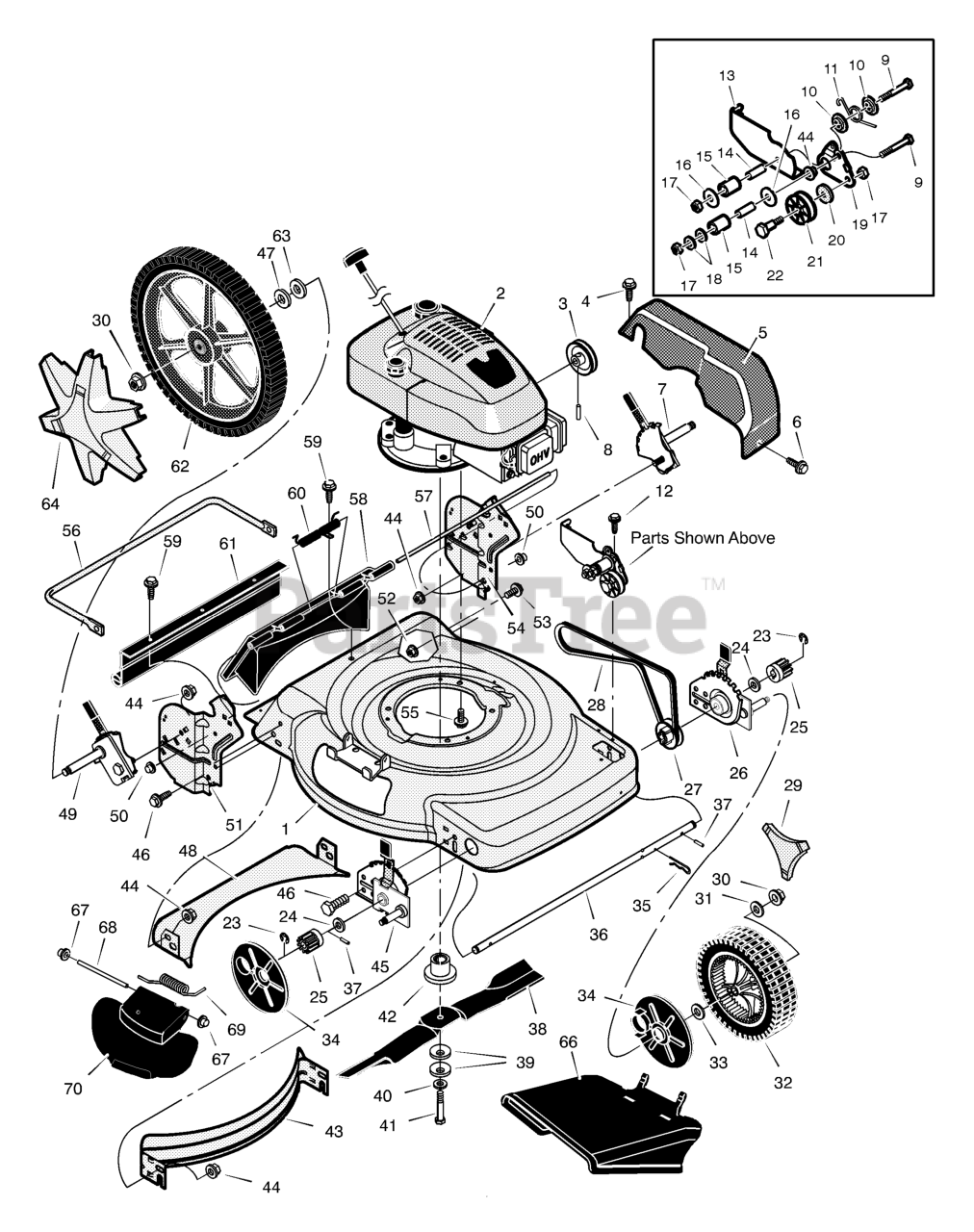

Mower Housing Assembly Parts Diagram

  • Title
1

Murray 7501002

Housing

$

$

Currently unavailable

2

Engine

$

$

Not available

3

Murray 071434MA

Pulley, Drive

$16.99

$

Usually ships in 2-12 days

0

4

$

$

Not available

5

Murray 1101080

Cover, Belt (Gray)

$

$

Not available

6

$3.49

$

Usually ships in 2-12 days

0

7

Murray 1101101MA

Adjuster, Left Rear Height

$34.99

$

Usually ships in 2-12 days

0

8

Murray 032X64MA

Pin, Spring

$3.99

$

Usually ships in 2-12 days

0

$3.99

$

Usually ships in 2-12 days

0

10

Murray 071789MA

Spacer, Idler Arm

$3.99

$

Usually ships in 2-12 days

0

11

$3.99

$

Usually ships in 2-12 days

0

12

Murray 26X217MA

Screw
(Superseded to 703961)

$4.49

$

In Stock, Qty 20+

0

13

Murray 672751 Z

Bracket, Idler Support

$

$

Currently unavailable

14

Murray 071793MA

Bearing, Idler

$4.99

$

In Stock, Qty 6

0

15

Murray 672754MA

Pulley, Idler

$8.49

$

In Stock, only 4 left!

0

16

$

$

Not available

17

Murray 015X43MA

Nut
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

18

Murray 17X102MA

Washer
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

19

Murray 1101121 Z

Arm, Pivot

$

$

Currently unavailable

20

Murray 071788MA

Spacer, Idler

$3.99

$

Usually ships in 2-12 days

0

21

Murray 071779MA

Pulley, Idler

$

$

Not available

22

Murray 009X50MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

23

$3.99

$

Usually ships in 2-12 days

0

24

$

$

Not available

25

Murray 071792MA

Gear, Pinion

$18.99

$

In Stock, only 1 left!

0

26

Murray 1101079MA

Adjuster, Left Front Height

$62.99

$

Usually ships in 2-12 days

0

27

Murray 071791MA

Pulley, Axle

$16.99

$

Usually ships in 2-12 days

0

28

$20.99

$

In Stock, Qty 5

0

29

Murray 672805MA

Cap, Hub
(Superseded to 672446MA)

$5.99

$

Usually ships in 2-12 days

0

30

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

31

Murray 17X169MA

Washer
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

32

Murray 672441MA

Wheel & Tire, Front

$54.99

$

Usually ships in 2-12 days

0

33

$3.49

$

Usually ships in 2-12 days

0

34

Murray 071780MA

Cover, Dust

$5.99

$

Usually ships in 2-12 days

0

35

Murray 0031X9MA

Pin, Hair

$3.49

$

Usually ships in 2-12 days

0

36

$34.99

$

Usually ships in 2-12 days

0

37

Murray 043629MA

Pin, Drive

$5.99

$

In Stock, only 3 left!

0

$

$

Not available

39

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

40

$4.49

$

Usually ships in 2-12 days

0

41

$4.49

$

Usually ships in 2-12 days

0

42

Murray 672503MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

43

Murray 672915E700

Baffle, Front

$

$

Currently unavailable

44

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

45

Murray 1101078MA

Adjuster, Right Front Height

$62.99

$

Usually ships in 2-12 days

0

46

$3.99

$

Usually ships in 2-12 days

0

47

$4.49

$

Usually ships in 2-12 days

0

48

Murray 672916E700

Baffle, Rear

$

$

Currently unavailable

49

Murray 1101100MA

Adjuster, Right Rear Height

$35.99

$

Usually ships in 2-12 days

0

50

Murray 028X49MA

Push On Cap

$3.99

$

In Stock, Qty 13

0

51

Murray 1101244E122MA

Bracket, Right Handle
(Superseded to 1101244E701MA)

$22.99

$

Usually ships in 2-12 days

0

52

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

53

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

54

Murray 1101245E122MA

Bracket, Left Handle
(Superseded to 1101245E701MA)

$86.99

$

Usually ships in 2-12 days

0

55

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

$

$

Currently unavailable

57

Murray 215X21MA

Rod, Pivot

$7.99

$

Usually ships in 2-12 days

0

58

Murray 1101131

Door, Rear (Gray)

$

$

Currently unavailable

59

$4.49

$

In Stock, Qty 6

0

60

$14.99

$

In Stock, only 1 left!

0

61

Murray 1101105MA

Guard, Rear
(Superseded to 7103347YP)

$

$

Not available

62

Murray 672801MA

Wheel & Tire, Rear

$101.99

$

Usually ships in 2-12 days

0

63

$5.49

$

In Stock, Qty 11

0

64

Murray 672800MA

Cap, Hub

$25.99

$

Usually ships in 2-12 days

0

66

Murray 672917MA

Deflector, Chute

$35.99

$

Usually ships in 2-12 days

0

67

Murray 028X42MA

Push On Cap

$3.99

$

Usually ships in 2-12 days

0

68

Murray 215X19 Z

Rod, Pivot

$

$

Currently unavailable

69

Murray 166X38MA

Spring, Torsion

$4.99

$

In Stock, only 2 left!

0

70

Murray 672920MA

Cover, Mulch (Gray)

$24.99

$

Usually ships in 2-12 days

0

--

Murray F-010408J

Instruction Book

$

$

Currently unavailable
