22965x8B - Scotts 22" Walk-Behind Mower (2001) Handle Assembly Parts Diagram

22" Walk-Behind Mower

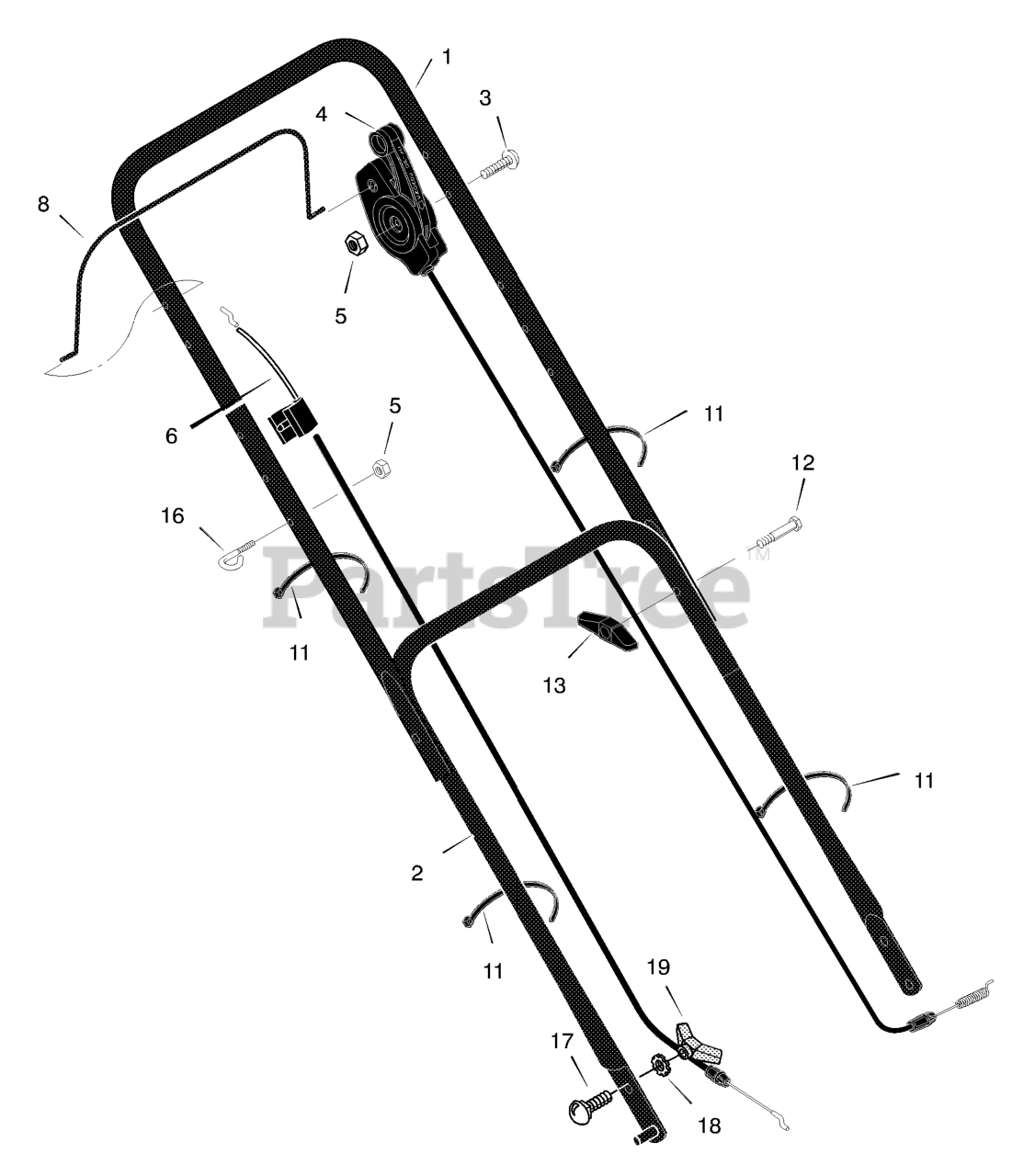

Handle Assembly Parts Diagram

  • Title
1

Murray 1101099E724

Handle, Upper

$

$

Not available

2

Murray 672906E724MA

Handle, Lower
(Superseded to 672906E701MA)

$142.99

$

Usually ships in 2-12 days

0

$3.99

$

Usually ships in 2-12 days

0

4

Murray 672882MA

Control, Drive

$54.99

$

Usually ships in 2-12 days

0

5

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Murray 1101366MA

Cable, Stop

$12.99

$

In Stock, only 1 left!

0

8

Murray 1101076E122

Engine Stop Lever

$4.49

$

Usually ships in 2-12 days

0

11

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

12

$3.99

$

In Stock, only 2 left!

0

13

Murray 071294

Knob
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

16

Murray 071530MA

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

17

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

18

Murray 0019X8MA

Washer
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

19

Murray 071495MA

Knob, Plastic

$4.99

$

In Stock, only 3 left!

0
