229611x83A - Briggs & Stratton 22" Walk-Behind Mower (2005) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

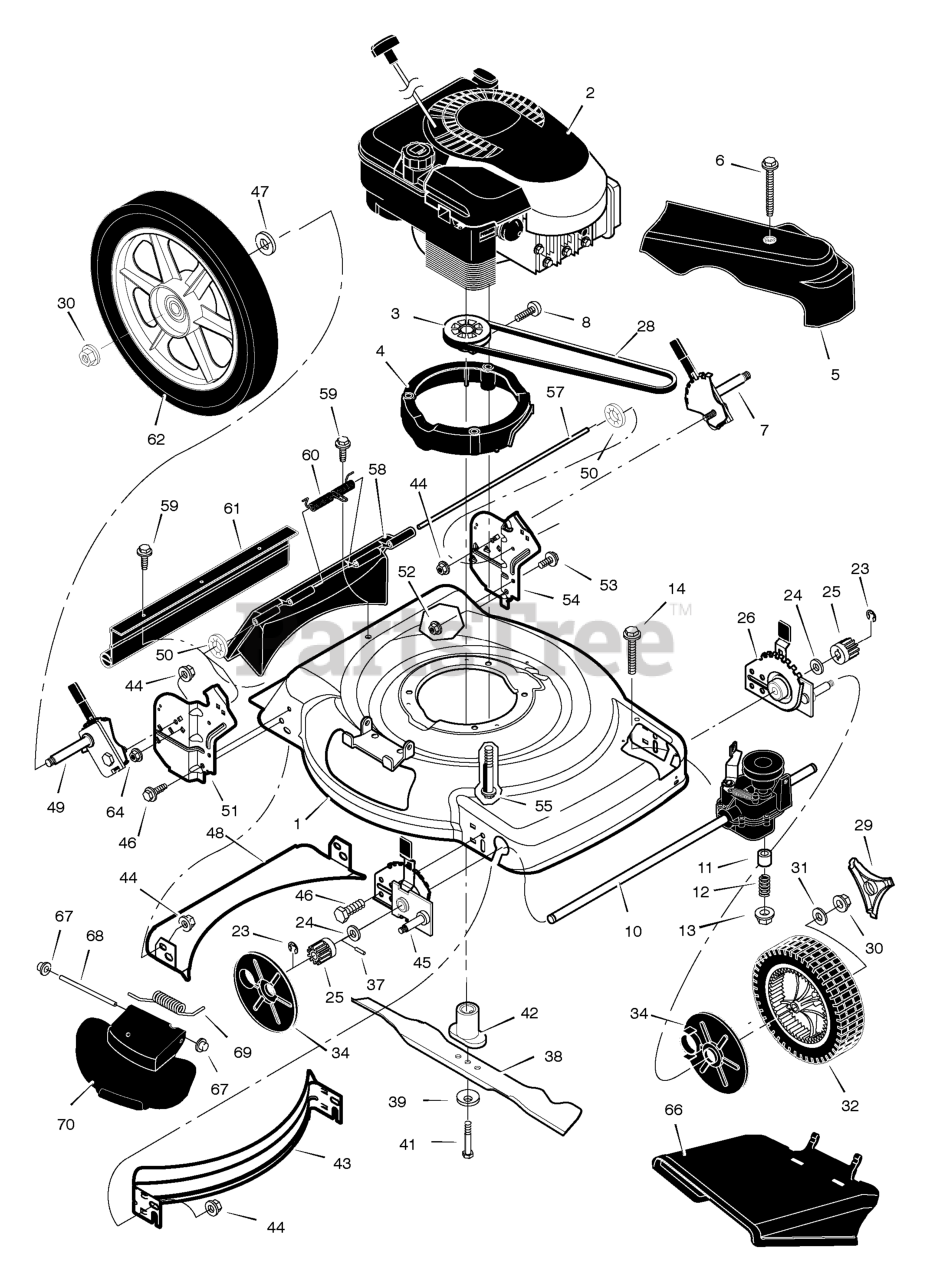

Mower Housing Assembly Parts Diagram

  • Title

1

Murray 1101340E700

Housing

$

$

Currently unavailable

2

Engine *

$

$

Not available

3

Murray 1101653MA

Pulley, Drive

$9.99

$

Usually ships in 2-12 days

0

4

Murray 1101639

Spacer, Engine

Note: (Black)

$21.99

$

Usually ships in 2-12 days

0

5

Murray 1101596MA

Cover, Belt (Black)

$37.99

$

Usually ships in 2-12 days

0

6

Murray 26404

Screw

$5.99

$

Usually ships in 2-12 days

0

7

Murray 1102167

Adjuster, Left Rear Height

$

$

Currently unavailable

8

Murray 26403

Screw

$

$

Currently unavailable

10

Murray 1101571MA

Transmission *

$101.99

$

Usually ships in 2-12 days

0

11

Murray 043844MA

Spacer

$12.99

$

Usually ships in 2-12 days

0

12

Murray 164X27MA

Spring, Compression

$3.99

$

Usually ships in 2-12 days

0

13

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

14

Murray 01X156MA

Bolt
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

23

Murray 011X16MA

E-Ring

$3.99

$

Usually ships in 2-12 days

0

24

Murray 17X186MA

Washer

$

$

Not available

25

Murray 071792MA

Gear, Pinion

$18.99

$

In Stock, only 1 left!

0

26

Murray 1101029

Adjuster, Left Front Height

$

$

Not available

28

Murray 37X123MA

Belt

$23.99

$

Usually ships in 2-12 days

0

29

Murray 672446

Cap, Hub (Gray)

$

$

Not available

30

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

31

Murray 17X169MA

Washer
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

32

Murray 672441MA

Wheel & Tire, Front (Gray)

$54.99

$

Usually ships in 2-12 days

0

34

Murray 071780MA

Cover, Dust

$5.99

$

Usually ships in 2-12 days

0

37

Murray 043629MA

Pin, Drive

$5.99

$

In Stock, only 3 left!

0

38

Murray 1101823E701MA

Blade
(Superseded to 7100851AYP)

$19.99

$

In Stock, only 1 left!

0

39

Murray 1101989MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

41

Murray 01X144MA

Bolt

$5.49

$

In Stock, only 3 left!

0

42

Murray 1101826

Adapter, Blade

$

$

Not available

43

Murray 672915E700

Baffle, Front

Note: (Included with Ref. No. 1)

$

$

Currently unavailable

44

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

45

Murray 1101028MA

Adjuster, Right Front Height
(Superseded to 1101078MA)

$62.99

$

Usually ships in 2-12 days

0

46

Murray 001X85MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

47

Murray 017X91MA

Washer

$5.49

$

In Stock, Qty 11

0

48

Murray 672916E700

Baffle, Rear

Note: (Included with Ref. No. 1)

$

$

Currently unavailable

49

Murray 1102166

Adjuster, Right Rear Height

$

$

Currently unavailable

50

Murray 028X49MA

Retainer, Push

$3.99

$

In Stock, Qty 13

0

51

Murray 1102122E701

Bracket, Right Handle

$

$

Currently unavailable

52

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

53

Murray 001X85MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

54

Murray 1102123E701

Bracket, Left Handle

$

$

Currently unavailable

55

Murray 025X11MA

Bolt, Engine

$6.99

$

Usually ships in 2-12 days

0

57

Murray 215X21MA

Rod, Pivot

Note: (Included with Ref. No. 58)

$7.99

$

Usually ships in 2-12 days

0

58

Murray 1101070MA

Door, Rear (Black)

$

$

Not available

59

Murray 26X245MA

Screw

$4.49

$

In Stock, Qty 6

0

60

Murray 166X44MA

Spring

Note: (Included with Ref. No. 58)

$14.99

$

In Stock, only 1 left!

0

61

Murray 672684

Guard, Rear

$18.99

$

Usually ships in 2-12 days

0

62

Murray 1102159

Wheel & Tire, Rear (Gray)

$83.99

$

In Stock, only 1 left!

0

64

Murray 015X79MA

Nut
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

66

Murray 1101097MA

Deflector, Chute (Black)

$39.99

$

Usually ships in 2-12 days

0

67

Murray 028X42MA

Push On Cap

Note: (Included with Ref. No. 70)

$3.99

$

Usually ships in 2-12 days

0

68

Murray 215X19 Z

Rod, Pivot

Note: (Included with Ref. No. 70)

$

$

Currently unavailable

69

Murray 166X38MA

Spring, Torsion

Note: (Included with Ref. No. 70)

$4.99

$

In Stock, only 2 left!

0

70

Murray 1101098MA

Cover, Mulch (Black)

$33.99

$

In Stock, only 1 left!

0

--

Murray F-050440L

Book, Instruction

$

$

Currently unavailable
