22961 - Toro 3ft Trencher Boom and Bar for Dingo and Dingo TX TRENCHER BOOM AND BAR ASSEMBLY Parts Diagram

3ft Trencher Boom and Bar for Dingo and Dingo TX

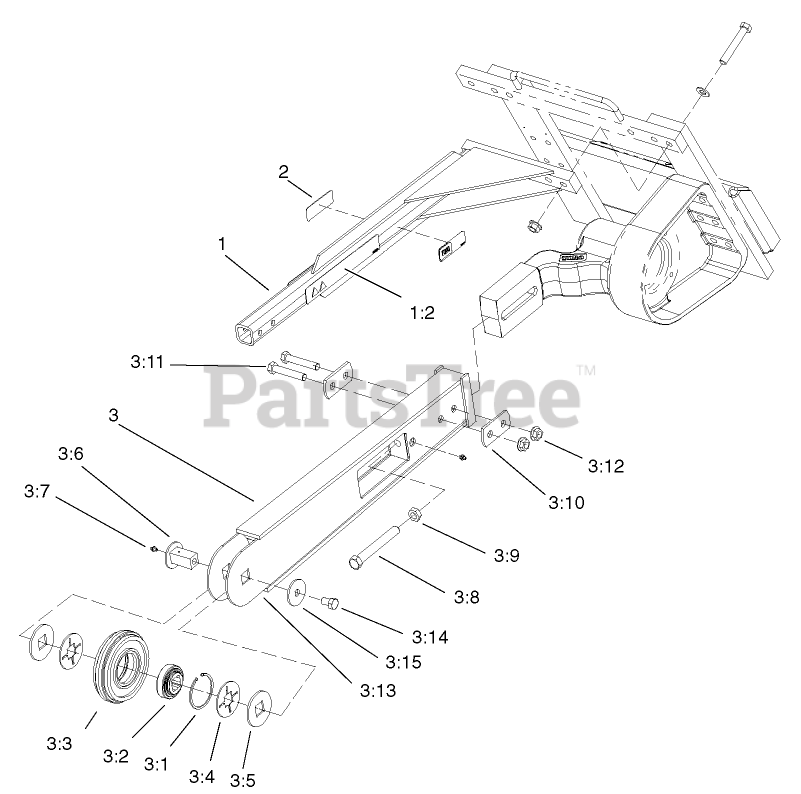

TRENCHER BOOM AND BAR ASSEMBLY Parts Diagram

  • Title

1

Toro 104-1939

SAFETY RAIL ASM

$

$

Not available

1:2

Toro 99-9952

DECAL-DANGER

$24.99

$

Usually ships in 3-6 days

0

2

Toro 98-4683

DECAL-ATTACHMENT, DINGO

$

$

Not available

3

Toro 104-1949

BOOM ASM

$2201.99

$

Usually ships in 3-6 days

0

3:1

Toro 104-1945

RING-RETAINING

$22.99

$

In Stock, only 2 left!

0

3:2

Toro 104-1995

BEARING

$323.99

$

In Stock, only 1 left!

0

3:3

Toro 104-1951

ROLLER-NOSE

$307.99

$

Usually ships in 3-6 days

0

3:4

Toro 104-1943

SPACER-ROLLER

$76.99

$

In Stock, only 2 left!

0

3:5

Toro 104-1942

CAP-ROLLER

$59.99

$

In Stock, only 2 left!

0

3:6

Toro 104-1955

PIN ASM (only on: 22471)
(Superseded to 108-5549)

$108.99

$

In Stock, only 1 left!

0

3:7

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

3:8

Toro 104-1941

BOLT-ADJUSTMENT

$84.99

$

In Stock, only 1 left!

0

3:9

Toro 104-1944

NUT-JAM

$13.99

$

In Stock, only 1 left!

0

3:10

Toro 104-1983-03

PLATE-SUPPORT

$47.99

$

Usually ships in 3-6 days

0

3:11

Toro 327-14

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

3:12

Toro 32128-50

NUT-FLANGE

$5.49

$

In Stock, only 4 left!

0

3:13

Toro 104-1963-03

BOOM ASM
(Superseded to 115-0781-03)

$1162.99

$

Usually ships in 3-6 days

0

3:14

Toro 327-2

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

3:15

Toro 104-5901

WASHER

$19.99

$

In Stock, only 1 left!

0
