22911 - Toro Vibratory Plow for Dingo Compact Utility Loader (SN: 404320000 - 999999999) Hydraulic Assembly Parts Diagram

Vibratory Plow for Dingo Compact Utility Loader

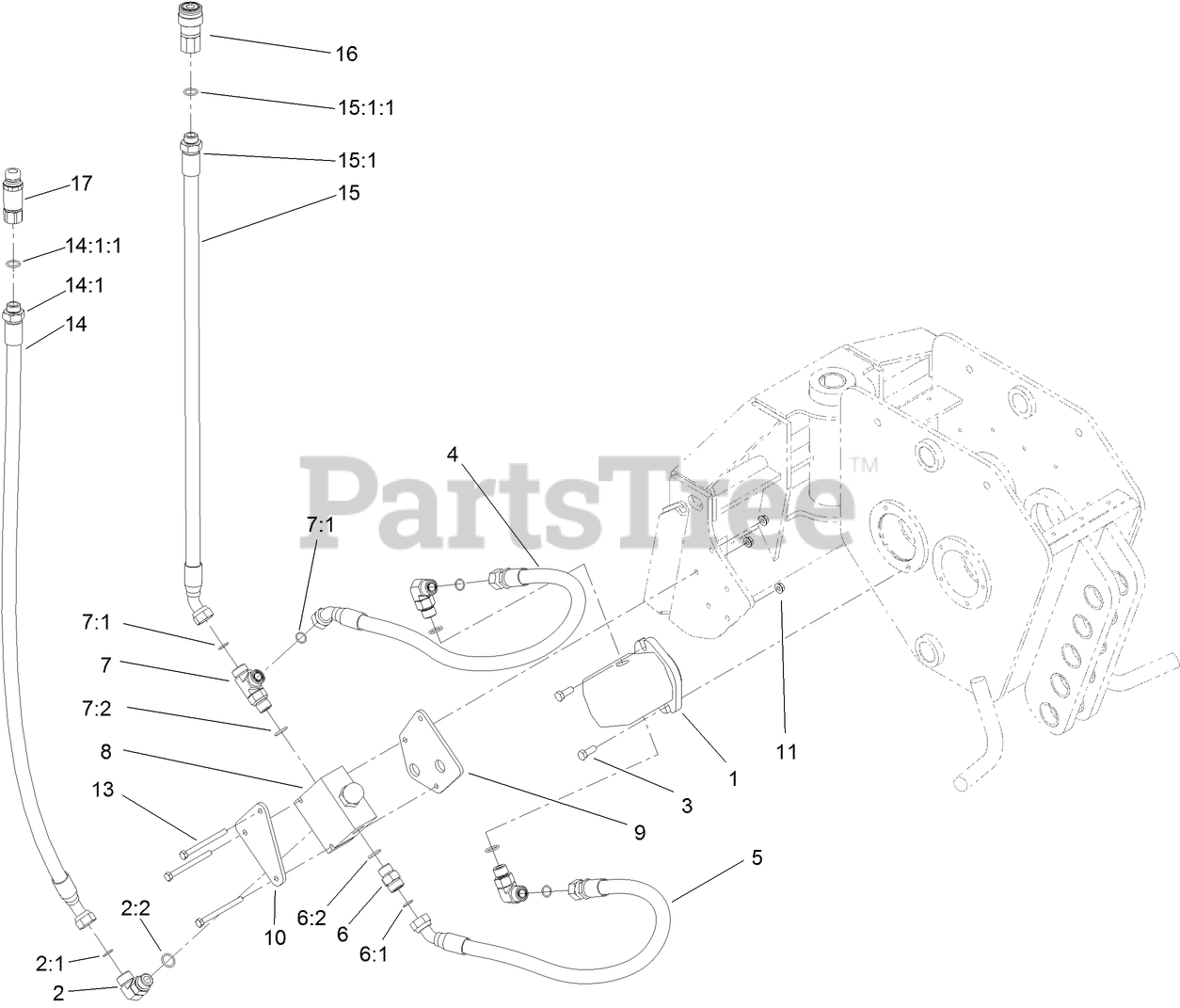

Hydraulic Assembly Parts Diagram

  • Title
1

Toro 99-2683

MOTOR-HYD

$2460.99

$

Usually ships in 3-6 days

0

1:1

Toro 99-8608

SEAL KIT

Note: Not illustrated

$449.99

$

Usually ships in 3-6 days

0

2

Toro 340-17

FITTING-ELBOW, 90 DEG

$61.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 8

0

2:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

3

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

4

Toro 112-2766

HYD HOSE ASM

$270.99

$

Usually ships in 3-6 days

0

5

Toro 105-4333

HOSE-HYD

$270.99

$

Usually ships in 3-6 days

0

6

Toro 340-7

FITTING-STRAIGHT

$14.99

$

In Stock, Qty 13

0

6:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 8

0

6:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

7

Toro 340-22

FITTING-TEE

$109.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 8

0

7:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

8

Toro 112-4882

FLOW VALVE ASM

$901.99

$

Usually ships in 3-6 days

0

9

Toro 112-4939-03

PLATE-SPACER, VALVE

$39.99

$

Usually ships in 3-6 days

0

10

Toro 112-2776-03

PLATE-CLAMP

$26.99

$

Usually ships in 3-6 days

0

11

Toro 32128-35

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

13

Toro 3235-23

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

14

Toro 112-2768

HYD HOSE ASM

$242.99

$

Usually ships in 3-6 days

0

14:1

FITTING-STRAIGHT

Note: Not serviced separately

$

$

Not available

14:1:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

15

Toro 112-2769

HYD HOSE ASM

$230.99

$

Usually ships in 3-6 days

0

15:1

FITTING-STRAIGHT

Note: Not serviced separately

$

$

Not available

15:1:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

16

Toro 104-6134

COUPLER-FACE, FLUSH

$267.99

$

Usually ships in 3-6 days

0

17

Toro 100-4701

NIPPLE-CONNECT, PRESSURE

$282.99

$

Usually ships in 3-6 days

0

17:1

Toro 100-6120

SEAL KIT

Note: Not illustrated

$107.99

$

Usually ships in 3-6 days

0
