22910 - Toro Vibratory Plow for Dingo Compact Utility Loader (SN: 210000001 - 210999999) (2001) INDICATING LEVER ASSEMBLY Parts Diagram

Vibratory Plow for Dingo Compact Utility Loader

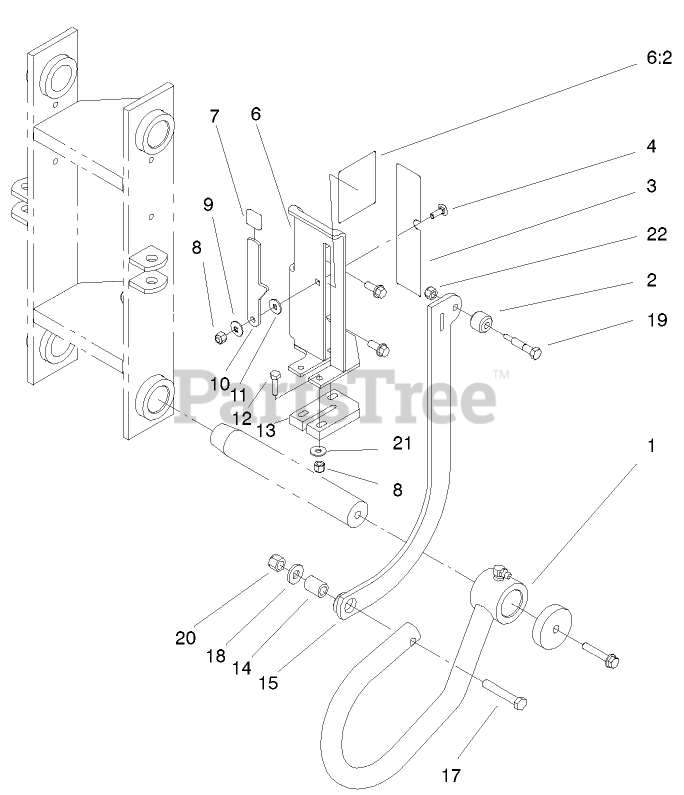

INDICATING LEVER ASSEMBLY Parts Diagram

  • Title

1

Toro 99-8644-03

ROD ASM

$351.99

$

Usually ships in 3-6 days

0

2

Toro 100-1657

NYLON-STOP

$39.99

$

Usually ships in 3-6 days

0

3

Toro 99-8609

DECAL-INDICATOR

$42.99

$

Usually ships in 3-6 days

0

4

Toro 3229-28

SCREW-CARR

$7.49

$

Usually ships in 3-6 days

0

6

Toro 100-1665

PLATE-INDICATOR

$277.99

$

Usually ships in 3-6 days

0

6:2

Toro 100-4650

DECAL-WARNING

$26.99

$

Usually ships in 3-6 days

0

7

Toro 100-1655

GRIP-HANDLE

$2.99

$

Usually ships in 3-6 days

0

8

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

9

Toro 3290-436

WASHER-BELLEVILLE

$3.99

$

In Stock, only 1 left!

0

10

Toro 100-1653-03

LEVER-INDICATOR

$59.99

$

Usually ships in 3-6 days

0

11

Toro 3290-388

WASHER

$0.99

$

Usually ships in 3-6 days

0

12

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

13

Toro 100-1652

BLOCK-BEARING

$116.99

$

Usually ships in 3-6 days

0

14

Toro 100-1654

SPACER

$55.99

$

Usually ships in 3-6 days

0

15

Toro 100-1667-03

INDICATOR BAR ASM

$355.99

$

Usually ships in 3-6 days

0

17

Toro 323-47

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

18

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 100-1656

SCREW-SPECIAL

$116.99

$

Usually ships in 3-6 days

0

20

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

99

Toro 3290-468

PIN-COTTER

Note: Not illustrated

$1.49

$

Usually ships in 3-6 days

0
