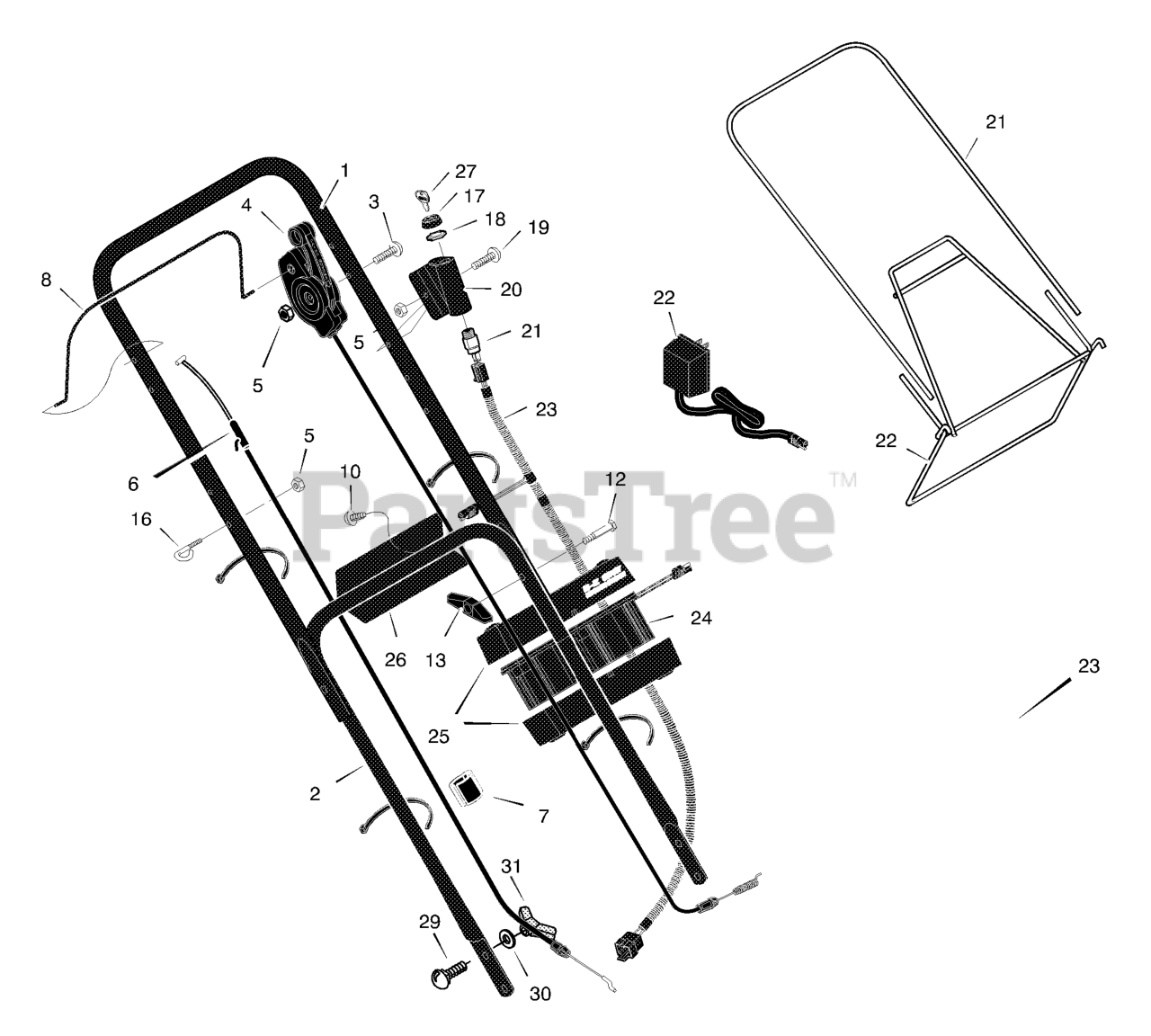

228670x31A - Scotts 22" Walk-Behind Mower (2001) Handle Assembly Parts Diagram

22" Walk-Behind Mower

Handle Assembly Parts Diagram

  • Title
1

Murray 1101099-806

Handle, Upper (Gray)

$

$

Not available

2

Murray 672906-806

Handle, Lower (Gray)

$

$

Currently unavailable

$3.99

$

Usually ships in 2-12 days

0

4

Murray 1101344MA

Control, Drive

$68.99

$

Usually ships in 2-12 days

0

5

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Murray 1101366MA

Cable, Stop

$12.99

$

In Stock, only 1 left!

0

7

Murray 1101352

Fastener, Single Cable

$5.99

$

In Stock, only 2 left!

0

8

Murray 1101076E701MA

Lever, Stop

$71.99

$

Usually ships in 2-12 days

0

10

UNKNOWN

$

$

Not available

12

$3.99

$

In Stock, only 2 left!

0

13

Murray 071294

Knob
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

16

Murray 071530MA

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

17

Murray 091488

Cap
(Superseded to 091488MA)

$4.99

$

Usually ships in 2-12 days

0

18

Murray 091489MA

Nut
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

19

$3.99

$

Usually ships in 2-12 days

0

20

Murray 671916MA

Cover, Ignition

$1.99

$

Usually ships in 2-12 days

0

21

Murray 776011MA

Switch Ignition & Key

$20.99

$

Usually ships in 2-12 days

0

22

Murray 671992MA

Charger, Battery

$54.99

$

In Stock, only 1 left!

0

23

Murray 776012

Harness, Wiring

$

$

Currently unavailable

24

Murray 776014MA

Battery

$55.99

$

Usually ships in 2-12 days

0

25

Murray 776013

Case, Battery

$

$

Currently unavailable

26

Murray 671959

Bracket, Battery

$

$

Currently unavailable

27

Murray 672220

Key, Ignition

$

$

Not available

21

Murray 1101075MA

Frame, Top

$113.99

$

Usually ships in 2-12 days

0

22

Murray 1101083

Frame Assembly

$

$

Currently unavailable

23

Murray 1101085MA

Bag, Cloth
(Superseded to 1101035MA)

$

$

Not available

29

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

30

$6.49

$

Usually ships in 2-12 days

0

31

Murray 071495MA

Knob, Plastic

$4.99

$

In Stock, only 3 left!

0
