228651x99B - Briggs & Stratton 22" Walk-Behind Mower (2005) (AAFES) Handle Assembly Parts Diagram

22" Walk-Behind Mower

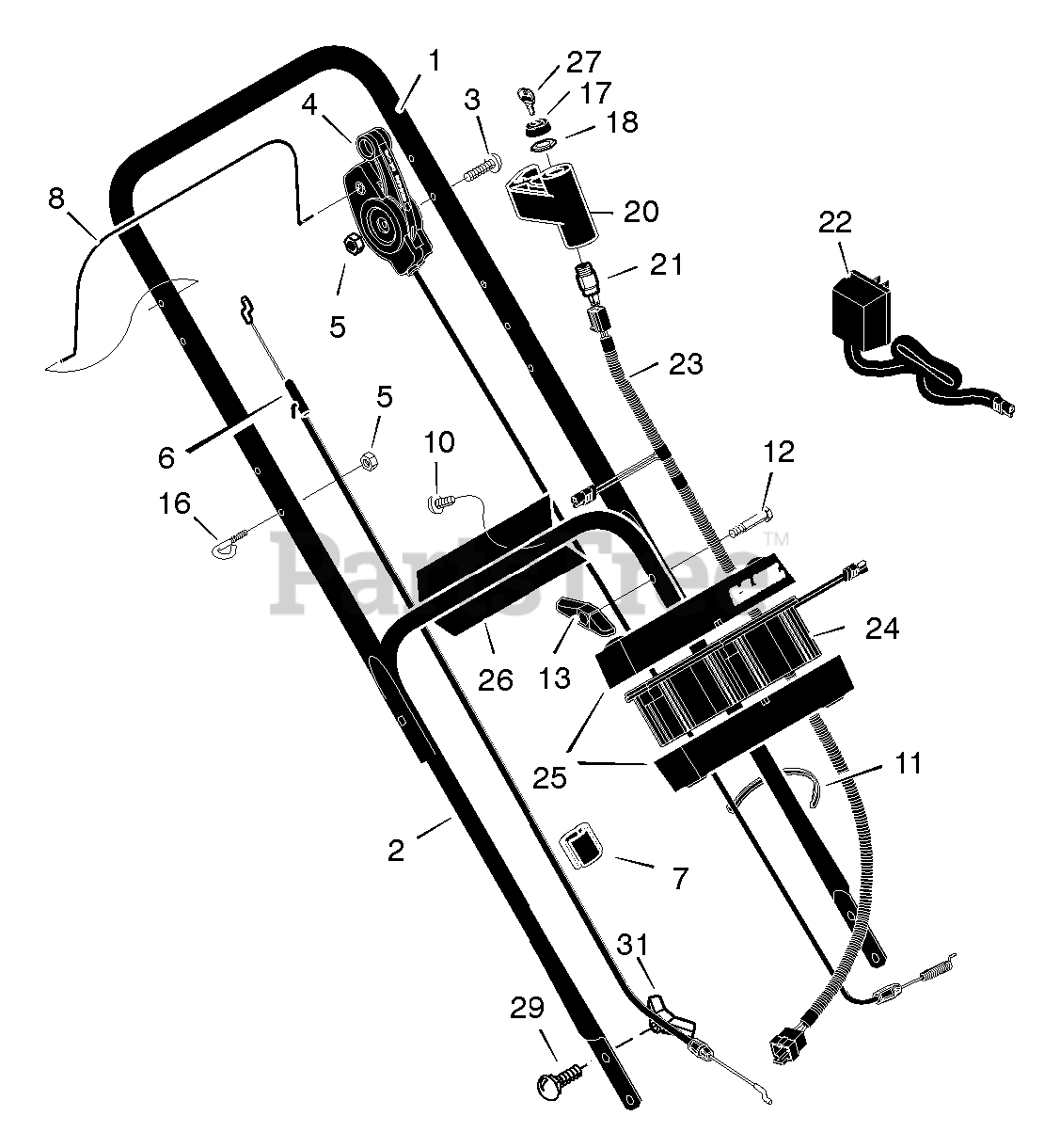

Handle Assembly Parts Diagram

  • Title
1

Murray 1101557E701MA

Handle, Upper (Black)

$106.99

$

Usually ships in 2-12 days

0

--

Murray 1101557E724

Handle, Upper (Gray)

$106.99

$

Usually ships in 2-12 days

0

2

Murray 1102089E701

Handle, Lower (Black)

$

$

Not available

--

Murray 1102089E724

Handle, Lower (Gray)

$

$

Currently unavailable

$3.99

$

Usually ships in 2-12 days

0

4

Murray 1101670MA

Control, Drive

$54.99

$

In Stock, Qty 8

0

5

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Murray 1101365MA

Cable, Stop (Briggs)

$27.99

$

In Stock, Qty 7

0

7

Murray 1101353MA

Fastener, Double Cable

$5.99

$

In Stock, only 2 left!

0

8

Murray 1101076E701MA

Lever, Stop

$71.99

$

Usually ships in 2-12 days

0

10

$3.49

$

Usually ships in 2-12 days

0

11

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

12

$3.99

$

In Stock, only 2 left!

0

13

Murray 071294

Knob
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

16

Murray 071530MA

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

17

Murray 091488

Cap
(Superseded to 091488MA)

$4.99

$

Usually ships in 2-12 days

0

18

Murray 091489MA

Nut
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

20

Murray 1101602MA

Cover, Ignition

$7.99

$

Usually ships in 2-12 days

0

21

Murray 776011MA

Switch Ignition & Key

$20.99

$

Usually ships in 2-12 days

0

22

Murray 671992MA

Charger, Battery

$54.99

$

In Stock, only 1 left!

0

23

Murray 250X110

Harness, Wiring

$38.99

$

In Stock, only 1 left!

0

24

Murray 776014MA

Battery

$55.99

$

Usually ships in 2-12 days

0

25

Murray 776013

Case, Battery

$

$

Currently unavailable

26

Murray 671959E701

Bracket, Battery

$

$

Not available

27

Murray 672220

Key, Ignition

$

$

Not available

29

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

31

Murray 071495MA

Knob, Plastic

$4.99

$

In Stock, only 3 left!

0
