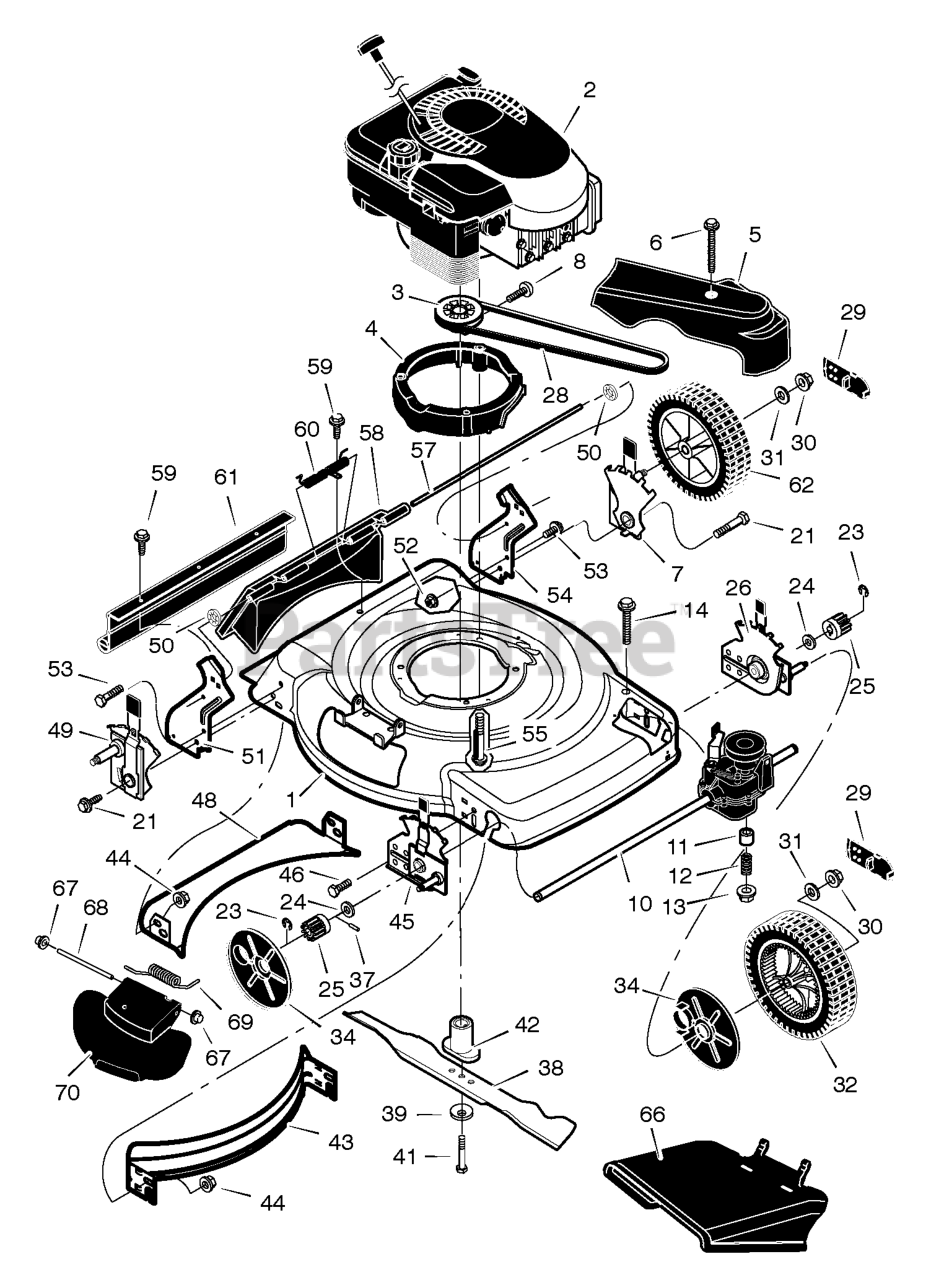

228651x92A - Murray 22" Walk-Behind Mower (2005) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

Mower Housing Assembly Parts Diagram

  • Title
1

Murray 7501005

Housing

$

$

Currently unavailable

2

Engine *

$

$

Not available

3

Murray 1101653MA

Pulley, Drive

$9.99

$

Usually ships in 2-12 days

0

4

Murray 1101639

Spacer, Engine

Note: (Black)

$21.99

$

Usually ships in 2-12 days

0

--

Murray 1101640

Spacer, Engine

Note: (Gray)

$21.99

$

Usually ships in 2-12 days

0

5

Murray 1101596MA

Cover, Belt (Black)

$37.99

$

Usually ships in 2-12 days

0

--

Murray 1101568MA

Cover, Belt (Gray)

$31.99

$

Usually ships in 2-12 days

0

6

Murray 26404

Screw

$5.99

$

Usually ships in 2-12 days

0

7

Murray 1102035MA

Adjuster, Left Rear Height

$32.99

$

Usually ships in 2-12 days

0

8

Murray 26403

Screw

$

$

Currently unavailable

10

Murray 1101571MA

Transmission *

$101.99

$

Usually ships in 2-12 days

0

11

$12.99

$

Usually ships in 2-12 days

0

12

Murray 164X27MA

Spring, Compression

$3.99

$

Usually ships in 2-12 days

0

13

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

14

Murray 01X156MA

Bolt
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

21

$3.49

$

Usually ships in 2-12 days

0

23

$3.99

$

Usually ships in 2-12 days

0

24

$

$

Not available

25

Murray 071792MA

Gear, Pinion

$18.99

$

In Stock, only 1 left!

0

26

Murray 1101905MA

Adjuster, Left Front Height

$74.99

$

Usually ships in 2-12 days

0

28

$23.99

$

Usually ships in 2-12 days

0

29

Murray 043615MA

Cap, Hub

$4.49

$

Usually ships in 2-12 days

0

30

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

31

Murray 17X169MA

Washer
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

32

Murray 071133MA

Wheel & Tire, Front *

$50.99

$

In Stock, only 2 left!

0

34

Murray 071780MA

Cover, Dust

$5.99

$

Usually ships in 2-12 days

0

37

Murray 043629MA

Pin, Drive

$5.99

$

In Stock, only 3 left!

0

38

Murray 1101823E701MA

Blade
(Superseded to 7100851AYP)

$19.99

$

In Stock, only 1 left!

0

39

Murray 1101989MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

41

$5.49

$

In Stock, only 3 left!

0

42

Murray 1101826

Adapter, Blade

$

$

Not available

43

Murray 672915E700

Baffle, Front

Note: (Included with Ref. No. 1)

$

$

Currently unavailable

44

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

45

Murray 1101904MA

Adjuster, Right Front Height

$62.99

$

Usually ships in 2-12 days

0

46

$3.99

$

Usually ships in 2-12 days

0

48

Murray 672916E700

Baffle, Rear

Note: (Included with Ref. No. 1)

$

$

Currently unavailable

49

Murray 1102034MA

Adjuster, Right Rear Height

$66.99

$

Usually ships in 2-12 days

0

50

Murray 028X49MA

Retainer, Push

Note: (Included with Ref. No. 58)

$3.99

$

In Stock, Qty 13

0

51

Murray 1102074E701

Bracket, Right Handle

$40.99

$

Usually ships in 2-12 days

0

52

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

53

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

54

Murray 1102075E701

Bracket, Left Handle

$22.99

$

Usually ships in 2-12 days

0

55

Murray 025X11MA

Bolt, Engine

$6.99

$

Usually ships in 2-12 days

0

57

Murray 215X21MA

Rod, Pivot

Note: (Included with Ref. No. 58)

$7.99

$

Usually ships in 2-12 days

0

58

Murray 1101070MA

Door, Rear (Black)

$

$

Not available

--

Murray 1101071MA

Door, Rear (Gray)

$39.99

$

Usually ships in 2-12 days

0

59

$4.49

$

In Stock, Qty 6

0

60

Murray 166X44MA

Spring

Note: (Included with Ref. No. 58)

$14.99

$

In Stock, only 1 left!

0

61

Murray 1101105MA

Guard, Rear
(Superseded to 7103347YP)

$

$

Not available

62

Murray 071132MA

Wheel & Tire, Rear *

$36.99

$

In Stock, only 4 left!

0

66

Murray 1101097MA

Deflector, Chute (Black)

$39.99

$

Usually ships in 2-12 days

0

--

Murray 672917MA

Deflector, Chute (Gray)

$35.99

$

Usually ships in 2-12 days

0

67

Murray 028X42MA

Push On Cap

$3.99

$

Usually ships in 2-12 days

0

68

Murray 215X19 Z

Rod, Pivot

$

$

Currently unavailable

69

Murray 166X38MA

Spring, Torsion

$4.99

$

In Stock, only 2 left!

0

70

Murray 1101098MA

Cover, Mulch (Black)

$33.99

$

In Stock, only 1 left!

0

--

Murray 672920MA

Cover, Mulch (Gray)

$24.99

$

Usually ships in 2-12 days

0

--

Murray F-050429L

Book, Instruction

$

$

Currently unavailable
