228650x692A - Stanley 22" Walk-Behind Mower (2003) Handle And Grass Bag Parts Diagram

22" Walk-Behind Mower

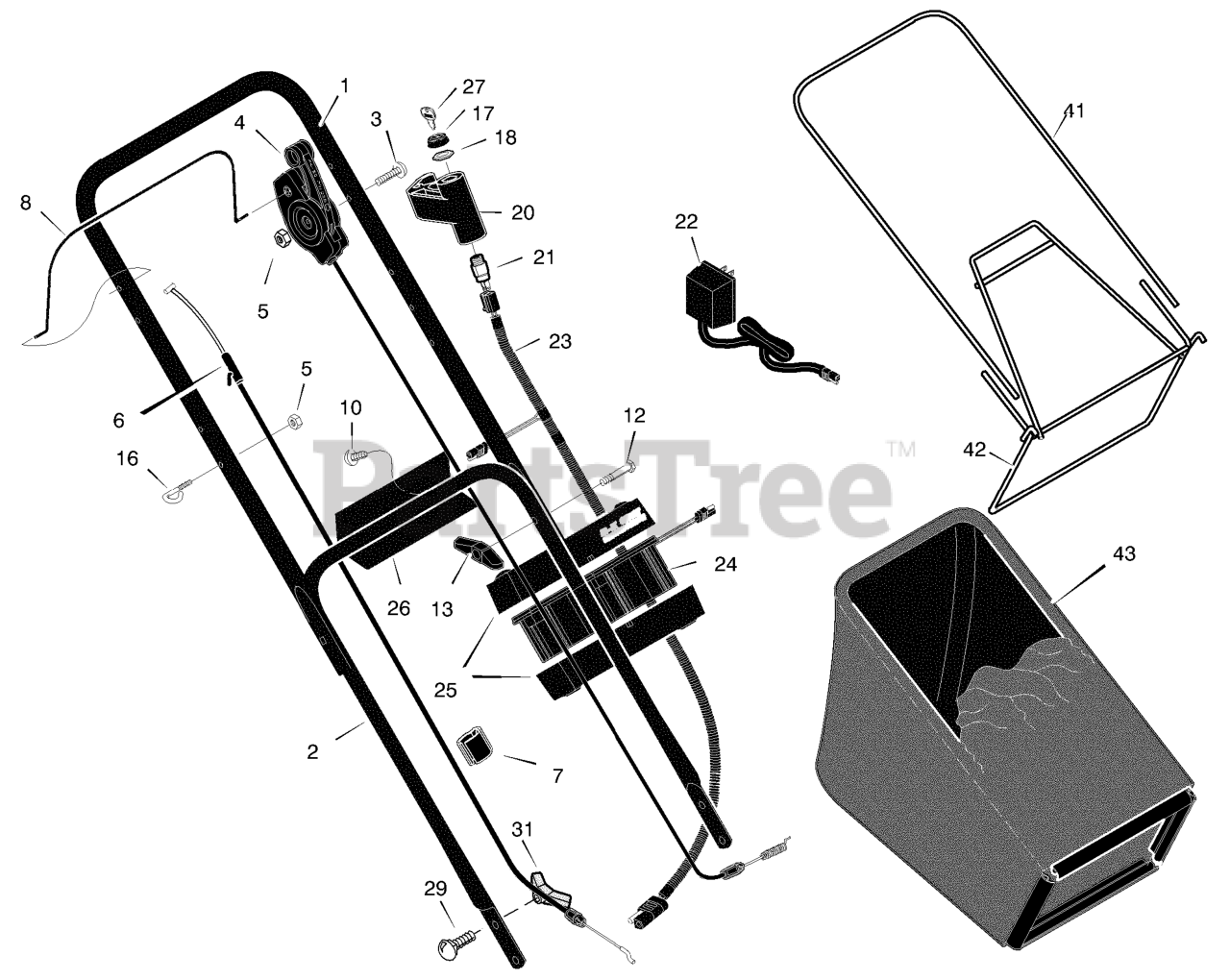

Handle And Grass Bag Parts Diagram

  • Title
1

Murray 1101557E701MA

Handle, Upper

$106.99

$

Usually ships in 2-12 days

0

2

Murray 672907E701MA

Handle, Lower

$66.99

$

Usually ships in 2-12 days

0

$3.99

$

Usually ships in 2-12 days

0

4

Murray 1101344MA

Control, Drive

$68.99

$

Usually ships in 2-12 days

0

5

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 18

0

6

Murray 1101323MA

Cable, Stop

$13.99

$

Usually ships in 2-12 days

0

7

Murray 1101353MA

Fastener, Cable

$5.99

$

In Stock, only 2 left!

0

8

Murray 1101076E701MA

Lever, Stop

$71.99

$

Usually ships in 2-12 days

0

10

$3.49

$

Usually ships in 2-12 days

0

12

$3.99

$

In Stock, only 2 left!

0

13

Murray 071294

Knob
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

16

Murray 071530MA

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

17

Murray 091488

Cap
(Superseded to 091488MA)

$4.99

$

Usually ships in 2-12 days

0

18

Murray 091489MA

Nut
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

20

Murray 1101602MA

Case, Ignition

$7.99

$

Usually ships in 2-12 days

0

21

Murray 776011MA

Switch Ignition & Key

$20.99

$

Usually ships in 2-12 days

0

22

Murray 671992MA

Charger, Battery

$54.99

$

In Stock, only 1 left!

0

23

Murray 250X11

Harness, Wiring

$

$

Not available

24

Murray 776014MA

Battery

$55.99

$

Usually ships in 2-12 days

0

25

Murray 776013

Case, Battery

$

$

Currently unavailable

26

Murray 671959E701

Bracket, Battery

$

$

Not available

--

Murray 44X331

Decal, Battery Warning

$

$

Currently unavailable

27

Murray 672220

Key, Ignition

$

$

Not available

29

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

31

Murray 071495MA

Knob, Plastic

$4.99

$

In Stock, only 3 left!

0

41

Murray 1101075MA

Frame, Top

$113.99

$

Usually ships in 2-12 days

0

42

Murray 1101074MA

Frame Assembly

$71.99

$

In Stock, only 1 left!

0

43

Murray 1101385

Bag, Cloth

$

$

Currently unavailable
