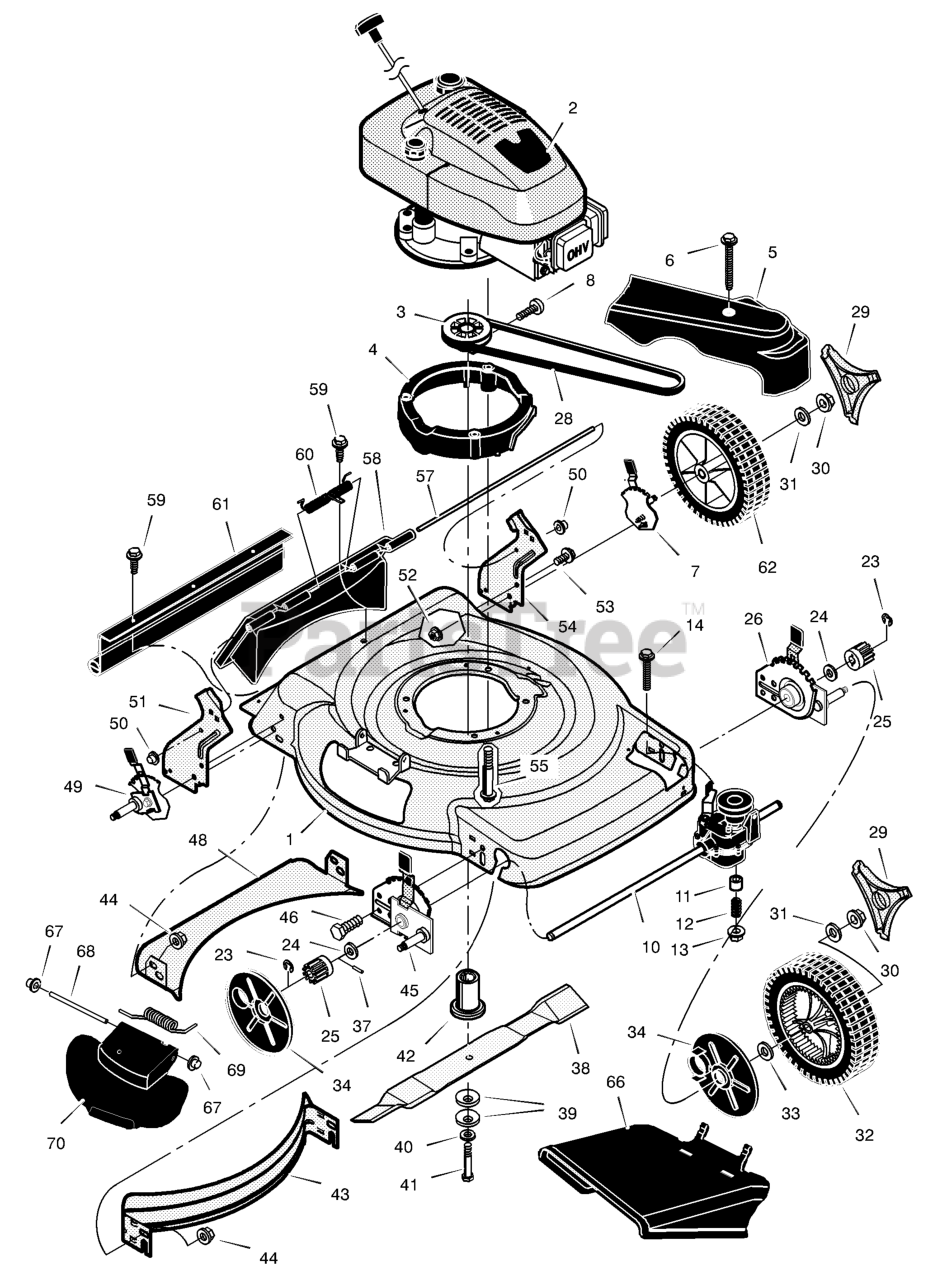

228630x692C - Stanley 22" Walk-Behind Mower (2002) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

Mower Housing Assembly Parts Diagram

  • Title

1

Murray 7501005

Housing

$

$

Currently unavailable

2

Engine

$

$

Not available

3

Murray 1101436MA

Pulley, Drive

$

$

Not available

4

Murray 1101331MA

Spacer, Engine

Note: (Black)

$

$

Not available

5

Murray 1101334MA

Cover, Belt (Black)

$31.99

$

Usually ships in 2-12 days

0

6

Murray 26X304MA

Screw

$4.49

$

Usually ships in 2-12 days

0

7

Murray 672605MA

Adjuster, Left Rear Height

$23.99

$

Usually ships in 2-12 days

0

8

Murray 26X303MA

Screw

$3.99

$

Usually ships in 2-12 days

0

10

Murray 1101435MA

Transmission *

$92.99

$

Usually ships in 2-12 days

0

11

Murray 043844MA

Spacer

$12.99

$

Usually ships in 2-12 days

0

12

Murray 164X27MA

Spring, Compression

$3.99

$

Usually ships in 2-12 days

0

13

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

14

Murray 01X156MA

Bolt
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

23

Murray 011X24MA

E-Ring

$4.49

$

Usually ships in 2-12 days

0

24

Murray 17X186MA

Washer

$

$

Not available

25

Murray 071792MA

Gear, Pinion

$18.99

$

In Stock, only 1 left!

0

26

Murray 1101029

Adjuster, Left Front Height

$

$

Not available

28

Murray 7769207MA

Belt

$17.99

$

Usually ships in 2-12 days

0

29

Murray 1101413MA

Cap, Hub

$4.99

$

Usually ships in 2-12 days

0

30

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

31

Murray 17X169MA

Washer
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

32

Murray 1101472MA

Wheel & Tire, Front

$

$

Not available

33

Murray 017X45MA

Washer

$

$

Not available

34

Murray 071780MA

Cover, Dust

$5.99

$

Usually ships in 2-12 days

0

37

Murray 043629MA

Pin, Drive

$5.99

$

In Stock, only 3 left!

0

38

Murray 7769201

Blade

$

$

Not available

39

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

40

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

41

Murray 01X144MA

Bolt

$5.49

$

In Stock, only 3 left!

0

42

Murray 1101336MA

Adapter, Blade

$9.99

$

Usually ships in 2-12 days

0

43

Murray 672915E701MA

Baffle, Front

$74.99

$

Usually ships in 2-12 days

0

44

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

45

Murray 1101028MA

Adjuster, Right Front Height
(Superseded to 1101078MA)

$62.99

$

Usually ships in 2-12 days

0

46

Murray 001X85MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

47

Murray 0020X3MA

Washer

$4.49

$

Usually ships in 2-12 days

0

48

Murray 672916E701MA

Baffle, Rear
(Superseded to 7300854DYP)

$43.99

$

Usually ships in 2-12 days

0

49

Murray 672604MA

Adjuster, Right Rear Height

$24.99

$

Usually ships in 2-12 days

0

50

Murray 028X49MA

Push On Cap

Note: (Included with Ref. No. 58)

$3.99

$

In Stock, Qty 13

0

51

Murray 1101238E700

Bracket, Right Handle

$

$

Not available

52

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

53

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

54

Murray 1101239E700

Bracket, Left Handle

$

$

Not available

55

Murray 025X11MA

Bolt, Engine

$6.99

$

Usually ships in 2-12 days

0

57

Murray 215X21MA

Rod, Pivot

Note: (Included with Ref. No. 58)

$7.99

$

Usually ships in 2-12 days

0

58

Murray 1101070MA

Door, Rear (Black)

$

$

Not available

59

Murray 26X245MA

Screw

$4.49

$

In Stock, Qty 6

0

60

Murray 166X44MA

Spring

Note: (Included with Ref. No. 58)

$14.99

$

In Stock, only 1 left!

0

61

Murray 1101105MA

Guard, Rear
(Superseded to 7103347YP)

$

$

Not available

62

Murray 1101473MA

Wheel & Tire, Rear
(Superseded to 1101433MA)

$39.99

$

In Stock, only 3 left!

0

66

Murray 1101097MA

Deflector, Chute

$39.99

$

Usually ships in 2-12 days

0

67

Murray 028X42MA

Push On Cap

$3.99

$

Usually ships in 2-12 days

0

68

Murray 215X19 Z

Rod, Pivot

$

$

Currently unavailable

69

Murray 166X38MA

Spring, Torsion

$4.99

$

In Stock, only 2 left!

0

70

Murray 1101098MA

Cover, Mulch (Black)

$33.99

$

In Stock, only 1 left!

0

--

Murray F-02424L

Book, Instruction

$

$

Currently unavailable
