228630x692B - Stanley 22" Walk-Behind Mower (2001) Handle And Grass Bag Parts Diagram

22" Walk-Behind Mower

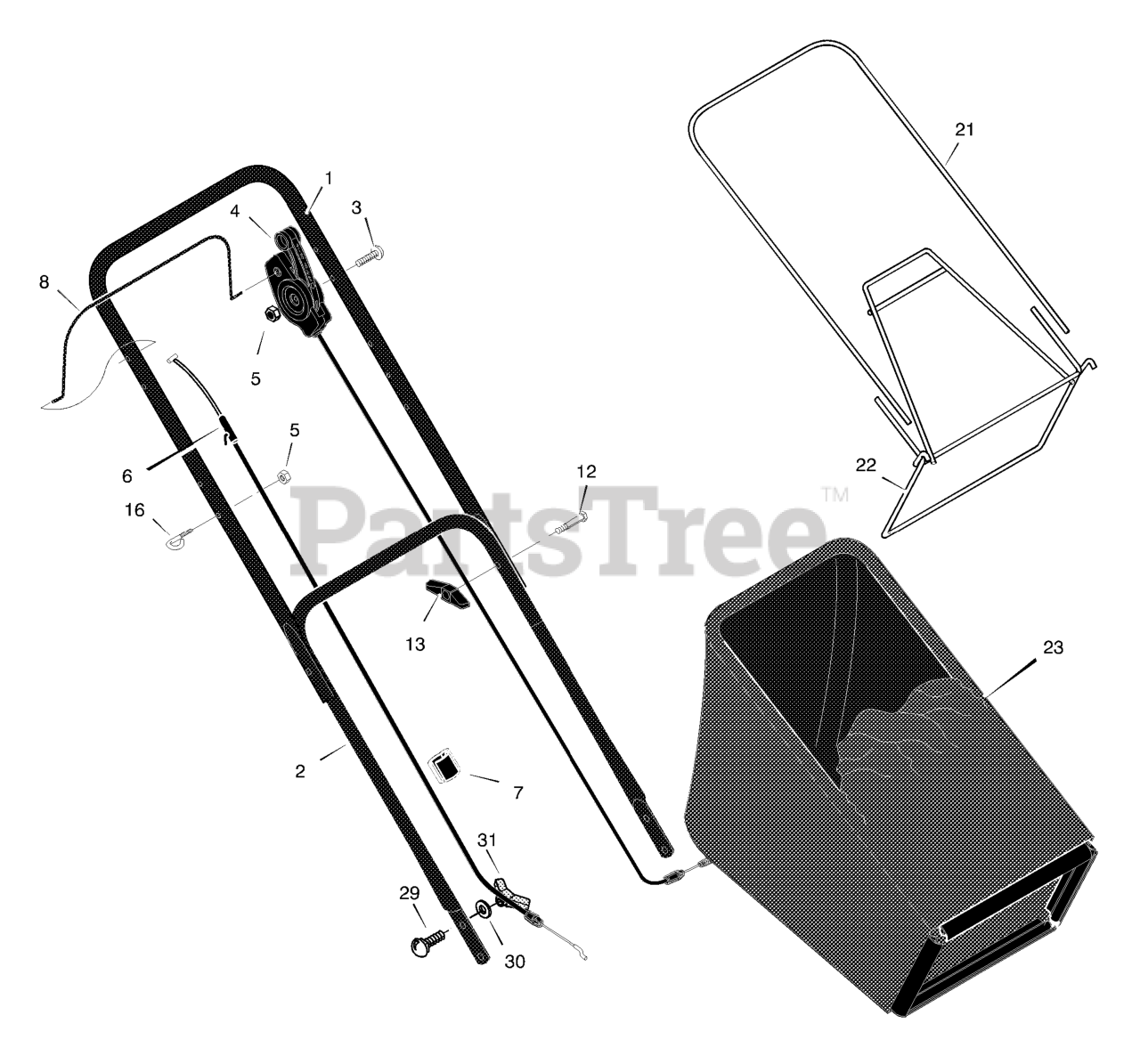

Handle And Grass Bag Parts Diagram

  • Title

1

Murray 1101099-846

Handle, Upper

$8.99

$

Usually ships in 2-12 days

0

2

Murray 672906-846

Handle, Lower

$

$

Not available

3

Murray 025X14MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

4

Murray 1101344MA

Control, Drive

$68.99

$

Usually ships in 2-12 days

0

5

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Murray 1101366MA

Cable, Stop

$12.99

$

In Stock, only 1 left!

0

7

Murray 1101352

Fastener, Single Cable

$5.99

$

In Stock, only 2 left!

0

--

Murray 1101353MA

Fastener, Double Cable

$5.99

$

In Stock, only 2 left!

0

8

Murray 1101076E701MA

Lever, Stop

$71.99

$

Usually ships in 2-12 days

0

12

Murray 002X77MA

Bolt

$3.99

$

In Stock, only 2 left!

0

13

Murray 071294

Knob
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

16

Murray 071530MA

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

29

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

30

Murray 17X168ZMA

Washer

$6.49

$

Usually ships in 2-12 days

0

31

Murray 071495MA

Knob, Plastic

$4.99

$

In Stock, only 3 left!

0

21

Murray 1101075MA

Frame, Top

$113.99

$

Usually ships in 2-12 days

0

22

Murray 1101074MA

Frame Assembly

$71.99

$

In Stock, only 1 left!

0

23

Murray 1101385

Bag, Cloth

$

$

Currently unavailable
