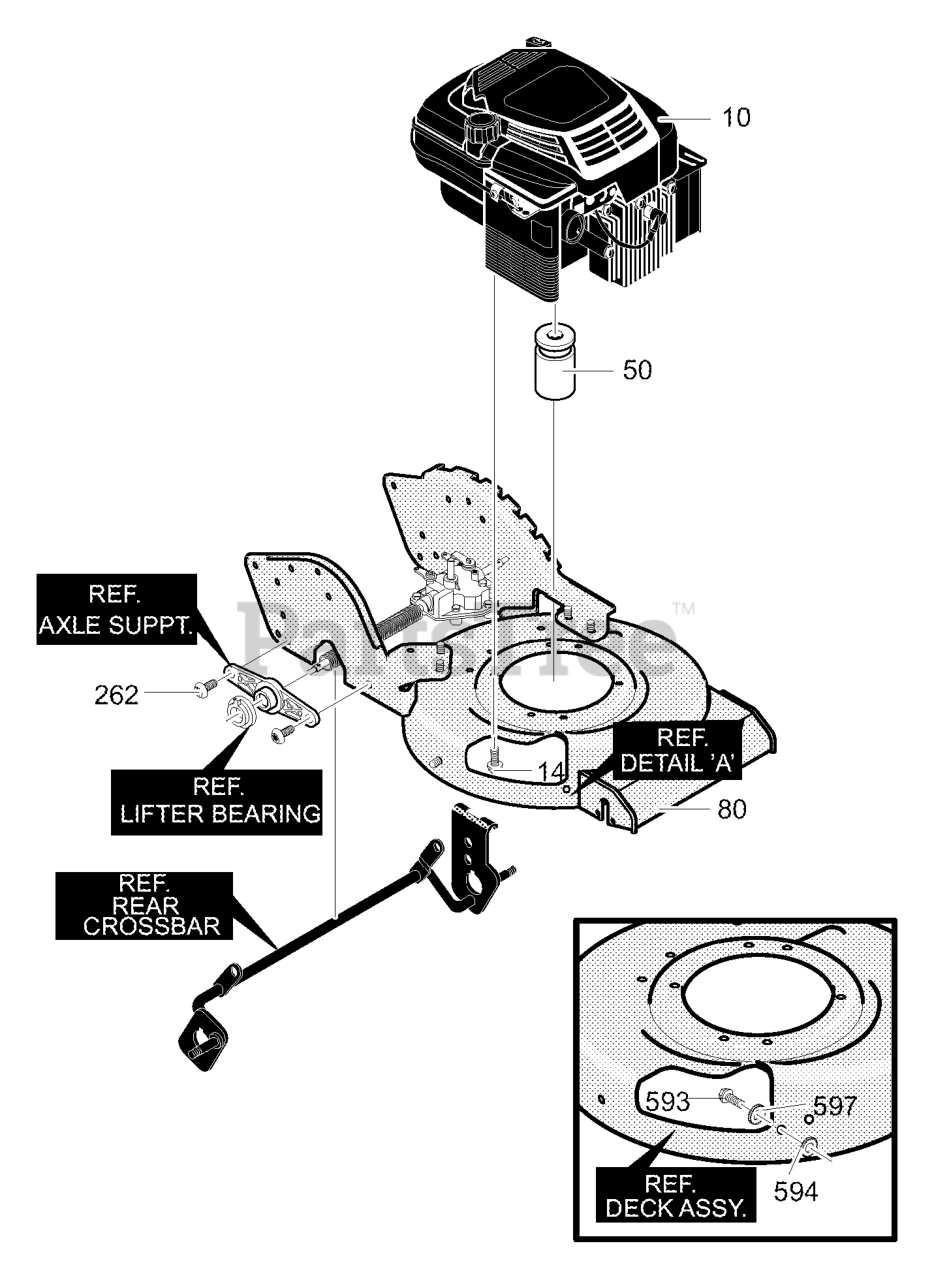

22856x50C - Murray 22" Walk-Behind Mower (2000) Engine Mount Parts Diagram

22" Walk-Behind Mower

Engine Mount Parts Diagram

  • Title
10

Engine, 6HP

$

$

Not available

14

Murray 47792MA

Screw, 3/8-16 x 1.00

$3.99

$

Usually ships in 2-12 days

0

50

Murray 671285

Adapter, Blade Pulley

$

$

Currently unavailable

80

Murray 671377-860

Frame Assy.

$

$

Currently unavailable

262

Murray 710277

Screw, 5/16-18 x 0.63

$18.99

$

Usually ships in 2-12 days

0

593

Murray 57072

Bolt, 5/16-18x.63 Carr.

$

$

Not available

594

Murray 710288

Nut, Retainer

$

$

Not available

597

Murray 2968

Flatwasher

$3.49

$

Usually ships in 2-12 days

0
