22855x21A - Briggs & Stratton 22" Walk-Behind Mower (1996) (Noma Performance) Handle Assembly Parts Diagram

22" Walk-Behind Mower

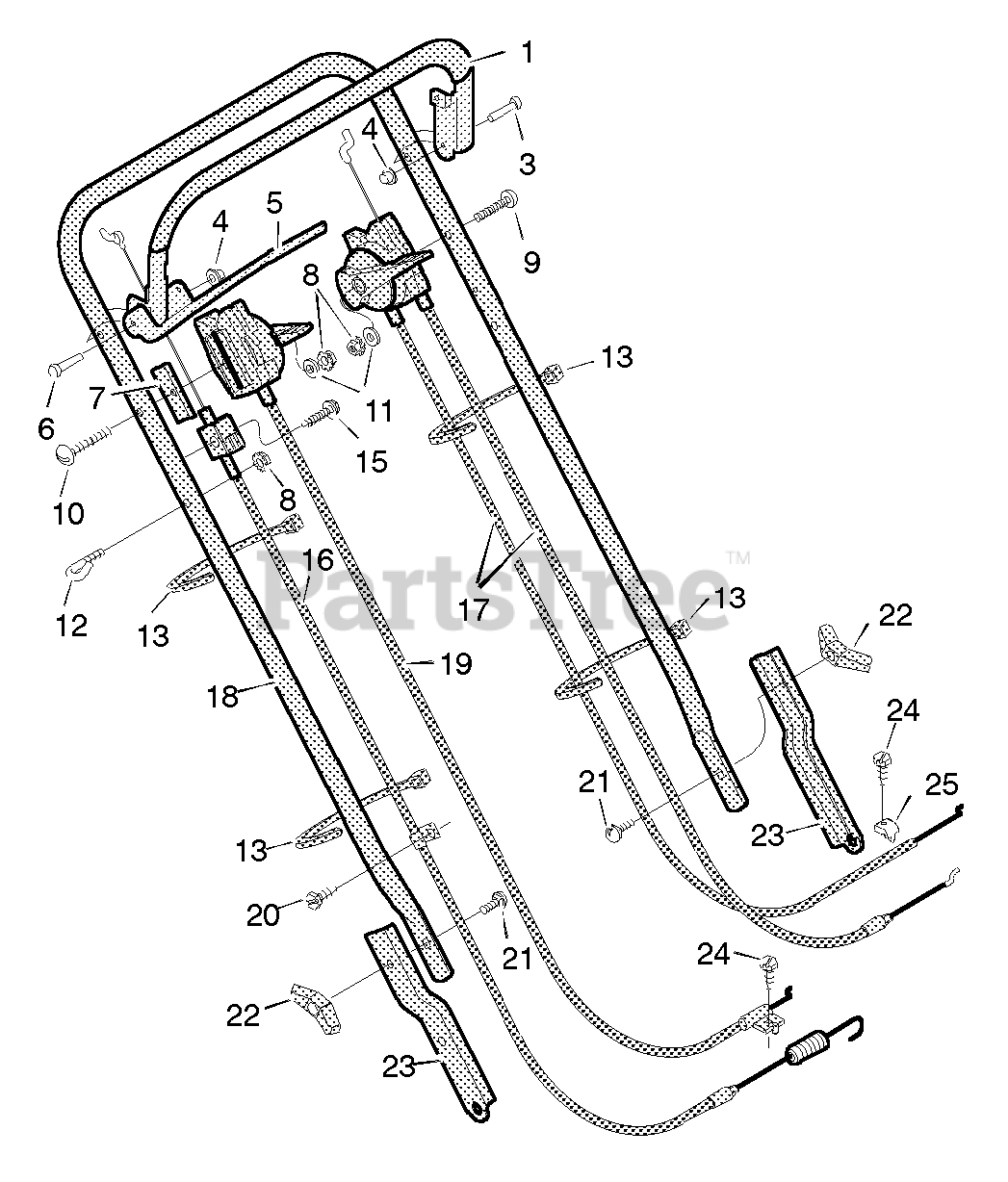

Handle Assembly Parts Diagram

  • Title

1

Murray 071567

Stop Lever

$

$

Currently unavailable

3

Murray 29X101

Pin

$

$

Currently unavailable

4

Murray 028X42MA

Push On Cap

$3.99

$

Usually ships in 2-12 days

0

5

Murray 071566

Lever, Drive

$

$

Currently unavailable

6

Murray 29X101

Pin

$

$

Currently unavailable

7

Murray 071635

Spacer

$

$

Currently unavailable

8

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

9

Murray 01X152MA

Bolt

$3.49

$

Usually ships in 2-12 days

0

10

Murray 01X151

Bolt

$

$

Currently unavailable

11

Murray 017X38 Z

Washer

$

$

Currently unavailable

12

Murray 043956MA

GUIDE, ROPE

$

$

Not available

13

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

15

Murray 26X256MA

Screw

$

$

Not available

16

Murray 071593

Cable, Drive

$

$

Currently unavailable

17

Murray 071594

Throttle and Stop Cable (Briggs 5.5 HP)

$

$

Currently unavailable

--

Murray 071630

Throttle and Stop Cable (Briggs 6 HP)

$

$

Currently unavailable

18

Murray 071713E701MA

Handle (Black)

$103.99

$

Usually ships in 2-12 days

0

--

Murray 071713E724

Handle (Gray)

$

$

Currently unavailable

19

Murray 071595

Control, Speed

$

$

Currently unavailable

20

Murray 26X259MA

Screw

$4.49

$

In Stock, only 4 left!

0

21

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

22

Murray 071495MA

Knob

$4.99

$

In Stock, only 3 left!

0

23

Murray 71317E701

Bracket, Handle (Black)

$

$

Currently unavailable

--

Murray 71317E724

Bracket, Handle (Gray)

$

$

Currently unavailable

24

Murray 26X268MA

Screw

$3.99

$

Usually ships in 2-12 days

0

25

Murray 042294

Clamp

$

$

Not available
