22855x11H - Murray 22" Walk-Behind Mower (2000) Transmission Idler Assembly Parts Diagram

22" Walk-Behind Mower

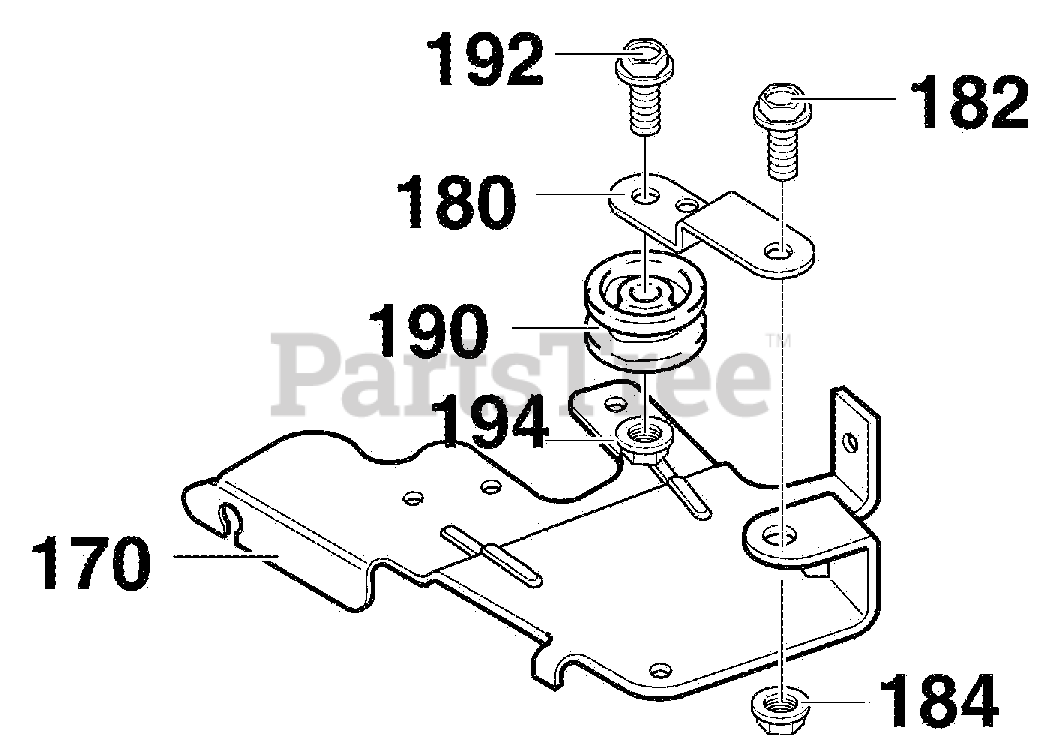

Transmission Idler Assembly Parts Diagram

  • Title
170

Murray MU338842

BRACKET, Transmission

$

$

Currently unavailable

180

Murray MU336480

Idler Arm

$

$

Currently unavailable

182

Murray MU710200

BOLT, HHSH 3/8-16

$

$

Currently unavailable

184

Murray MU710140

NUT, 3/8-16

$

$

Currently unavailable

190

Murray MU671054

PULLEY, Idler

$

$

Currently unavailable

192

Murray MU180080

SCREW, 5/16-18 x 1.13

$

$

Currently unavailable

194

Murray MU710205

NUT, 5/16-18 Wdfllk

$

$

Currently unavailable
